RX57DVE100LS4Detailed Information
Keywords: 5. 5 kw220 volt slower _rx57dve100ls4_rx57drs100l4
RX57DVE100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX57DVE100LS4 | 37.30 | 2.2KW | 38.0rpm | 545N.m | 50kg | 4750N | 0.80 |
| RX57DVE100LS4 | 35.07 | 2.2KW | 41.0rpm | 515N.m | 50kg | 5100N | 0.85 |
| RX57DVE100LS4 | 30.18 | 2.2KW | 47.0rpm | 445N.m | 50kg | 5020N | 1.00 |
| RX57DVE100LS4 | 26.97 | 2.2KW | 53.0rpm | 395N.m | 50kg | 4950N | 1.15 |
| RX57DVE100LS4 | 21.93 | 2.2KW | 65.0rpm | 320N.m | 50kg | 4790N | 1.40 |
| RX57DVE100LS4 | 18.60 | 2.2KW | 77.0rpm | 270N.m | 50kg | 4650N | 1.65 |
| RX57DVE100LS4 | 16.79 | 2.2KW | 85.0rpm | 245N.m | 50kg | 4560N | 1.80 |
| RX57DVE100LS4 | 14.77 | 2.2KW | 96.0rpm | 215N.m | 50kg | 4440N | 2.00 |
| RX57DVE100LS4 | 13.95 | 2.2KW | 102rpm | 205N.m | 50kg | 4380N | 2.10 |
| RX57DVE100LS4 | 11.88 | 2.2KW | 120rpm | 175N.m | 50kg | 4220N | 2.30 |
| RX57DVE100LS4 | 10.79 | 2.2KW | 132rpm | 159N.m | 50kg | 4130N | 2.40 |
| RX57DVE100LS4 | 9.35 | 2.2KW | 152rpm | 138N.m | 50kg | 3980N | 2.70 |
| RX57DVE100LS4 | 9.06 | 2.2KW | 157rpm | 134N.m | 50kg | 3970N | 2.80 |
| RX57DVE100LS4 | 7.97 | 2.2KW | 179rpm | 118N.m | 50kg | 3840N | 3.00 |
Rx57drs100l4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX57DRS100L4 | 26.97 | 3KW | 54.0rpm | 530N.m | 53kg | 4430N | 0.85 |
| RX57DRS100L4 | 21.93 | 3KW | 66.0rpm | 430N.m | 53kg | 4360N | 1.05 |
| RX57DRS100L4 | 18.60 | 3KW | 78.0rpm | 365N.m | 53kg | 4280N | 1.25 |
| RX57DRS100L4 | 16.79 | 3KW | 87.0rpm | 330N.m | 53kg | 4220N | 1.35 |
| RX57DRS100L4 | 14.77 | 3KW | 98.0rpm | 290N.m | 53kg | 4140N | 1.50 |
| RX57DRS100L4 | 13.95 | 3KW | 104rpm | 270N.m | 53kg | 4100N | 1.55 |
| RX57DRS100L4 | 11.88 | 3KW | 122rpm | 230N.m | 53kg | 3980N | 1.75 |
| RX57DRS100L4 | 10.79 | 3KW | 135rpm | 210N.m | 53kg | 3900N | 1.85 |
| RX57DRS100L4 | 9.35 | 3KW | 156rpm | 184N.m | 53kg | 3790N | 2.00 |
| RX57DRS100L4 | 9.06 | 3KW | 161rpm | 178N.m | 53kg | 3780N | 2.10 |
| RX57DRS100L4 | 7.97 | 3KW | 183rpm | 157N.m | 53kg | 3670N | 2.30 |
| RX57DRS100L4 | 7.53 | 3KW | 193rpm | 148N.m | 53kg | 3620N | 2.40 |
| RX57DRS100L4 | 6.41 | 3KW | 227rpm | 126N.m | 53kg | 3480N | 2.60 |
| RX57DRS100L4 | 5.82 | 3KW | 250rpm | 115N.m | 53kg | 3400N | 2.80 |
| RX57DRS100L4 | 5.05 | 3KW | 288rpm | 99N.m | 53kg | 3280N | 3.10 |
| RX57DRS100L4 | 4.39 | 3KW | 331rpm | 86N.m | 53kg | 3160N | 3.20 |
Rx57dve100ls4 power driveType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

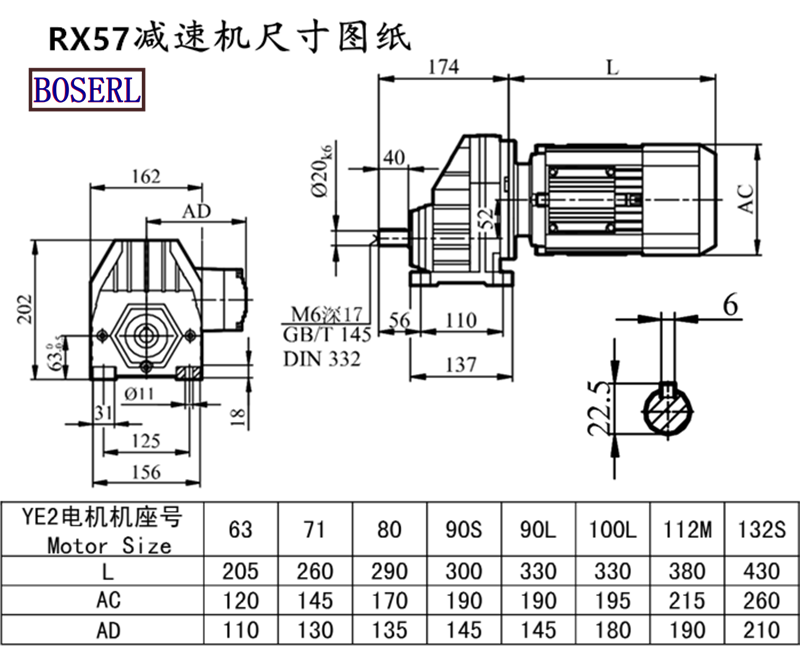

Rx57dve100ls4 power driveInstall size drawings
Rx57dve100ls4 power driveProduction plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
