Rx67 speed reduction motorDetailed Information
Keyword: rx67 deviation electric motion_rx67y0. 12kw_rx67y0. 18kw_rx67 deviation machine_rx67 deviation plant
RX67Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX67Y0.12KW | 199.81 | 0.12KW | 6.9rpm | 166N.m | 30.5kg | 10300N | 3.60 |
| RX67Y0.12KW | 184.07 | 0.12KW | 7.5rpm | 153N.m | 30.5kg | 10400N | 3.90 |
Rx67y0. 18kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX67Y0.18KW | 199.81 | 0.18KW | 6.60rpm | 260N.m | 31kg | 10100N | 2.30 |
| RX67Y0.18KW | 184.07 | 0.18KW | 7.20rpm | 235N.m | 31kg | 10100N | 2.50 |
| RX67Y0.18KW | 158.14 | 0.18KW | 8.40rpm | 205N.m | 31kg | 10200N | 2.90 |
| RX67Y0.18KW | 137.67 | 0.18KW | 9.60rpm | 179N.m | 31kg | 10300N | 3.40 |
| RX67Y0.18KW | 128.97 | 0.18KW | 10.0rpm | 168N.m | 31kg | 10300N | 3.60 |
| RX67Y0.18KW | 113.94 | 0.18KW | 12.0rpm | 148N.m | 31kg | 10400N | 4.00 |
| RX67Y0.18KW | 105.83 | 0.18KW | 12.0rpm | 138N.m | 31kg | 10400N | 4.40 |
Rx67 reduction motor Type:

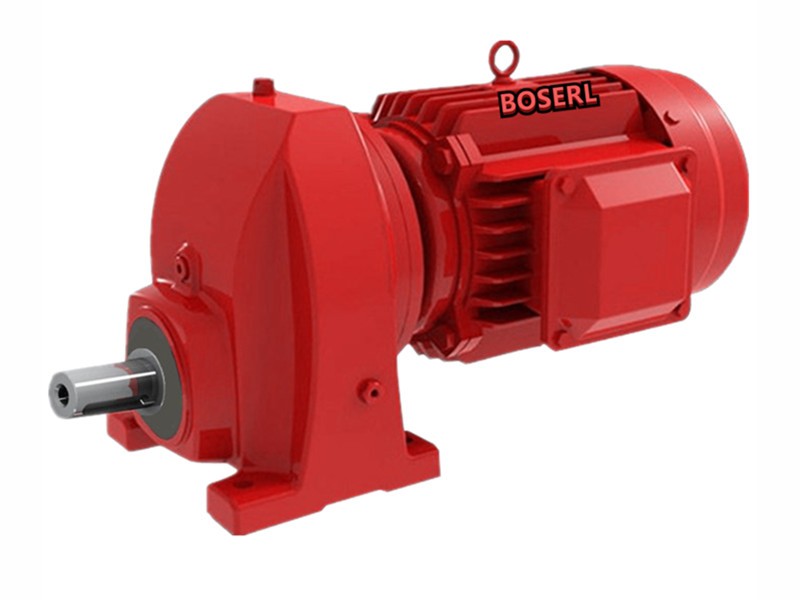

Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction

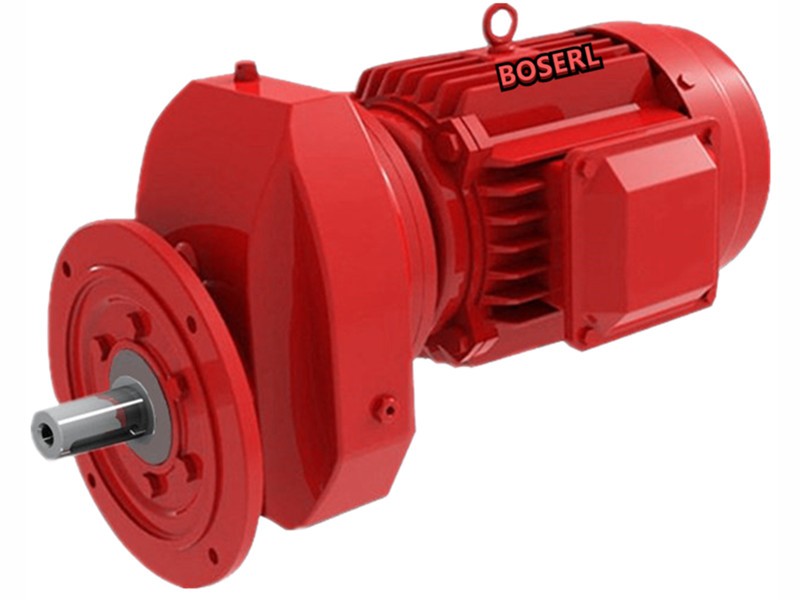

Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

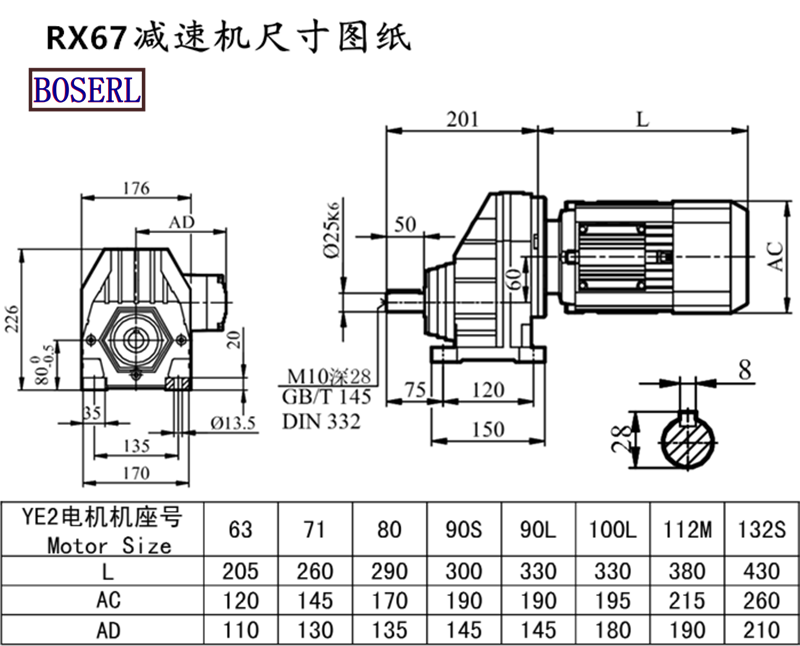

Rx67 reduction motor Install size drawings
Rx67 reduction motor Production plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
