Rx77 motor speed reduction machineDetailed Information
Keyword: rx77 motor reduction machine_rx77y1. 5kw_rx77y2. 2kw_rx77 power drive
RX77Y1.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX77Y1.5KW | 92.97 | 1.5KW | 15rpm | 930N.m | 59kg | 8750N | 0.90 |
| RX77Y1.5KW | 81.80 | 1.5KW | 17rpm | 810N.m | 59kg | 9930N | 1.00 |
| RX77Y1.5KW | 77.24 | 1.5KW | 19rpm | 770N.m | 59kg | 10300N | 1.05 |
| RX77Y1.5KW | 65.77 | 1.5KW | 22rpm | 655N.m | 59kg | 11200N | 1.25 |
| RX77Y1.5KW | 57.68 | 1.5KW | 25rpm | 575N.m | 59kg | 11700N | 1.40 |
| RX77Y1.5KW | 52.07 | 1.5KW | 27rpm | 520N.m | 59kg | 12000N | 1.55 |
| RX77Y1.5KW | 45.81 | 1.5KW | 31rpm | 455N.m | 59kg | 12300N | 1.80 |
| RX77Y1.5KW | 43.26 | 1.5KW | 33rpm | 430N.m | 59kg | 12400N | 1.90 |
| RX77Y1.5KW | 36.83 | 1.5KW | 39rpm | 365N.m | 59kg | 12600N | 2.20 |
| RX77Y1.5KW | 33.47 | 1.5KW | 43rpm | 335N.m | 59kg | 12700N | 2.40 |
| RX77Y1.5KW | 29.00 | 1.5KW | 49rpm | 290N.m | 59kg | 12500N | 2.80 |
| RX77Y1.5KW | 25.23 | 1.5KW | 57rpm | 250N.m | 59kg | 12000N | 3.10 |
| RX77Y1.5KW | 23.37 | 1.5KW | 61rpm | 230N.m | 59kg | 11700N | 3.50 |
| RX77Y1.5KW | 21.43 | 1.5KW | 67rpm | 210N.m | 59kg | 11400N | 3.80 |
| RX77Y1.5KW | 18.80 | 1.5KW | 76rpm | 188N.m | 59kg | 11000N | 4.10 |
Rx77y2. 2kwreducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX77Y2.2KW | 65.77 | 2.2KW | 22rpm | 960N.m | 68kg | 6520N | 0.85 |
| RX77Y2.2KW | 57.68 | 2.2KW | 25rpm | 850N.m | 68kg | 9630N | 0.95 |
| RX77Y2.2KW | 52.07 | 2.2KW | 27rpm | 765N.m | 68kg | 10400N | 1.05 |
| RX77Y2.2KW | 45.81 | 2.2KW | 31rpm | 675N.m | 68kg | 11100N | 1.2 |
| RX77Y2.2KW | 43.26 | 2.2KW | 33rpm | 635N.m | 68kg | 11300N | 1.3 |
| RX77Y2.2KW | 36.83 | 2.2KW | 39rpm | 540N.m | 68kg | 11900N | 1.5 |
| RX77Y2.2KW | 33.47 | 2.2KW | 43rpm | 490N.m | 68kg | 12100N | 1.65 |
| RX77Y2.2KW | 29.00 | 2.2KW | 49rpm | 425N.m | 68kg | 12100N | 1.9 |
| RX77Y2.2KW | 25.23 | 2.2KW | 56rpm | 370N.m | 68kg | 11600N | 2.1 |
| RX77Y2.2KW | 23.37 | 2.2KW | 61rpm | 340N.m | 68kg | 11400N | 2.4 |
| RX77Y2.2KW | 21.43 | 2.2KW | 66rpm | 315N.m | 68kg | 11100N | 2.6 |
| RX77Y2.2KW | 18.80 | 2.2KW | 76rpm | 275N.m | 68kg | 10700N | 2.8 |
| RX77Y2.2KW | 17.82 | 2.2KW | 80rpm | 260N.m | 68kg | 10600N | 3 |
| RX77Y2.2KW | 15.60 | 2.2KW | 91rpm | 225N.m | 68kg | 10200N | 3.2 |
| RX77Y2.2KW | 14.05 | 2.2KW | 101rpm | 205N.m | 68kg | 9880N | 3.5 |
Rx77 motor reduction machineType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

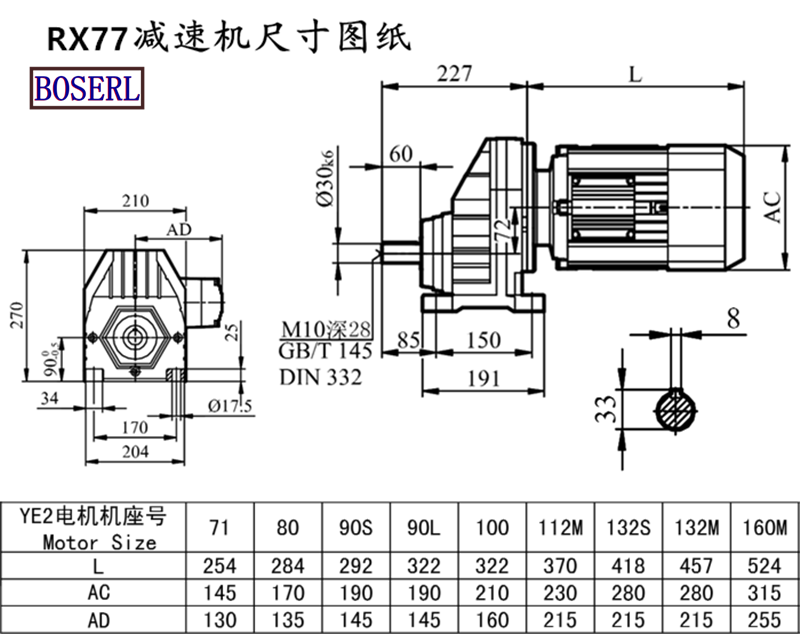

Rx77 motor reduction machineInstall size drawings
Rx77 motor reduction machineProduction plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
