Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Reducer+Motor

RX77DRE100L4Detailed Information

RX77DRE100L4
prevnext

RX77DRE100L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 45kw 3-way motor decelerator_rx77dre100l4_rx77dre100lc4

RX77DRE100L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX77DRE100L445.813KW32rpm900N.m71kg9090N0.90
RX77DRE100L443.263KW34rpm850N.m71kg9620N0.95
RX77DRE100L436.833KW40rpm725N.m71kg10700N1.15
RX77DRE100L433.473KW43rpm655N.m71kg11200N1.25
RX77DRE100L429.003KW50rpm570N.m71kg11600N1.45
RX77DRE100L425.233KW58rpm495N.m71kg11200N1.55
RX77DRE100L423.373KW62rpm460N.m71kg11000N1.80
RX77DRE100L421.433KW68rpm420N.m71kg10700N1.95
RX77DRE100L418.803KW77rpm370N.m71kg10400N2.10
RX77DRE100L417.823KW82rpm350N.m71kg10200N2.20
RX77DRE100L415.603KW93rpm305N.m71kg9880N2.40
RX77DRE100L414.053KW104rpm275N.m71kg9600N2.60
RX77DRE100L412.333KW118rpm240N.m71kg9250N2.80
RX77DRE100L410.883KW134rpm210N.m71kg8930N3.10
RX77DRE100L49.643KW151rpm190N.m71kg8630N3.30
RX77DRE100L48.593KW169rpm169N.m71kg8400N3.70
RX77DRE100L47.743KW188rpm152N.m71kg8150N4.00
RX77DRE100L46.793KW214rpm134N.m71kg7830N4.30

Rx77dre100lc4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX77DRE100LC436.834KW40rpm960N.m82kg7040N0.85
RX77DRE100LC433.474KW44rpm870N.m82kg9370N0.95
RX77DRE100LC429.004KW50rpm755N.m82kg10500N1.1
RX77DRE100LC425.234KW58rpm660N.m82kg10700N1.2
RX77DRE100LC423.374KW62rpm610N.m82kg10500N1.35
RX77DRE100LC421.434KW68rpm560N.m82kg10300N1.45
RX77DRE100LC418.804KW78rpm490N.m82kg10000N1.6
RX77DRE100LC417.824KW82rpm465N.m82kg9880N1.65
RX77DRE100LC415.604KW94rpm405N.m82kg9560N1.80
RX77DRE100LC414.054KW104rpm365N.m82kg9320N1.95
RX77DRE100LC412.334KW118rpm320N.m82kg9010N2.10
RX77DRE100LC410.884KW134rpm280N.m82kg8710N2.30
RX77DRE100LC49.644KW151rpm250N.m82kg8430N2.50
RX77DRE100LC48.594KW170rpm220N.m82kg8250N2.80
RX77DRE100LC47.744KW189rpm200N.m82kg8010N3.00
RX77DRE100LC46.794KW215rpm178N.m82kg7710N3.30
RX77DRE100LC45.994KW244rpm157N.m82kg7430N3.40
RX77DRE100LC45.314KW275rpm139N.m82kg7160N3.70

Rx77dre100l4reducing motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

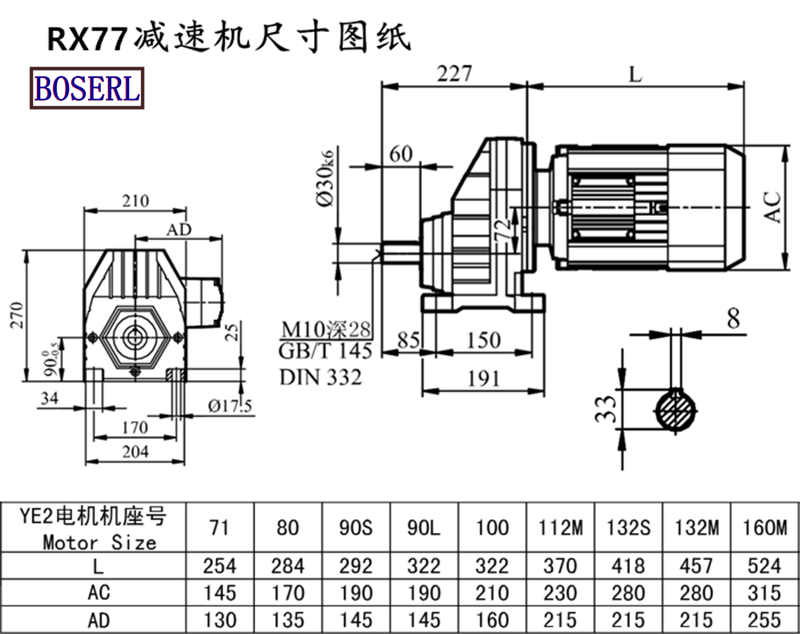

Rx77dre100l4reducing motorInstall size drawings


Horizontal reducer.png

Rx77dre100l4reducing motorProduction plant display: three days' appointment for the factory

Reducer+MotorPresentation of application cases:


Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor

RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared

RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.


标签:  45kw 3-way motor decelerator  rx77dre100l4rrx77dre100lc4
tags： 45kw 3-way motor decelerator    rx77dre100l4rrx77dre100lc4
