Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Reducer+Motor

RX77DRS90L4Detailed Information

RX77DRS90L4
prevnext

RX77DRS90L4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 0. 37 kw 3-way reduction machine_rx77drs90l4_rx77dr90l4

RX77DRS90L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX77DRS90L4166.59
0.75KW8.60rpm830N.m52kg9810N1.00
RX77DRS90L4145.670.75KW9.80rpm725N.m52kg10700N1.15
RX77DRS90L4138.390.75KW10.0rpm690N.m52kg11000N1.20
RX77DRS90L4121.420.75KW12.0rpm605N.m52kg11500N1.35
RX77DRS90L4102.990.75KW14.0rpm510N.m52kg12000N1.60
RX77DRS90L492.970.75KW15.0rpm460N.m52kg12200N1.75
RX77DRS90L481.80.75KW18.0rpm405N.m52kg12500N2.00
RX77DRS90L477.240.75KW19.0rpm385N.m52kg12500N2.10
RX77DRS90L465.770.75KW22.0rpm325N.m52kg12700N2.50
RX77DRS90L457.680.75KW25.0rpm285N.m52kg12800N2.80
RX77DRS90L452.070.75KW28.0rpm255N.m52kg12900N3.20
RX77DRS90L445.810.75KW31.0rpm225N.m52kg13000N3.60
RX77DRS90L443.260.75KW33.0rpm215N.m52kg13000N3.80

Rx77dr90l4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX77DR90L4121.421.1KW12.0rpm890N.m56kg9130N0.90
RX77DR90L4102.991.1KW14.0rpm760N.m56kg10400N1.10
RX77DR90L492.971.1KW15.0rpm685N.m56kg11000N1.20
RX77DR90L481.81.1KW17.0rpm605N.m56kg11500N1.35
RX77DR90L477.241.1KW18.0rpm570N.m56kg11700N1.45
RX77DR90L465.771.1KW22.0rpm485N.m56kg12100N1.70
RX77DR90L457.681.1KW25.0rpm425N.m56kg12400N1.90
RX77DR90L452.071.1KW27.0rpm385N.m56kg12500N2.10
RX77DR90L445.811.1KW31.0rpm335N.m56kg12700N2.40
RX77DR90L443.261.1KW33.0rpm320N.m56kg12700N2.60
RX77DR90L436.831.1KW39.0rpm270N.m56kg12900N3.00
RX77DR90L433.471.1KW42.0rpm245N.m56kg12900N3.30

Rx77drrs90l4 deviatorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

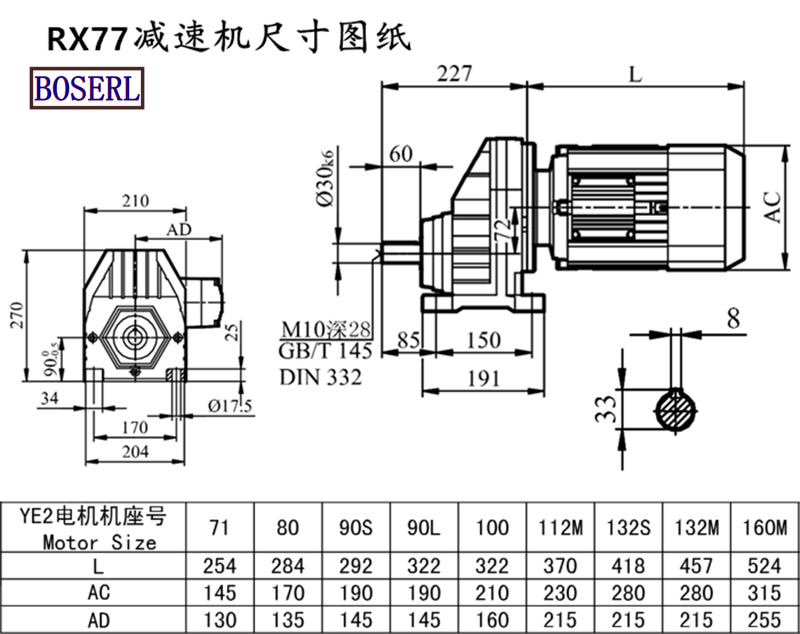

Rx77drrs90l4 deviatorInstall size drawings


Horizontal reducer.png

Rx77drrs90l4 deviatorProduction plant display: three days' appointment for the factory

Reducer+MotorPresentation of application cases:


Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor

RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared

RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.


标签:  0. 37kw 3-way speed-reducing machine rx77drrs90l4rrx77dr90l4
tags： 0. 37kw 3-way speed-reducing machine rx77drrs90l4rrx77dr90l4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
RX77DRS90L4电机减速机样本 Click to download
RX77DRS90L4电机减速机三维图纸 Click to download
