RX77DT90M4Detailed Information
Keyword: 90kw 3-wayreducing machine_rx77dt90m4_rx77drs90m4
RX77DT90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX77DT90M4 | 166.59 | 0.75KW | 8.60rpm | 830N.m | 52kg | 9810N | 1.00 |
| RX77DT90M4 | 145.67 | 0.75KW | 9.80rpm | 725N.m | 52kg | 10700N | 1.15 |
| RX77DT90M4 | 138.39 | 0.75KW | 10.0rpm | 690N.m | 52kg | 11000N | 1.20 |
| RX77DT90M4 | 121.42 | 0.75KW | 12.0rpm | 605N.m | 52kg | 11500N | 1.35 |
| RX77DT90M4 | 102.99 | 0.75KW | 14.0rpm | 510N.m | 52kg | 12000N | 1.60 |
| RX77DT90M4 | 92.97 | 0.75KW | 15.0rpm | 460N.m | 52kg | 12200N | 1.75 |
| RX77DT90M4 | 81.8 | 0.75KW | 18.0rpm | 405N.m | 52kg | 12500N | 2.00 |
| RX77DT90M4 | 77.24 | 0.75KW | 19.0rpm | 385N.m | 52kg | 12500N | 2.10 |
| RX77DT90M4 | 65.77 | 0.75KW | 22.0rpm | 325N.m | 52kg | 12700N | 2.50 |
| RX77DT90M4 | 57.68 | 0.75KW | 25.0rpm | 285N.m | 52kg | 12800N | 2.80 |
| RX77DT90M4 | 52.07 | 0.75KW | 28.0rpm | 255N.m | 52kg | 12900N | 3.20 |
| RX77DT90M4 | 45.81 | 0.75KW | 31.0rpm | 225N.m | 52kg | 13000N | 3.60 |
| RX77DT90M4 | 43.26 | 0.75KW | 33.0rpm | 215N.m | 52kg | 13000N | 3.80 |
Rx77drs90m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX77DRS90M4 | 121.42 | 1.1KW | 12.0rpm | 890N.m | 56kg | 9130N | 0.90 |
| RX77DRS90M4 | 102.99 | 1.1KW | 14.0rpm | 760N.m | 56kg | 10400N | 1.10 |
| RX77DRS90M4 | 92.97 | 1.1KW | 15.0rpm | 685N.m | 56kg | 11000N | 1.20 |
| RX77DRS90M4 | 81.8 | 1.1KW | 17.0rpm | 605N.m | 56kg | 11500N | 1.35 |
| RX77DRS90M4 | 77.24 | 1.1KW | 18.0rpm | 570N.m | 56kg | 11700N | 1.45 |
| RX77DRS90M4 | 65.77 | 1.1KW | 22.0rpm | 485N.m | 56kg | 12100N | 1.70 |
| RX77DRS90M4 | 57.68 | 1.1KW | 25.0rpm | 425N.m | 56kg | 12400N | 1.90 |
| RX77DRS90M4 | 52.07 | 1.1KW | 27.0rpm | 385N.m | 56kg | 12500N | 2.10 |
| RX77DRS90M4 | 45.81 | 1.1KW | 31.0rpm | 335N.m | 56kg | 12700N | 2.40 |
| RX77DRS90M4 | 43.26 | 1.1KW | 33.0rpm | 320N.m | 56kg | 12700N | 2.60 |
| RX77DRS90M4 | 36.83 | 1.1KW | 39.0rpm | 270N.m | 56kg | 12900N | 3.00 |
| RX77DRS90M4 | 33.47 | 1.1KW | 42.0rpm | 245N.m | 56kg | 12900N | 3.30 |
Rx77dt90m4 deviolatorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

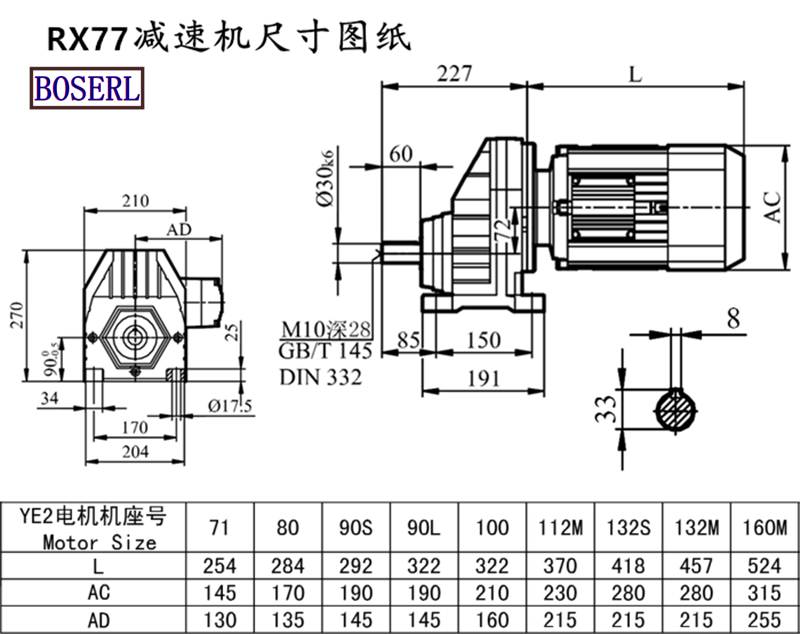

Rx77dt90m4 deviolatorInstall size drawings
Rx77dt90m4 deviolatorProduction plant display: three days' appointment for the factory
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
