RX87DR100M4Detailed Information

RX87DR100M4
prevnext

RX87DR100M4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 0. 75 kilowatt single-photo reduction machine_rx87dr100m4_rx87dve100m4

RX87DR100M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX87DR100M4124.972.2KW11rpm1840N.m96kg11700N0.85
RX87DR100M4118.432.2KW12rpm1740N.m96kg15400N0.9
RX87DR100M4103.652.2KW14rpm1520N.m96kg17100N1
RX87DR100M493.382.2KW15rpm1370N.m96kg18000N1.15
RX87DR100M481.922.2KW17rpm1200N.m96kg18900N1.3
RX87DR100M472.572.2KW20rpm1060N.m96kg19600N1.45
RX87DR100M463.682.2KW22rpm930N.m96kg20000N1.65
RX87DR100M460.352.2KW24rpm880N.m96kg20000N1.75
RX87DR100M452.822.2KW27rpm775N.m96kg20000N2
RX87DR100M447.582.2KW30rpm700N.m96kg20000N2.2
RX87DR100M441.742.2KW34rpm615N.m96kg19800N2.5
RX87DR100M436.842.2KW39rpm540N.m96kg19100N2.8
RX87DR100M432.662.2KW44rpm480N.m96kg18500N3.2
RX87DR100M434.42.2KW41rpm505N.m96kg18800N3
RX87DR100M431.42.2KW45rpm460N.m96kg18300N3.4
RX87DR100M427.842.2KW51rpm410N.m96kg17600N3.8
RX87DR100M423.42.2KW61rpm345N.m96kg16700N4.5
RX87DR100M421.512.2KW66rpm315N.m96kg16300N4.7

Rx87dve100m4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX87DVE100M4246.540.37KW3.7rpm960N.m73.5kg
20000N1.6
RX87DVE100M4216.540.37KW4.2rpm840N.m73.5kg20000N1.85
RX87DVE100M4205.710.37KW4.4rpm800N.m73.5kg
20000N1.95
RX87DVE100M4181.770.37KW5rpm705N.m73.5kg20000N2.2
RX87DVE100M4155.340.37KW5.8rpm605N.m73.5kg
20000N2.6
RX87DVE100M4142.410.37KW6.4rpm555N.m73.5kg20000N2.8

Rx87dr100m4 power-motion deceleratorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

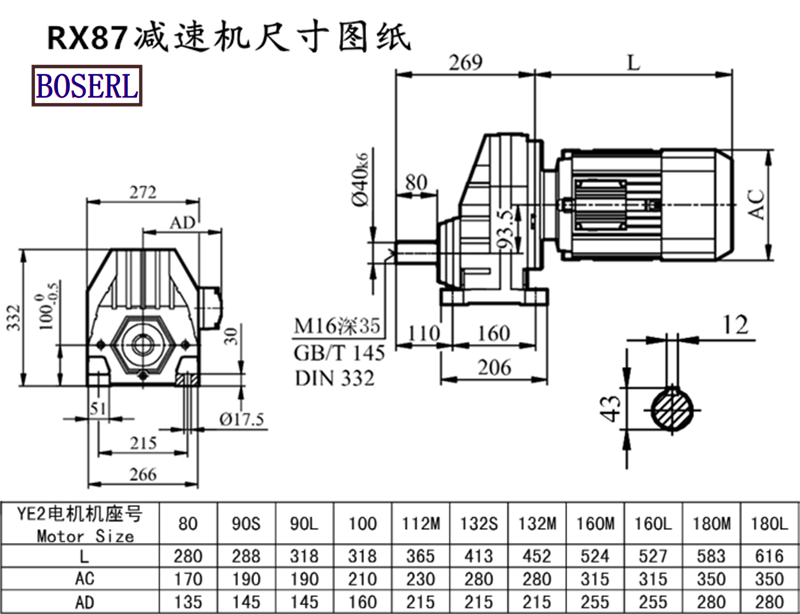

Rx87dr100m4 power-motion deceleratorInstall size drawings


Horizontal reducer.png

Rx87dr100m4 power-motion deceleratorProduction plant display: three days' appointment for the factory

Reducer+MotorPresentation of application cases:


Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor

RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared

RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
