Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Reducer+Motor

RX87DRS100LS4Detailed Information

RX87DRS100LS4
prevnext

RX87DRS100LS4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 0. 55 kw single phase-retarder power _rx87drs100ls4_rx87dt100lc4

RX87DRS100LS4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX87DRS100LS4124.972.2KW11rpm1840N.m96kg11700N0.85
RX87DRS100LS4118.432.2KW12rpm1740N.m96kg15400N0.9
RX87DRS100LS4103.652.2KW14rpm1520N.m96kg17100N1
RX87DRS100LS493.382.2KW15rpm1370N.m96kg18000N1.15
RX87DRS100LS481.922.2KW17rpm1200N.m96kg18900N1.3
RX87DRS100LS472.572.2KW20rpm1060N.m96kg19600N1.45
RX87DRS100LS463.682.2KW22rpm930N.m96kg20000N1.65
RX87DRS100LS460.352.2KW24rpm880N.m96kg20000N1.75
RX87DRS100LS452.822.2KW27rpm775N.m96kg20000N2
RX87DRS100LS447.582.2KW30rpm700N.m96kg20000N2.2
RX87DRS100LS441.742.2KW34rpm615N.m96kg19800N2.5
RX87DRS100LS436.842.2KW39rpm540N.m96kg19100N2.8
RX87DRS100LS432.662.2KW44rpm480N.m96kg18500N3.2
RX87DRS100LS434.42.2KW41rpm505N.m96kg18800N3
RX87DRS100LS431.42.2KW45rpm460N.m96kg18300N3.4
RX87DRS100LS427.842.2KW51rpm410N.m96kg17600N3.8
RX87DRS100LS423.42.2KW61rpm345N.m96kg16700N4.5
RX87DRS100LS421.512.2KW66rpm315N.m96kg16300N4.7

Rx87dt100lc4reducing motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RX87DT100LC4246.540.37KW3.7rpm960N.m73.5kg
20000N1.6
RX87DT100LC4216.540.37KW4.2rpm840N.m73.5kg20000N1.85
RX87DT100LC4205.710.37KW4.4rpm800N.m73.5kg
20000N1.95
RX87DT100LC4181.770.37KW5rpm705N.m73.5kg20000N2.2
RX87DT100LC4155.340.37KW5.8rpm605N.m73.5kg
20000N2.6
RX87DT100LC4142.410.37KW6.4rpm555N.m73.5kg20000N2.8

Rx87drs100ls4 electric motor deceleratorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

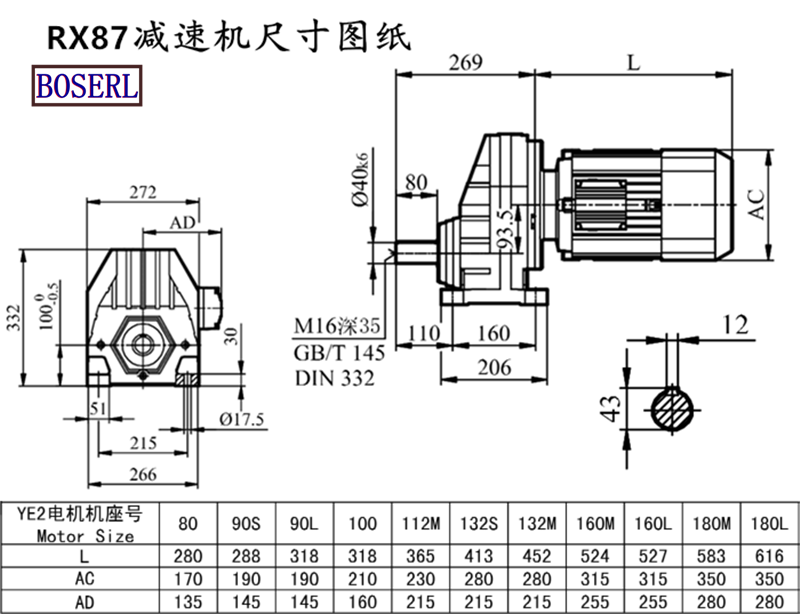

Rx87drs100ls4 electric motor deceleratorInstall size drawings


Horizontal reducer.png

Rx87drs100ls4 electric motor deceleratorProduction plant display: three days' appointment for the factory

Reducer+MotorPresentation of application cases:


Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor

RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared

RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.


标签:  0. 55kw single-phase speed-retarder  rx87drs100ls4 rx87dt100lc4
tags： 0. 55kw single-phase speed-retarder    rx87drs100ls4   rx87dt100lc4
