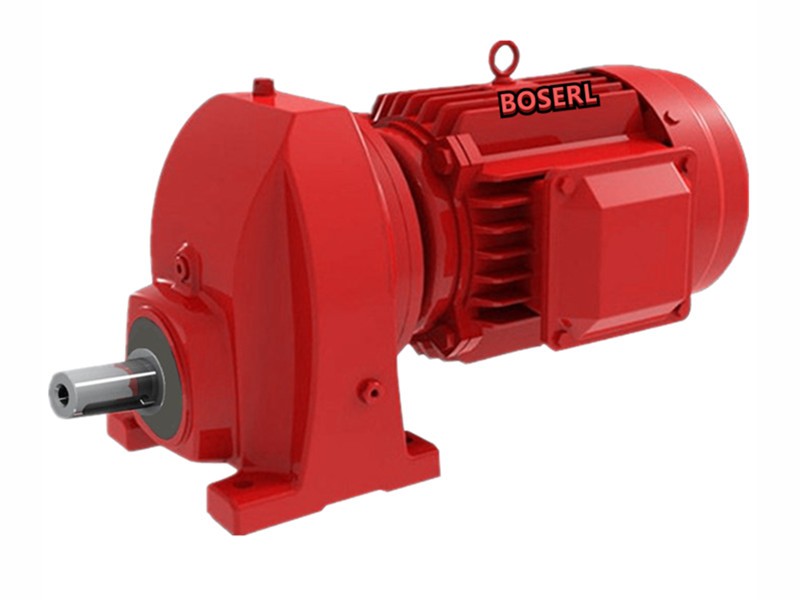

RX87 Reducer motorDetailed Information
Keyword:RX87 reducer motor_RX87Y0.37KW_RX87Y0.55KW_RX87 reducer_RX87 reducer manufacturer
RX87Y0.37KW Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX87Y0.37KW | 246.54 | 0.37KW | 3.7rpm | 960N.m | 73.5kg | 20000N | 1.6 |
| RX87Y0.37KW | 216.54 | 0.37KW | 4.2rpm | 840N.m | 73.5kg | 20000N | 1.85 |
| RX87Y0.37KW | 205.71 | 0.37KW | 4.4rpm | 800N.m | 73.5kg | 20000N | 1.95 |
| RX87Y0.37KW | 181.77 | 0.37KW | 5rpm | 705N.m | 73.5kg | 20000N | 2.2 |
| RX87Y0.37KW | 155.34 | 0.37KW | 5.8rpm | 605N.m | 73.5kg | 20000N | 2.6 |
| RX87Y0.37KW | 142.41 | 0.37KW | 6.4rpm | 555N.m | 73.5kg | 20000N | 2.8 |
Rx87y0. 55kw Reducer motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX87Y0.55KW | 246.54 | 0.55KW | 5.6rpm | 930N.m | 78kg | 20000N | 1.65 |
| RX87Y0.55KW | 216.54 | 0.55KW | 6.4rpm | 820N.m | 78kg | 20000N | 1.9 |
| RX87Y0.55KW | 205.71 | 0.55KW | 6.7rpm | 780N.m | 78kg | 20000N | 2 |
| RX87Y0.55KW | 181.77 | 0.55KW | 7.6rpm | 690N.m | 78kg | 20000N | 2.2 |
| RX87Y0.55KW | 155.34 | 0.55KW | 8.9rpm | 590N.m | 78kg | 20000N | 2.6 |
| RX87Y0.55KW | 142.41 | 0.55KW | 9.7rpm | 540N.m | 78kg | 20000N | 2.9 |
| RX87Y0.55KW | 124.97 | 0.55KW | 11rpm | 475N.m | 78kg | 20000N | 3.3 |
| RX87Y0.55KW | 118.43 | 0.55KW | 12rpm | 450N.m | 78kg | 20000N | 3.4 |
| RX87Y0.55KW | 103.65 | 0.55KW | 13rpm | 390N.m | 78kg | 20000N | 3.9 |
Rx87 Reducer motor Type:
Rx. Dr.single-stage bottom foot with tilt gear-reducing power

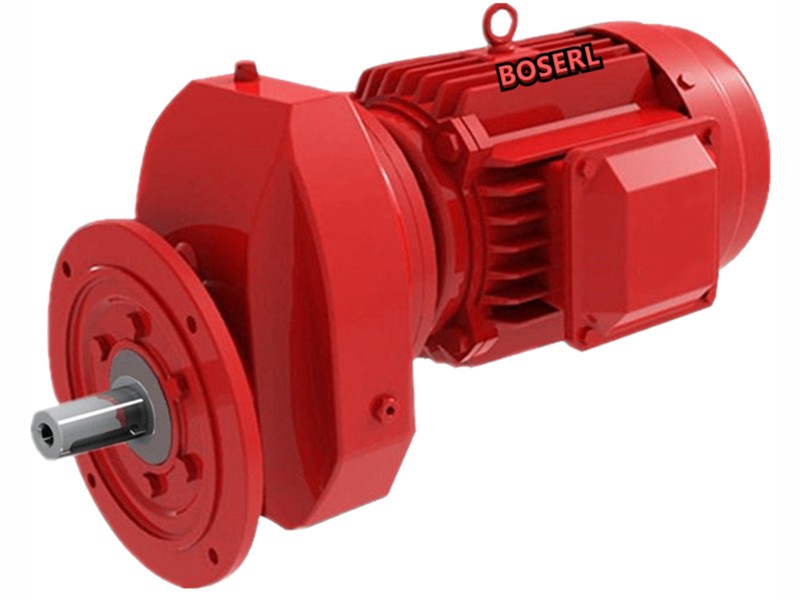

Rxf. Dr.single-level b5 franc installation tilt Motor geared reducer
R. Dr.bottom foot with slash gears
R. F. Dr.bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

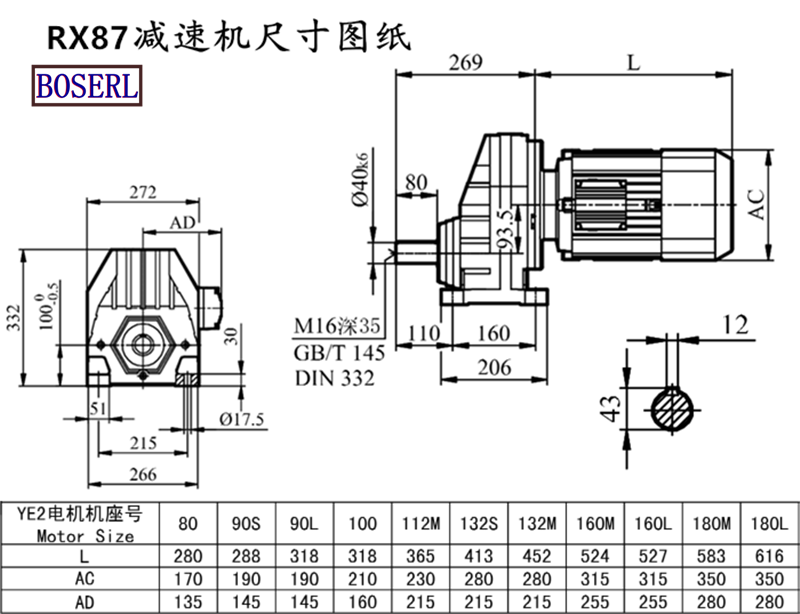

RX87 Reducer motor size drawings
RX87 Reducer motor Producer: Please make an appointment three days in advance Reducer+Motor
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
