RX97DRS71M4Detailed Information
Keywords: 30 kilowatts of singlereducing motors_rx97drs71m4_rx97dr71m4
RX97DRS71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX97DRS71M4 | 289.74 | 0.55kw | 4.8rpm | 1100N.m | 110kg | 28100N | 2.7 |
| RX97DRS71M4 | 255.71 | 0.55kw | 5.4rpm | 970N.m | 110kg | 28200N | 3.1 |
| RX97DRS71M4 | 241.25 | 0.55kw | 5.7rpm | 910N.m | 110kg | 28300N | 3.3 |
| RX97DRS71M4 | 216.28 | 0.55kw | 6.4rpm | 820N.m | 110kg | 28400N | 3.6 |
Rx97dr71m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX97DR71M4 | 289.74 | 0.55kw | 4.8rpm | 1100N.m | 110kg | 28100N | 2.7 |
| RX97DR71M4 | 255.71 | 0.55kw | 5.4rpm | 970N.m | 110kg | 28200N | 3.1 |
| RX97DR71M4 | 241.25 | 0.55kw | 5.7rpm | 910N.m | 110kg | 28300N | 3.3 |
| RX97DR71M4 | 216.28 | 0.55kw | 6.4rpm | 820N.m | 110kg | 28400N | 3.6 |
RX97DRS71M4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

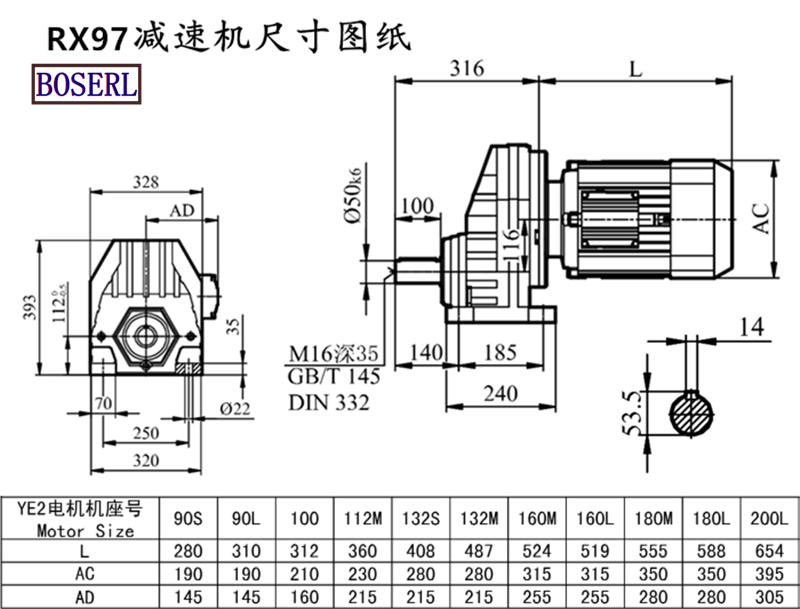

RX97DRS71M4Induction Motor 3Ph motors installed size drawings
RX97DRS71M4At thereducing plant: three days in advance
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: 30 kilowatts single speed reduction power unit rx97drrs71m4rrx97dr71m4
- 上一条RX97DM71M4
- 下一条RX97DV71M4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RX97DRS71M4减速机样本 |
|
| RX97DRS71M4三维图纸 |
|
