RX97DRS80N4Detailed Information
Keywords: 75kw single-line motor reduction machine_rx97drs80n4_rx97dt80n4
RX97DRS80N4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX97DRS80N4 | 289.74 | 0.55kw | 4.8rpm | 1100N.m | 110kg | 27700N | 2.7 |
| RX97DRS80N4 | 255.71 | 0.55kw | 5.4rpm | 970N.m | 110kg | 27900N | 3.1 |
| RX97DRS80N4 | 241.25 | 0.55kw | 5.7rpm | 910N.m | 110kg | 28000N | 3.3 |
| RX97DRS80N4 | 216.28 | 0.55kw | 6.4rpm | 820N.m | 110kg | 28100N | 3.6 |
Rx97dt80n4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RX97DT80N4 | 289.74 | 0.75kw | 4.9rpm | 1470N.m | 110kg | 27700N | 2 |
| RX97DT80N4 | 255.71 | 0.75kw | 5.5rpm | 1290N.m | 110kg | 27900N | 2.3 |
| RX97DT80N4 | 241.25 | 0.75kw | 5.8rpm | 1220N.m | 110kg | 28000N | 2.4 |
| RX97DT80N4 | 216.28 | 0.75kw | 6.5rpm | 1090N.m | 110kg | 28100N | 2.7 |
| RX97DT80N4 | 186.3 | 0.75kw | 7.6rpm | 940N.m | 110kg | 28300N | 3.2 |
| RX97DT80N4 | 170.02 | 0.75kw | 8.3rpm | 860N.m | 110kg | 28300N | 3.5 |
RX97DRS80N4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

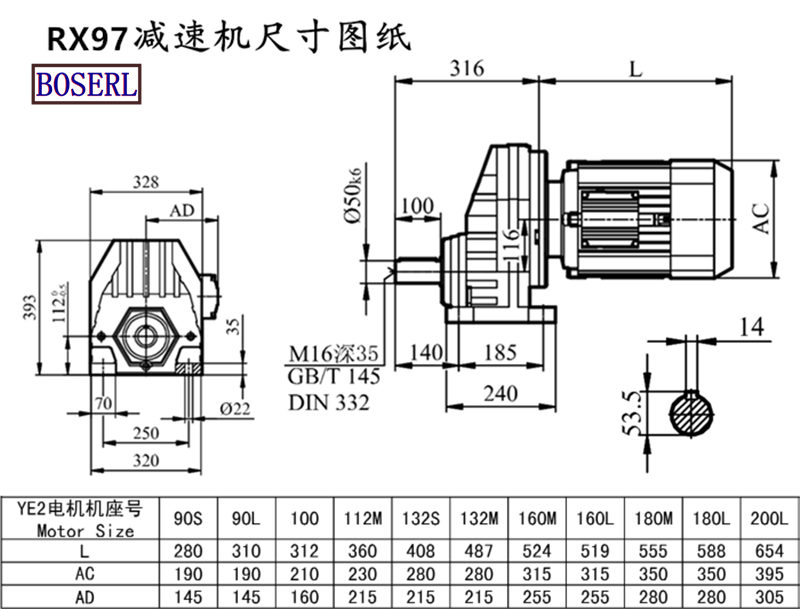

RX97DRS80N4Induction Motor 3Ph motors installed size drawings
RX97DRS80N4At thereducing plant: three days in advance
Reducer+MotorPresentation of application cases:
Reducer+Motor,Gear motor integrated machine,Motor+Reducer Geared motor
RX57 gearbox, RX67 gearbox, RX77 Gear Reducer, RX87 Gear Reducer, RX97 Gear Reducer, RX107 Motor geared
RX series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
