RXF107DRN180LC4Detailed Information
Keywords: 2. 2 kw singleretarder _ rxf107drn180lc4_rxf107dve180lc4
RXF107DRN180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF107DRN180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| RXF107DRN180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| RXF107DRN180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| RXF107DRN180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| RXF107DRN180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| RXF107DRN180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| RXF107DRN180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| RXF107DRN180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| RXF107DRN180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| RXF107DRN180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| RXF107DRN180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| RXF107DRN180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| RXF107DRN180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| RXF107DRN180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
Rxf107dve180lc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF107DVE180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| RXF107DVE180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| RXF107DVE180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| RXF107DVE180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| RXF107DVE180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| RXF107DVE180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| RXF107DVE180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| RXF107DVE180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| RXF107DVE180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| RXF107DVE180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| RXF107DVE180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| RXF107DVE180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| RXF107DVE180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| RXF107DVE180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
RXF107DRN180LC4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

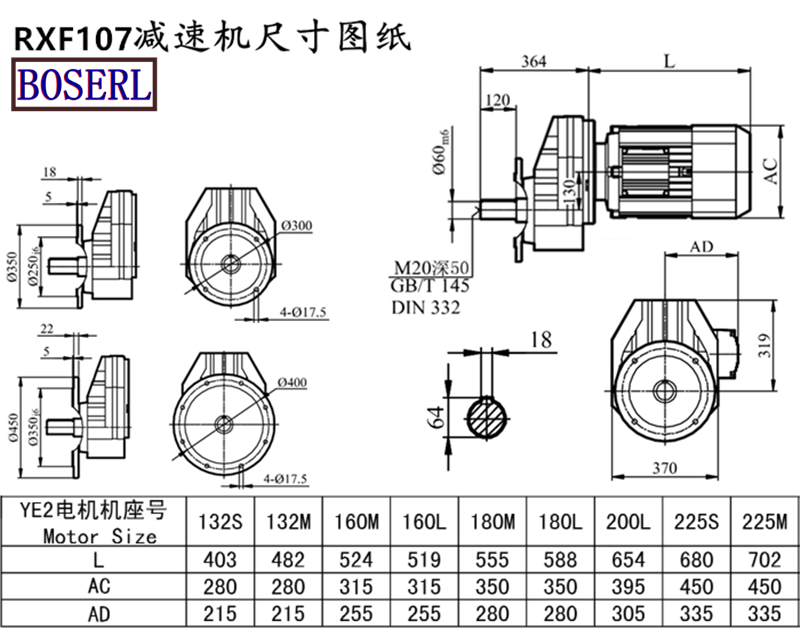

RXF107DRN180LC4Induction Motor 3Ph motors installed size drawings
RXF107DRN180LC4At thereducing plant: three days in advance
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
