Rxf57 deviatorDetailed Information
Keywords: rxf57 deviator_rxf57y7. 5kw_rxf57y63m4_rxf57 deviator electrician
RXF57Y7.5KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF57Y7.5KW | 7.97 | 7.5KW | 184rpm | 385N.m | 91kg | 1130N | 0.90 |
| RXF57Y7.5KW | 7.53 | 7.5KW | 195rpm | 365N.m | 91kg | 1420N | 0.95 |
| RXF57Y7.5KW | 6.41 | 7.5KW | 229rpm | 310N.m | 91kg | 2130N | 1.05 |
| RXF57Y7.5KW | 5.82 | 7.5KW | 252rpm | 280N.m | 91kg | 2470N | 1.15 |
| RXF57Y7.5KW | 5.05 | 7.5KW | 291rpm | 245N.m | 91kg | 2750N | 1.25 |
| RXF57Y7.5KW | 4.39 | 7.5KW | 335rpm | 210N.m | 91kg | 2800N | 1.30 |
Rxf57y63m4reducing motor parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF57Y63M4 | 186.89 | 0.12KW | 7.40rpm | 155N.m | 23.5kg | 7920N | 2.90 |
| RXF57Y63M4 | 172.17 | 0.12KW | 8.00rpm | 143N.m | 23.5kg | 7940N | 3.20 |
| RXF57Y63M4 | 147.92 | 0.12KW | 9.30rpm | 123N.m | 23.5kg | 7960N | 3.70 |
| RXF57Y63M4 | 128.77 | 0.12KW | 11.0rpm | 107N.m | 23.5kg | 7980N | 4.20 |
Rxf57 deviatorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

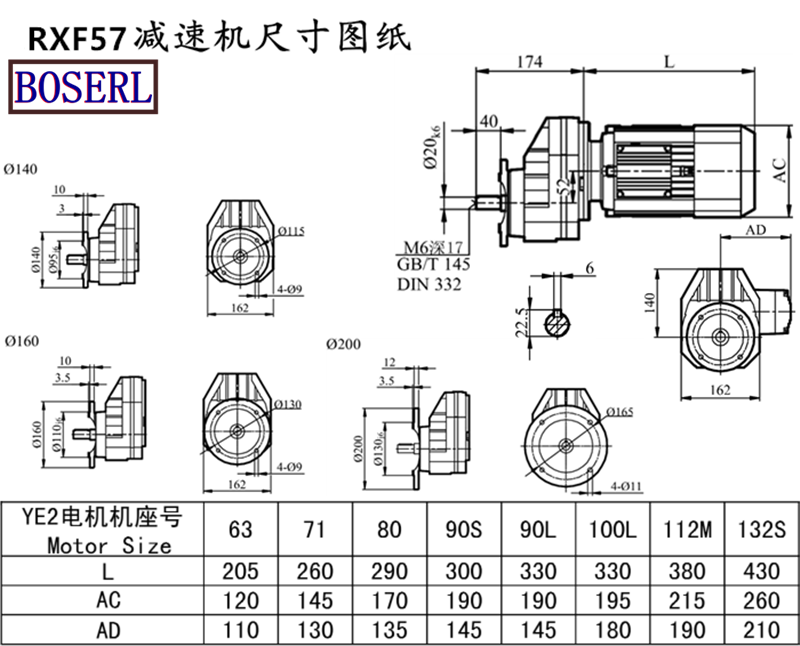

Rxf57 deviatorInstall size drawings
Rxf57 deviatorProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: Rxf57 deviator rxf57y7. 5kw rxf57y63m4rrxf57 deviator rxf57 deviator powermaker rxf57 deviator powermaker
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RXF57电机减速器样本 |
|
| RXF57电机减速器三维图纸 |
|
