RXF57DR100LS4Detailed Information
Keywords: 11 kwh of motor-retarder unit _rxf57dr100ls4_rxf57drrn100l4
RXF57DR100LS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF57DR100LS4 | 37.30 | 2.2KW | 38.0rpm | 545N.m | 50kg | 4750N | 0.80 |
| RXF57DR100LS4 | 35.07 | 2.2KW | 41.0rpm | 515N.m | 50kg | 5100N | 0.85 |
| RXF57DR100LS4 | 30.18 | 2.2KW | 47.0rpm | 445N.m | 50kg | 5020N | 1.00 |
| RXF57DR100LS4 | 26.97 | 2.2KW | 53.0rpm | 395N.m | 50kg | 4950N | 1.15 |
| RXF57DR100LS4 | 21.93 | 2.2KW | 65.0rpm | 320N.m | 50kg | 4790N | 1.40 |
| RXF57DR100LS4 | 18.60 | 2.2KW | 77.0rpm | 270N.m | 50kg | 4650N | 1.65 |
| RXF57DR100LS4 | 16.79 | 2.2KW | 85.0rpm | 245N.m | 50kg | 4560N | 1.80 |
| RXF57DR100LS4 | 14.77 | 2.2KW | 96.0rpm | 215N.m | 50kg | 4440N | 2.00 |
| RXF57DR100LS4 | 13.95 | 2.2KW | 102rpm | 205N.m | 50kg | 4380N | 2.10 |
| RXF57DR100LS4 | 11.88 | 2.2KW | 120rpm | 175N.m | 50kg | 4220N | 2.30 |
| RXF57DR100LS4 | 10.79 | 2.2KW | 132rpm | 159N.m | 50kg | 4130N | 2.40 |
| RXF57DR100LS4 | 9.35 | 2.2KW | 152rpm | 138N.m | 50kg | 3980N | 2.70 |
| RXF57DR100LS4 | 9.06 | 2.2KW | 157rpm | 134N.m | 50kg | 3970N | 2.80 |
| RXF57DR100LS4 | 7.97 | 2.2KW | 179rpm | 118N.m | 50kg | 3840N | 3.00 |
Rxf57drn100l4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF57DRN100L4 | 26.97 | 3KW | 54.0rpm | 530N.m | 53kg | 4430N | 0.85 |
| RXF57DRN100L4 | 21.93 | 3KW | 66.0rpm | 430N.m | 53kg | 4360N | 1.05 |
| RXF57DRN100L4 | 18.60 | 3KW | 78.0rpm | 365N.m | 53kg | 4280N | 1.25 |
| RXF57DRN100L4 | 16.79 | 3KW | 87.0rpm | 330N.m | 53kg | 4220N | 1.35 |
| RXF57DRN100L4 | 14.77 | 3KW | 98.0rpm | 290N.m | 53kg | 4140N | 1.50 |
| RXF57DRN100L4 | 13.95 | 3KW | 104rpm | 270N.m | 53kg | 4100N | 1.55 |
| RXF57DRN100L4 | 11.88 | 3KW | 122rpm | 230N.m | 53kg | 3980N | 1.75 |
| RXF57DRN100L4 | 10.79 | 3KW | 135rpm | 210N.m | 53kg | 3900N | 1.85 |
| RXF57DRN100L4 | 9.35 | 3KW | 156rpm | 184N.m | 53kg | 3790N | 2.00 |
| RXF57DRN100L4 | 9.06 | 3KW | 161rpm | 178N.m | 53kg | 3780N | 2.10 |
| RXF57DRN100L4 | 7.97 | 3KW | 183rpm | 157N.m | 53kg | 3670N | 2.30 |
| RXF57DRN100L4 | 7.53 | 3KW | 193rpm | 148N.m | 53kg | 3620N | 2.40 |
| RXF57DRN100L4 | 6.41 | 3KW | 227rpm | 126N.m | 53kg | 3480N | 2.60 |
| RXF57DRN100L4 | 5.82 | 3KW | 250rpm | 115N.m | 53kg | 3400N | 2.80 |
| RXF57DRN100L4 | 5.05 | 3KW | 288rpm | 99N.m | 53kg | 3280N | 3.10 |
| RXF57DRN100L4 | 4.39 | 3KW | 331rpm | 86N.m | 53kg | 3160N | 3.20 |
Rxf57dr100ls4reducing motorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

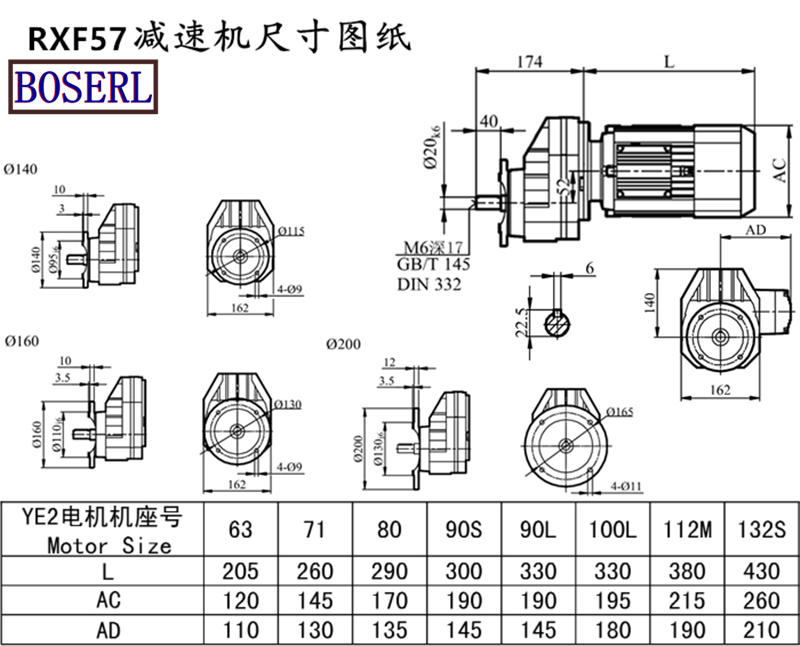

Rxf57dr100ls4reducing motorInstall size drawings
Rxf57dr100ls4reducing motorProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
