RXF67DVE63L4Detailed Information
Keyword: 55 kilowatt single-way decelerator electric power _rxf67dve63l4_rxf67dre63l4
RXF67DVE63L4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF67DVE63L4 | 199.81 | 0.12KW | 6.9rpm | 166N.m | 30.5kg | 10300N | 3.60 |
| RXF67DVE63L4 | 184.07 | 0.12KW | 7.5rpm | 153N.m | 30.5kg | 10400N | 3.90 |
Rxf67dre63l4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF67DRE63L4 | 199.81 | 0.18KW | 6.60rpm | 260N.m | 31kg | 10100N | 2.30 |
| RXF67DRE63L4 | 184.07 | 0.18KW | 7.20rpm | 235N.m | 31kg | 10100N | 2.50 |
| RXF67DRE63L4 | 158.14 | 0.18KW | 8.40rpm | 205N.m | 31kg | 10200N | 2.90 |
| RXF67DRE63L4 | 137.67 | 0.18KW | 9.60rpm | 179N.m | 31kg | 10300N | 3.40 |
| RXF67DRE63L4 | 128.97 | 0.18KW | 10.0rpm | 168N.m | 31kg | 10300N | 3.60 |
| RXF67DRE63L4 | 113.94 | 0.18KW | 12.0rpm | 148N.m | 31kg | 10400N | 4.00 |
| RXF67DRE63L4 | 105.83 | 0.18KW | 12.0rpm | 138N.m | 31kg | 10400N | 4.40 |
Rxf67dve63l4 deviation engineType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

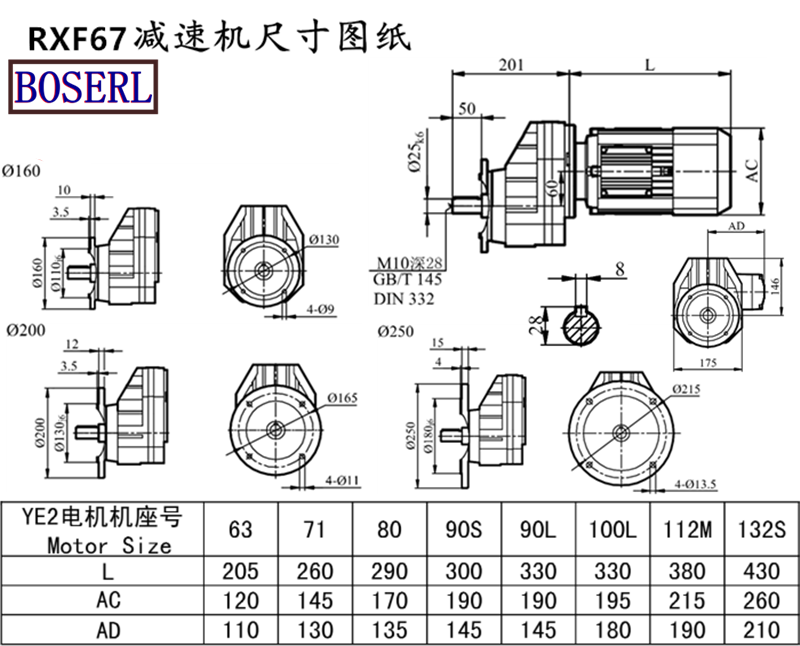

Rxf67dve63l4 deviation engineInstall size drawings
Rxf67dve63l4 deviation engineProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
