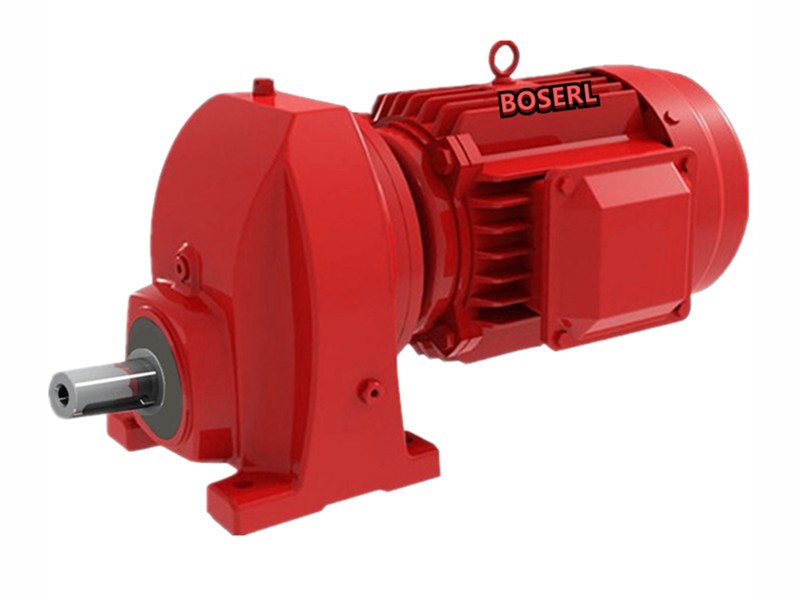

Rxf67 speed reduction motorDetailed Information
Keyword: rxf67 reduction engine _rxf67y0. 12kw_rxf67y0. 18kw_rxf67 reduction machine _rxf67 reduction plant
RXF67Y0.12KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF67Y0.12KW | 199.81 | 0.12KW | 6.9rpm | 166N.m | 30.5kg | 10300N | 3.60 |
| RXF67Y0.12KW | 184.07 | 0.12KW | 7.5rpm | 153N.m | 30.5kg | 10400N | 3.90 |
Rxf67y0. 18kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF67Y0.18KW | 199.81 | 0.18KW | 6.60rpm | 260N.m | 31kg | 10100N | 2.30 |
| RXF67Y0.18KW | 184.07 | 0.18KW | 7.20rpm | 235N.m | 31kg | 10100N | 2.50 |
| RXF67Y0.18KW | 158.14 | 0.18KW | 8.40rpm | 205N.m | 31kg | 10200N | 2.90 |
| RXF67Y0.18KW | 137.67 | 0.18KW | 9.60rpm | 179N.m | 31kg | 10300N | 3.40 |
| RXF67Y0.18KW | 128.97 | 0.18KW | 10.0rpm | 168N.m | 31kg | 10300N | 3.60 |
| RXF67Y0.18KW | 113.94 | 0.18KW | 12.0rpm | 148N.m | 31kg | 10400N | 4.00 |
| RXF67Y0.18KW | 105.83 | 0.18KW | 12.0rpm | 138N.m | 31kg | 10400N | 4.40 |
Rxf67 reduction motor Type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

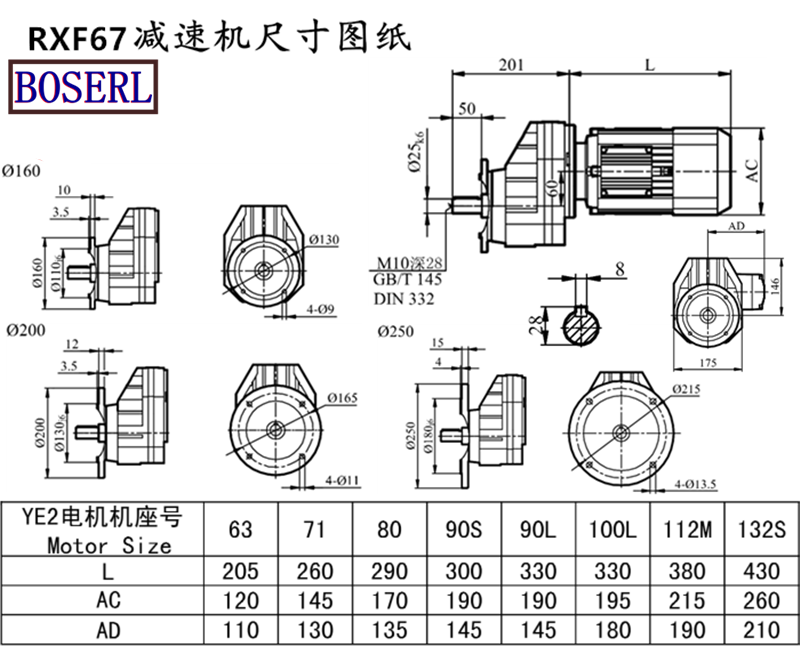

Rxf67 reduction motor Install size drawings
Rxf67 reduction motor Production plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: Rxf67 speeding engine rxf67y 0. 12 kw rxf67y 0. 18 kw rxf67 speed deviation machine rxf67 speed deviation plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RXF67减速机电动机样本 |
|
| RXF67减速机电动机三维图纸 |
|
