RXF77DR132MC4Detailed Information
Keywords: 0. 25 kilowatt single-way motor decelerator_rxf77dr132mc4_rxf77dr132ml4
RXF77DR132MC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF77DR132MC4 | 18.80 | 5.5KW | 77rpm | 675N.m | 96kg | 9300N | 1.15 |
| RXF77DR132MC4 | 17.82 | 5.5KW | 82rpm | 640N.m | 96kg | 9370N | 1.20 |
| RXF77DR132MC4 | 15.60 | 5.5KW | 93rpm | 560N.m | 96kg | 9120N | 1.30 |
| RXF77DR132MC4 | 14.05 | 5.5KW | 104rpm | 505N.m | 96kg | 8920N | 1.40 |
| RXF77DR132MC4 | 12.33 | 5.5KW | 118rpm | 440N.m | 96kg | 8650N | 1.55 |
| RXF77DR132MC4 | 10.88 | 5.5KW | 134rpm | 390N.m | 96kg | 8400N | 1.70 |
| RXF77DR132MC4 | 9.64 | 5.5KW | 151rpm | 345N.m | 96kg | 8160N | 1.80 |
| RXF77DR132MC4 | 8.59 | 5.5KW | 169rpm | 310N.m | 96kg | 8040N | 2.00 |
| RXF77DR132MC4 | 7.74 | 5.5KW | 188rpm | 275N.m | 96kg | 7820N | 2.20 |
| RXF77DR132MC4 | 6.79 | 5.5KW | 214rpm | 245N.m | 96kg | 7540N | 2.40 |
| RXF77DR132MC4 | 5.99 | 5.5KW | 243rpm | 215N.m | 96kg | 7280N | 2.50 |
| RXF77DR132MC4 | 5.31 | 5.5KW | 274rpm | 192N.m | 96kg | 7040N | 2.70 |
Rxf77dr132ml4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF77DR132ML4 | 18.80 | 7.5KW | 78rpm | 910N.m | 109kg | 5530N | 0.85 |
| RXF77DR132ML4 | 17.82 | 7.5KW | 82rpm | 860N.m | 109kg | 5920N | 0.90 |
| RXF77DR132ML4 | 15.60 | 7.5KW | 94rpm | 755N.m | 109kg | 6770N | 0.95 |
| RXF77DR132ML4 | 14.05 | 7.5KW | 105rpm | 680N.m | 109kg | 7310N | 1.05 |
| RXF77DR132ML4 | 12.33 | 7.5KW | 119rpm | 600N.m | 109kg | 7850N | 1.15 |
| RXF77DR132ML4 | 10.88 | 7.5KW | 135rpm | 525N.m | 109kg | 7960N | 1.25 |
| RXF77DR132ML4 | 9.64 | 7.5KW | 152rpm | 465N.m | 109kg | 7770N | 1.35 |
| RXF77DR132ML4 | 8.59 | 7.5KW | 171rpm | 415N.m | 109kg | 7690N | 1.50 |
| RXF77DR132ML4 | 7.74 | 7.5KW | 190rpm | 375N.m | 109kg | 7540N | 1.60 |
| RXF77DR132ML4 | 6.79 | 7.5KW | 216rpm | 330N.m | 109kg | 7290N | 1.75 |
| RXF77DR132ML4 | 5.99 | 7.5KW | 245rpm | 290N.m | 109kg | 7060N | 1.85 |
| RXF77DR132ML4 | 5.31 | 7.5KW | 277rpm | 255N.m | 109kg | 6840N | 1.95 |
Rxf77dr132mc4 gearboxType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

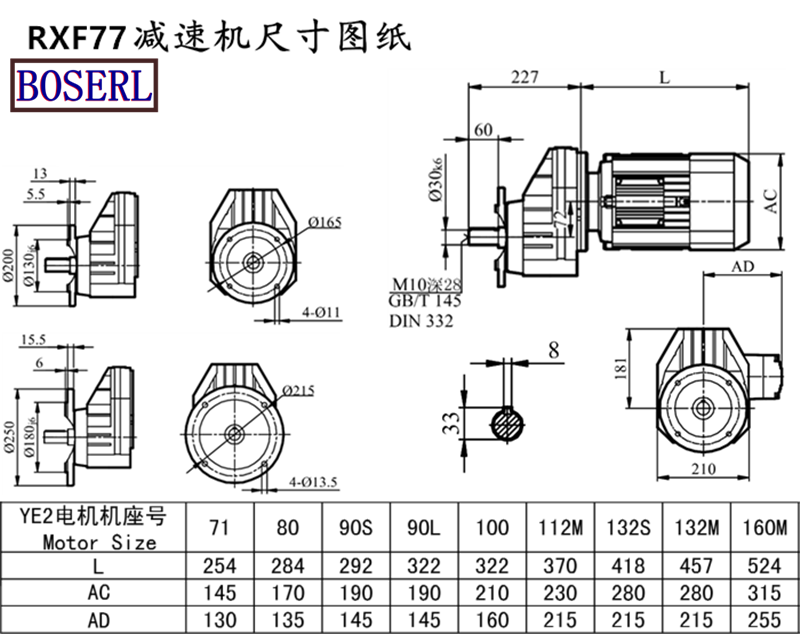

Rxf77dr132mc4 gearboxInstall size drawings
Rxf77dr132mc4 gearboxProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: 0. 25 kilowatt single-way motor speed reduction rxf77dr132mc4 rxf77dr132ml4
- 上一条RXF77DM132ML4
- 下一条RXF77DRE132MC4
