RXF77DT80M4Detailed Information
Keyword: 45 kilowatt three-way decelerator power _ rxf77dt80m4_rxf77drs80m4
RXF77DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF77DT80M4 | 166.59 | 0.75KW | 8.60rpm | 830N.m | 52kg | 9810N | 1.00 |
| RXF77DT80M4 | 145.67 | 0.75KW | 9.80rpm | 725N.m | 52kg | 10700N | 1.15 |
| RXF77DT80M4 | 138.39 | 0.75KW | 10.0rpm | 690N.m | 52kg | 11000N | 1.20 |
| RXF77DT80M4 | 121.42 | 0.75KW | 12.0rpm | 605N.m | 52kg | 11500N | 1.35 |
| RXF77DT80M4 | 102.99 | 0.75KW | 14.0rpm | 510N.m | 52kg | 12000N | 1.60 |
| RXF77DT80M4 | 92.97 | 0.75KW | 15.0rpm | 460N.m | 52kg | 12200N | 1.75 |
| RXF77DT80M4 | 81.8 | 0.75KW | 18.0rpm | 405N.m | 52kg | 12500N | 2.00 |
| RXF77DT80M4 | 77.24 | 0.75KW | 19.0rpm | 385N.m | 52kg | 12500N | 2.10 |
| RXF77DT80M4 | 65.77 | 0.75KW | 22.0rpm | 325N.m | 52kg | 12700N | 2.50 |
| RXF77DT80M4 | 57.68 | 0.75KW | 25.0rpm | 285N.m | 52kg | 12800N | 2.80 |
| RXF77DT80M4 | 52.07 | 0.75KW | 28.0rpm | 255N.m | 52kg | 12900N | 3.20 |
| RXF77DT80M4 | 45.81 | 0.75KW | 31.0rpm | 225N.m | 52kg | 13000N | 3.60 |
| RXF77DT80M4 | 43.26 | 0.75KW | 33.0rpm | 215N.m | 52kg | 13000N | 3.80 |
Rxf77drs80m4 deviation machine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF77DRS80M4 | 121.42 | 1.1KW | 12.0rpm | 890N.m | 9130N | 0.90 | |
| RXF77DRS80M4 | 102.99 | 1.1KW | 14.0rpm | 760N.m | 10400N | 1.10 | |
| RXF77DRS80M4 | 92.97 | 1.1KW | 15.0rpm | 685N.m | 11000N | 1.20 | |
| RXF77DRS80M4 | 81.8 | 1.1KW | 17.0rpm | 605N.m | 11500N | 1.35 | |
| RXF77DRS80M4 | 77.24 | 1.1KW | 18.0rpm | 570N.m | 11700N | 1.45 | |
| RXF77DRS80M4 | 65.77 | 1.1KW | 22.0rpm | 485N.m | 12100N | 1.70 | |
| RXF77DRS80M4 | 57.68 | 1.1KW | 25.0rpm | 425N.m | 12400N | 1.90 | |
| RXF77DRS80M4 | 52.07 | 1.1KW | 27.0rpm | 385N.m | 12500N | 2.10 | |
| RXF77DRS80M4 | 45.81 | 1.1KW | 31.0rpm | 335N.m | 12700N | 2.40 | |
| RXF77DRS80M4 | 43.26 | 1.1KW | 33.0rpm | 320N.m | 12700N | 2.60 | |
| RXF77DRS80M4 | 36.83 | 1.1KW | 39.0rpm | 270N.m | 12900N | 3.00 | |
| RXF77DRS80M4 | 33.47 | 1.1KW | 42.0rpm | 245N.m | 12900N | 3.30 |
Rxf77dt80m4 deviatorsType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

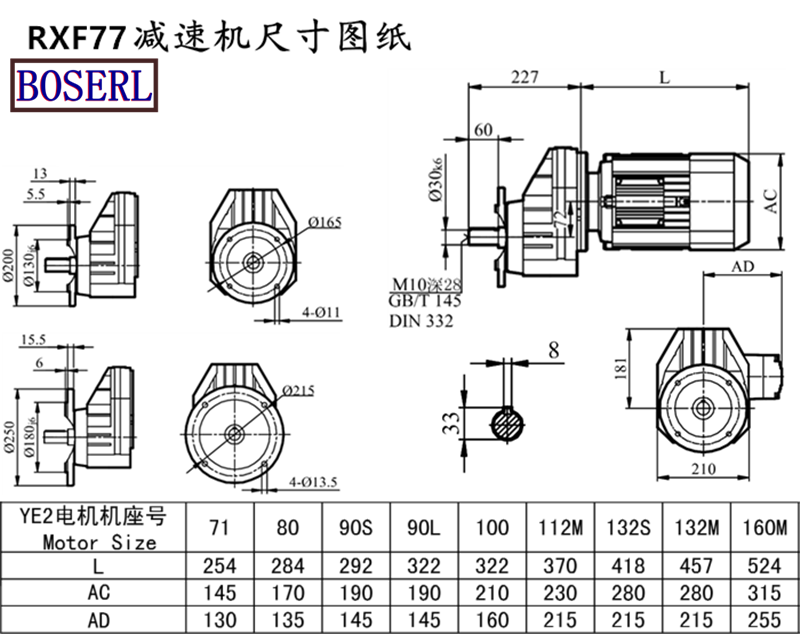

Rxf77dt80m4 deviatorsInstall size drawings
Rxf77dt80m4 deviatorsProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: 45 kilowatt three-way brake power rxf77dt80m4 rxf77drs80m4
- 上一条RXF77DV80S4
- 下一条RXF77DVE80S4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| RXF77DT80M4电机减速机样本 |
|
| RXF77DT80M4电机减速机三维图纸 |
|
