RXF87DR112M4Detailed Information

RXF87DR112M4
prevnext

RXF87DR112M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 200 kw single-phase-retarder _ rxf87dr112m4_rxf87dve112m4

RXF87DR112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DR112M493.383KW16rpm1830N.m98kg12000N0.85
RXF87DR112M481.923KW18rpm1610N.m98kg16500N0.95
RXF87DR112M472.573KW20rpm1420N.m98kg17700N1.1
RXF87DR112M463.683KW23rpm1250N.m98kg18700N1.25
RXF87DR112M460.353KW24rpm1180N.m98kg19000N1.3
RXF87DR112M452.823KW28rpm1030N.m98kg19700N1.5
RXF87DR112M447.583KW31rpm930N.m98kg19800N1.65
RXF87DR112M441.743KW35rpm820N.m98kg19200N1.9
RXF87DR112M436.843KW40rpm725N.m98kg18500N2.1
RXF87DR112M432.663KW45rpm640N.m98kg17900N2.4
RXF87DR112M427.883KW52rpm545N.m98kg17200N2.7
RXF87DR112M434.43KW42rpm675N.m98kg18200N2.2
RXF87DR112M431.43KW46rpm615N.m98kg17800N2.5
RXF87DR112M427.843KW52rpm545N.m98kg17200N2.8
RXF87DR112M423.43KW62rpm460N.m98kg16300N3.4
RXF87DR112M421.513KW68rpm420N.m98kg15900N3.5
RXF87DR112M419.13KW76rpm375N.m98kg15400N3.8
RXF87DR112M417.083KW85rpm335N.m98kg14900N4.1
RXF87DR112M415.353KW95rpm300N.m98kg14400N4.4

Rxf87dve112m4 deviation machine parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DVE112M463.684KW23rpm1660N.m109kg13600N0.95
RXF87DVE112M460.354KW24rpm1570N.m109kg14200N1
RXF87DVE112M452.824KW28rpm1380N.m109kg15500N1.1
RXF87DVE112M447.584KW31rpm1240N.m109kg16200N1.25
RXF87DVE112M441.744KW35rpm1090N.m109kg17000N1.4
RXF87DVE112M436.844KW40rpm960N.m109kg17500N1.6
RXF87DVE112M432.664KW45rpm850N.m109kg17400N1.8
RXF87DVE112M427.884KW52rpm725N.m109kg16700N2.1
RXF87DVE112M434.44KW42rpm900N.m109kg17600N1.65
RXF87DVE112M431.44KW46rpm820N.m109kg17200N1.9
RXF87DVE112M427.844KW52rpm725N.m109kg16700N2.1
RXF87DVE112M423.44KW62rpm610N.m109kg16000N2.5
RXF87DVE112M421.514KW68rpm560N.m109kg15600N2.7
RXF87DVE112M419.14KW76rpm495N.m109kg15100N2.9
RXF87DVE112M417.084KW85rpm445N.m109kg14600N3.1
RXF87DVE112M415.354KW95rpm400N.m109kg14200N3.3
RXF87DVE112M413.334KW110rpm345N.m109kg13600N3.7
RXF87DVE112M411.934KW122rpm310N.m109kg13200N3.9

Rxf87dr112m4 motor reduction machineType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

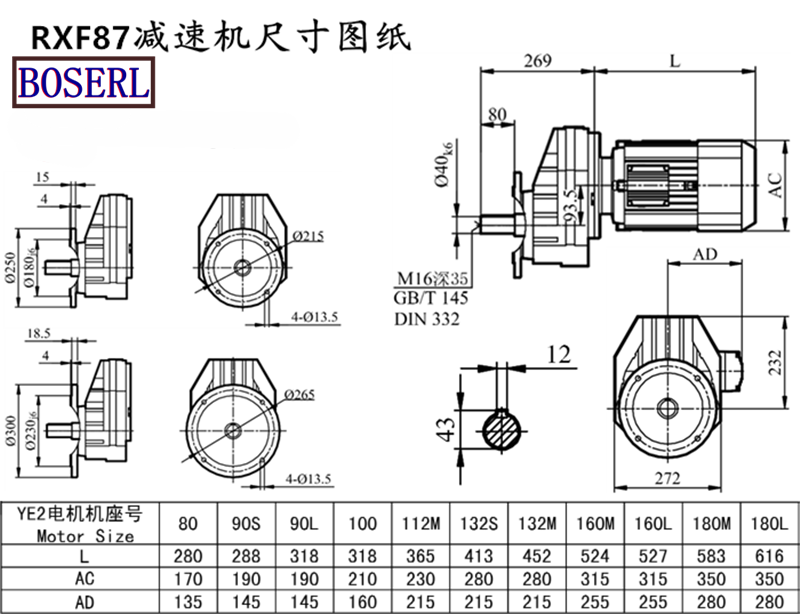

Rxf87dr112m4 motor reduction machineInstall size drawings


Horizontal reducer.png

Rxf87dr112m4 motor reduction machineProduction plant display: three days' appointment for the factory

MotoreducteurPresentation of application cases:


Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor

RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared

The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.


标签:  200 kilowatt single-phase decelerator  rxf87dr112m4rrxf87dve112m4
tags： 200 kilowatt single-phase decelerator    rxf87dr112m4rrxf87dve112m4
