RXF87DR132M4Detailed Information

RXF87DR132M4
prevnext

RXF87DR132M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 200 kw single-photogram decelerator_ rxf87dr132m4_rxf87dve132m4

RXF87DR132M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DR132M447.585.5KW31rpm1710N.m123kg15700N0.9
RXF87DR132M441.745.5KW35rpm1500N.m123kg17200N1.05
RXF87DR132M436.845.5KW40rpm1320N.m123kg17100N1.15
RXF87DR132M432.665.5KW45rpm1170N.m123kg16700N1.3
RXF87DR132M427.885.5KW52rpm1000N.m123kg16100N1.5
RXF87DR132M427.845.5KW52rpm1000N.m123kg16100N1.55
RXF87DR132M423.45.5KW62rpm840N.m123kg15400N1.85
RXF87DR132M421.515.5KW68rpm775N.m123kg15100N1.95
RXF87DR132M419.15.5KW76rpm685N.m123kg14600N2.1
RXF87DR132M417.085.5KW85rpm615N.m123kg14200N2.3
RXF87DR132M415.355.5KW95rpm550N.m123kg13800N2.4
RXF87DR132M413.335.5KW109rpm480N.m123kg13300N2.7
RXF87DR132M411.935.5KW122rpm430N.m123kg12900N2.9
RXF87DR132M49.95.5KW147rpm355N.m123kg12200N3.3
RXF87DR132M49.145.5KW159rpm330N.m123kg12100N3.7
RXF87DR132M48.225.5KW177rpm295N.m123kg11700N3.9
RXF87DR132M47.135.5KW204rpm255N.m123kg11200N4.2

Rxf87dve132m4 deviation machine parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DVE132M436.847.5KW40rpm1790N.m136kg14800N0.85
RXF87DVE132M432.667.5KW45rpm1590N.m136kg15600N0.95
RXF87DVE132M427.887.5KW53rpm1350N.m136kg15200N1.1
RXF87DVE132M427.847.5KW53rpm1350N.m136kg15200N1.15
RXF87DVE132M423.47.5KW63rpm1140N.m136kg14600N1.35
RXF87DVE132M421.517.5KW68rpm1040N.m136kg14400N1.45
RXF87DVE132M419.17.5KW77rpm930N.m136kg14000N1.55
RXF87DVE132M417.087.5KW86rpm830N.m136kg13600N1.65
RXF87DVE132M415.357.5KW96rpm745N.m136kg12600N1.8
RXF87DVE132M413.337.5KW110rpm645N.m136kg12800N1.95
RXF87DVE132M411.937.5KW123rpm580N.m136kg12500N2.1
RXF87DVE132M49.97.5KW148rpm480N.m136kg11900N2.4
RXF87DVE132M49.147.5KW161rpm445N.m136kg11800N2.7
RXF87DVE132M48.227.5KW179rpm400N.m136kg11500N2.9
RXF87DVE132M47.137.5KW206rpm345N.m136kg11000N3.1
RXF87DVE132M46.397.5KW230rpm310N.m136kg10700N3.3
RXF87DVE132M45.37.5KW277rpm255N.m136kg10100N3.5

Rxf87dr132m4reducing motorType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

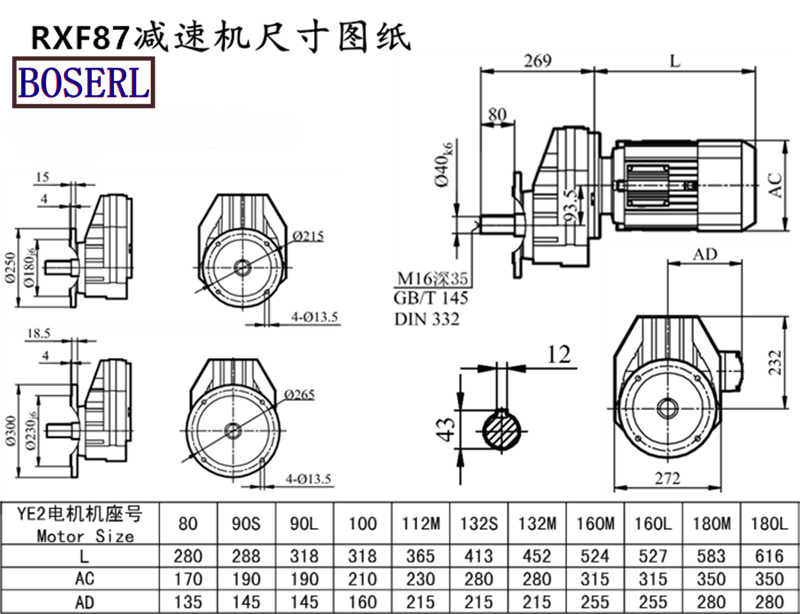

Rxf87dr132m4reducing motorInstall size drawings


Horizontal reducer.png

Rxf87dr132m4reducing motorProduction plant display: three days' appointment for the factory

MotoreducteurPresentation of application cases:


Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor

RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared

The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
