RXF87DR180LC4Detailed Information
Keyword: 0. 25 kilowatt three-wayreducing machine _rxf87dr180lc4_rxf87dm180lc4
RXF87DR180LC4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87DR180LC4 | 13.33 | 18.5KW | 110rpm | 1600N.m | 235Kg | 10600N | 0.8 |
| RXF87DR180LC4 | 11.93 | 18.5KW | 123rpm | 1430N.m | 235Kg | 10400N | 0.85 |
| RXF87DR180LC4 | 9.9 | 18.5KW | 148rpm | 1190N.m | 235Kg | 10200N | 1 |
| RXF87DR180LC4 | 9.14 | 18.5KW | 160rpm | 1100N.m | 235Kg | 10600N | 1.1 |
| RXF87DR180LC4 | 8.22 | 18.5KW | 178rpm | 990N.m | 235Kg | 10300N | 1.15 |
| RXF87DR180LC4 | 7.13 | 18.5KW | 205rpm | 860N.m | 235Kg | 10000N | 1.25 |
| RXF87DR180LC4 | 6.39 | 18.5KW | 229rpm | 770N.m | 235Kg | 9770N | 1.3 |
| RXF87DR180LC4 | 5.3 | 18.5KW | 276rpm | 635N.m | 235Kg | 9350N | 1.4 |
Rxf87dm180lc4reducing motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87DM180LC4 | 9.9 | 22KW | 149rpm | 1410N.m | 248Kg | 9640N | 0.85 |
| RXF87DM180LC4 | 9.14 | 22KW | 161rpm | 1300N.m | 248Kg | 10100N | 0.95 |
| RXF87DM180LC4 | 8.22 | 22KW | 179rpm | 1170N.m | 248Kg | 9950N | 1 |
| RXF87DM180LC4 | 7.13 | 22KW | 207rpm | 1010N.m | 248Kg | 9680N | 1.05 |
| RXF87DM180LC4 | 6.39 | 22KW | 231rpm | 900N.m | 248Kg | 9470N | 1.1 |
| RXF87DM180LC4 | 5.3 | 22KW | 278rpm | 750N.m | 248Kg | 9100N | 1.2 |
Rxf87dr180lc4 deviatorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

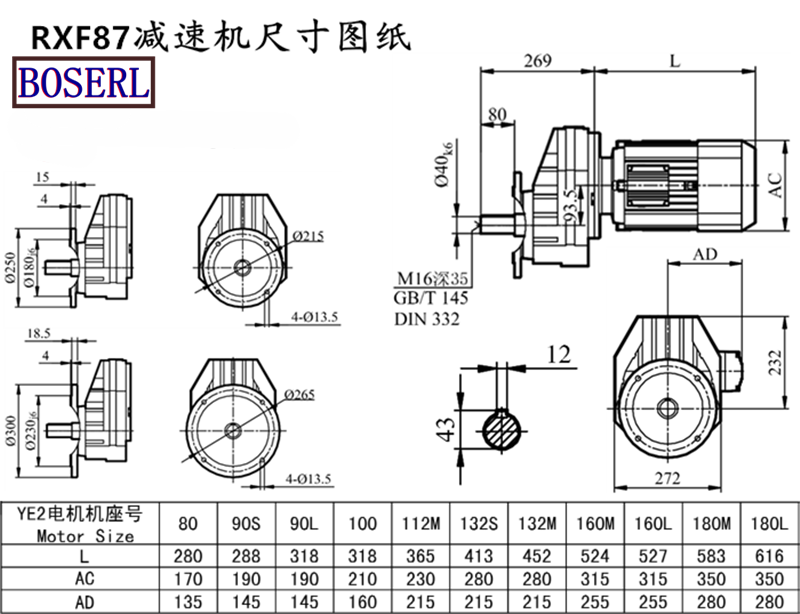

Rxf87dr180lc4 deviatorInstall size drawings
Rxf87dr180lc4 deviatorProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
