Coaxial Helical Gear Reducer Motor
网站首页 > BOSERL Gear Reducer > Motor geared > Motoreducteur

RXF87DRE100M4Detailed Information

RXF87DRE100M4
prevnext

RXF87DRE100M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 37 kilowatt single-photo reducer_rxf87dre100m4_rxf87dm100m4

RXF87DRE100M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DRE100M4124.972.2KW11rpm1840N.m96kg11700N0.85
RXF87DRE100M4118.432.2KW12rpm1740N.m96kg15400N0.9
RXF87DRE100M4103.652.2KW14rpm1520N.m96kg17100N1
RXF87DRE100M493.382.2KW15rpm1370N.m96kg18000N1.15
RXF87DRE100M481.922.2KW17rpm1200N.m96kg18900N1.3
RXF87DRE100M472.572.2KW20rpm1060N.m96kg19600N1.45
RXF87DRE100M463.682.2KW22rpm930N.m96kg20000N1.65
RXF87DRE100M460.352.2KW24rpm880N.m96kg20000N1.75
RXF87DRE100M452.822.2KW27rpm775N.m96kg20000N2
RXF87DRE100M447.582.2KW30rpm700N.m96kg20000N2.2
RXF87DRE100M441.742.2KW34rpm615N.m96kg19800N2.5
RXF87DRE100M436.842.2KW39rpm540N.m96kg19100N2.8
RXF87DRE100M432.662.2KW44rpm480N.m96kg18500N3.2
RXF87DRE100M434.42.2KW41rpm505N.m96kg18800N3
RXF87DRE100M431.42.2KW45rpm460N.m96kg18300N3.4
RXF87DRE100M427.842.2KW51rpm410N.m96kg17600N3.8
RXF87DRE100M423.42.2KW61rpm345N.m96kg16700N4.5
RXF87DRE100M421.512.2KW66rpm315N.m96kg16300N4.7

Rxf87dm100m4 reduction motor parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
RXF87DM100M4246.540.37KW3.7rpm960N.m73.5kg
20000N1.6
RXF87DM100M4216.540.37KW4.2rpm840N.m73.5kg20000N1.85
RXF87DM100M4205.710.37KW4.4rpm800N.m73.5kg
20000N1.95
RXF87DM100M4181.770.37KW5rpm705N.m73.5kg20000N2.2
RXF87DM100M4155.340.37KW5.8rpm605N.m73.5kg
20000N2.6
RXF87DM100M4142.410.37KW6.4rpm555N.m73.5kg20000N2.8

Rxf87dre100m4 power-mobilized brakeType:

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer

R. Dr. bottom foot with slash gears

R. F. Dr. bottom foot, b5 flange, slash gear reduction

Rf. Dr. B5 franc installation of slash gear reduction power

Rz. Dr. B14frand installs slash gears for reduction

Horizontal reducer.png

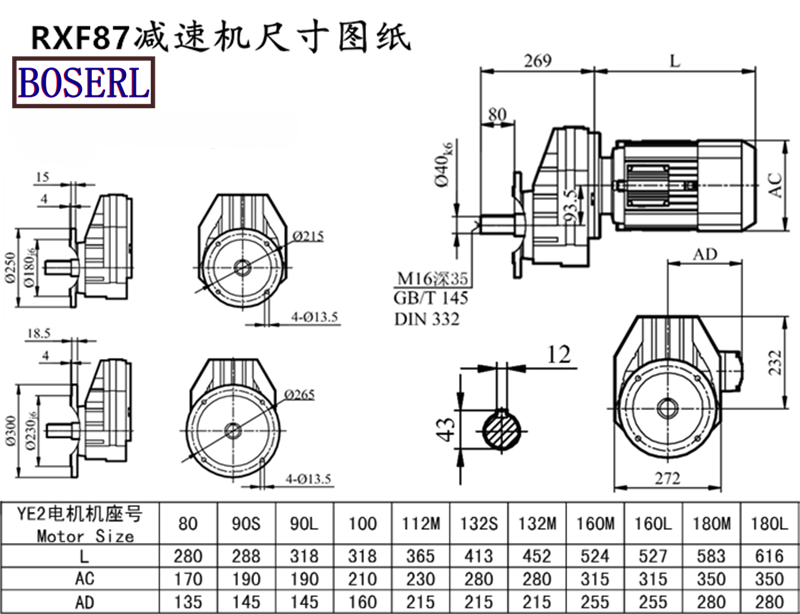

Rxf87dre100m4 power-mobilized brakeInstall size drawings


Horizontal reducer.png

Rxf87dre100m4 power-mobilized brakeProduction plant display: three days' appointment for the factory

MotoreducteurPresentation of application cases:


Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor

RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared

The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.


标签:  37 kilowatt single-photogram speed reduction machine rxf87dre100m4 rxf87dm100m4
tags： 37 kilowatt single-photogram speed reduction machine rxf87dre100m4 rxf87dm100m4
