RXF87DT80MK4Detailed Information
Keywords: 37kw single-phase motor decelerator_rxf87dt80mk4_rxf87dt80n4
RXF87DT80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87DT80MK4 | 246.54 | 0.37KW | 3.7rpm | 960N.m | 73.5kg | 20000N | 1.6 |
| RXF87DT80MK4 | 216.54 | 0.37KW | 4.2rpm | 840N.m | 73.5kg | 20000N | 1.85 |
| RXF87DT80MK4 | 205.71 | 0.37KW | 4.4rpm | 800N.m | 73.5kg | 20000N | 1.95 |
| RXF87DT80MK4 | 181.77 | 0.37KW | 5rpm | 705N.m | 73.5kg | 20000N | 2.2 |
| RXF87DT80MK4 | 155.34 | 0.37KW | 5.8rpm | 605N.m | 73.5kg | 20000N | 2.6 |
| RXF87DT80MK4 | 142.41 | 0.37KW | 6.4rpm | 555N.m | 73.5kg | 20000N | 2.8 |
Rxf87dt80n4 deviation machine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87DT80N4 | 246.54 | 0.55KW | 5.6rpm | 930N.m | 78kg | 20000N | 1.65 |
| RXF87DT80N4 | 216.54 | 0.55KW | 6.4rpm | 820N.m | 78kg | 20000N | 1.9 |
| RXF87DT80N4 | 205.71 | 0.55KW | 6.7rpm | 780N.m | 78kg | 20000N | 2 |
| RXF87DT80N4 | 181.77 | 0.55KW | 7.6rpm | 690N.m | 78kg | 20000N | 2.2 |
| RXF87DT80N4 | 155.34 | 0.55KW | 8.9rpm | 590N.m | 78kg | 20000N | 2.6 |
| RXF87DT80N4 | 142.41 | 0.55KW | 9.7rpm | 540N.m | 78kg | 20000N | 2.9 |
| RXF87DT80N4 | 124.97 | 0.55KW | 11rpm | 475N.m | 78kg | 20000N | 3.3 |
| RXF87DT80N4 | 118.43 | 0.55KW | 12rpm | 450N.m | 78kg | 20000N | 3.4 |
| RXF87DT80N4 | 103.65 | 0.55KW | 13rpm | 390N.m | 78kg | 20000N | 3.9 |
Rxf87dt80mk4 deviation motorType:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

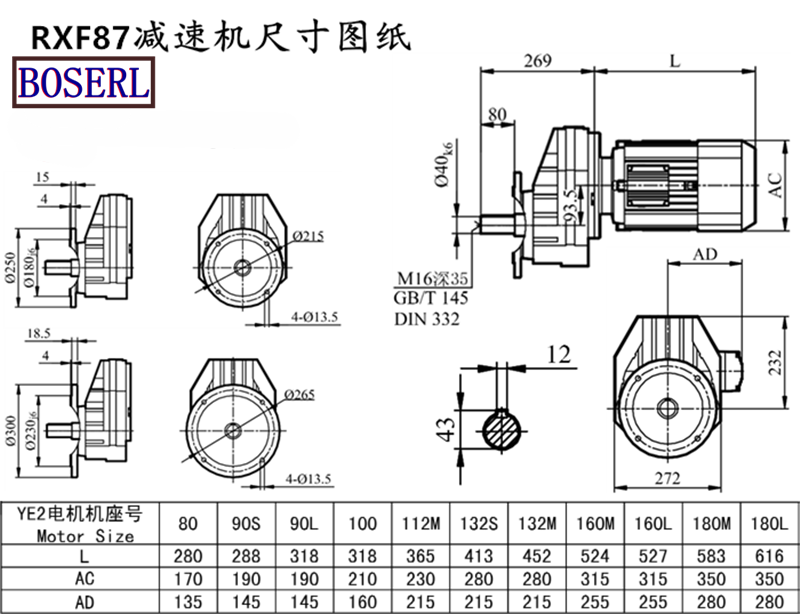

Rxf87dt80mk4 deviation motorInstall size drawings
Rxf87dt80mk4 deviation motorProduction plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
