Rxf87 speed reduction motorDetailed Information
Keyword: rxf87 deviation engine_rxf87y0. 37kw_rxf87y0. 55kw_rxf87 deviation machine_rxf87 deviation plant
RXF87Y0.37KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87Y0.37KW | 246.54 | 0.37KW | 3.7rpm | 960N.m | 73.5kg | 20000N | 1.6 |
| RXF87Y0.37KW | 216.54 | 0.37KW | 4.2rpm | 840N.m | 73.5kg | 20000N | 1.85 |
| RXF87Y0.37KW | 205.71 | 0.37KW | 4.4rpm | 800N.m | 73.5kg | 20000N | 1.95 |
| RXF87Y0.37KW | 181.77 | 0.37KW | 5rpm | 705N.m | 73.5kg | 20000N | 2.2 |
| RXF87Y0.37KW | 155.34 | 0.37KW | 5.8rpm | 605N.m | 73.5kg | 20000N | 2.6 |
| RXF87Y0.37KW | 142.41 | 0.37KW | 6.4rpm | 555N.m | 73.5kg | 20000N | 2.8 |
Rxf87y0. 55kw reduction engine parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF87Y0.55KW | 246.54 | 0.55KW | 5.6rpm | 930N.m | 78kg | 20000N | 1.65 |
| RXF87Y0.55KW | 216.54 | 0.55KW | 6.4rpm | 820N.m | 78kg | 20000N | 1.9 |
| RXF87Y0.55KW | 205.71 | 0.55KW | 6.7rpm | 780N.m | 78kg | 20000N | 2 |
| RXF87Y0.55KW | 181.77 | 0.55KW | 7.6rpm | 690N.m | 78kg | 20000N | 2.2 |
| RXF87Y0.55KW | 155.34 | 0.55KW | 8.9rpm | 590N.m | 78kg | 20000N | 2.6 |
| RXF87Y0.55KW | 142.41 | 0.55KW | 9.7rpm | 540N.m | 78kg | 20000N | 2.9 |
| RXF87Y0.55KW | 124.97 | 0.55KW | 11rpm | 475N.m | 78kg | 20000N | 3.3 |
| RXF87Y0.55KW | 118.43 | 0.55KW | 12rpm | 450N.m | 78kg | 20000N | 3.4 |
| RXF87Y0.55KW | 103.65 | 0.55KW | 13rpm | 390N.m | 78kg | 20000N | 3.9 |
Rxf87 reduction motor Type:

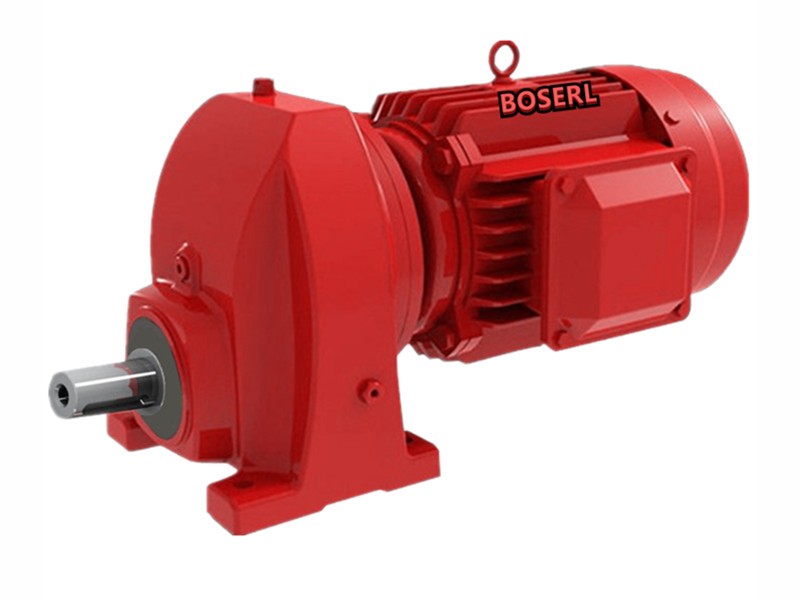

Rx. Dr. single-stage bottom foot with tilt gear-reducing power

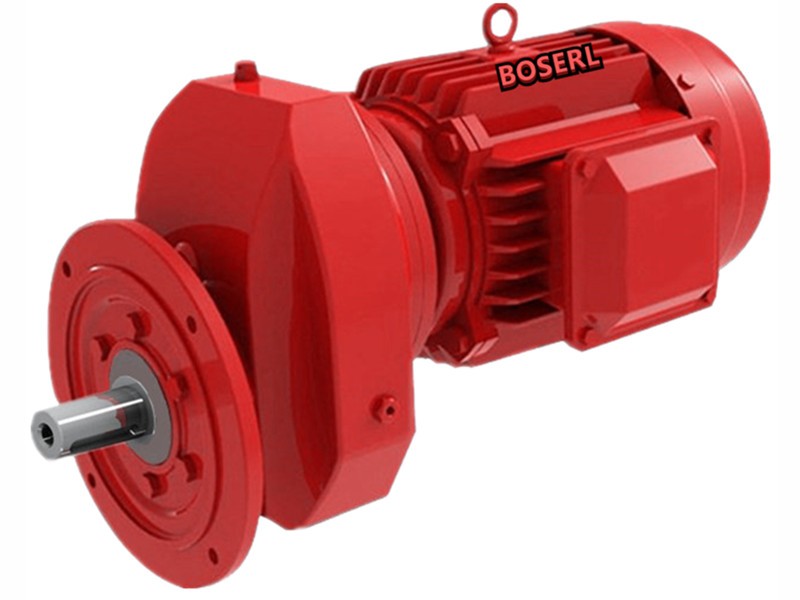

Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

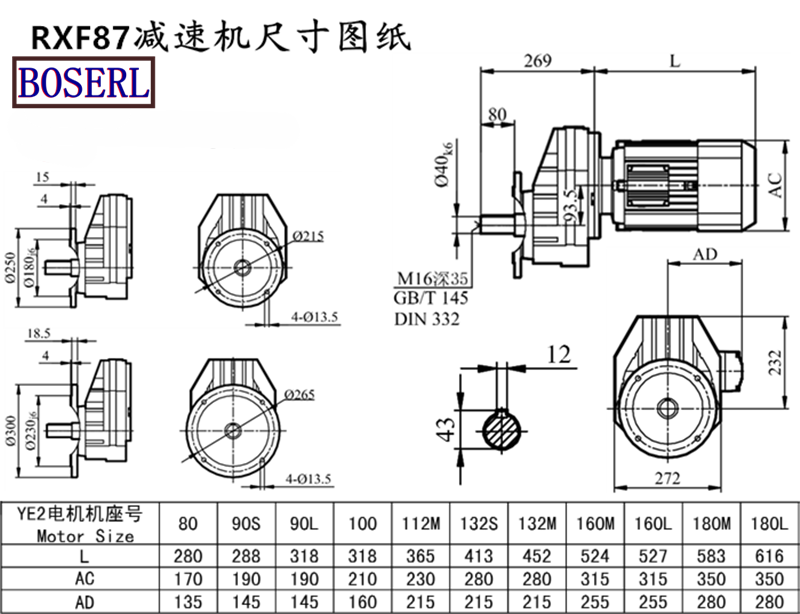

Rxf87 reduction motor Install size drawings
Rxf87 reduction motor Production plant display: three days' appointment for the factory
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
标签: Rxf87 speed deviation engine rxf87y0. 37 kw rxf87y0. 55 kw rxf87 speed deviation machine rxf87 speed deviation factory
