RXF97DT132M4Detailed Information
Keyword: 7. 5 kw 3-phasereducing machine_rxf97dt132m4_rxf97drs132m4
RXF97DT132M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF97DT132M4 | 59.92 | 7.5kw | 24rpm | 2970N.m | 155kg | 20900N | 1 |
| RXF97DT132M4 | 53.21 | 7.5kw | 27rpm | 2630N.m | 155kg | 22200N | 1.15 |
| RXF97DT132M4 | 47.58 | 7.5kw | 30rpm | 2350N.m | 155kg | 21700N | 1.25 |
| RXF97DT132M4 | 42.78 | 7.5kw | 34rpm | 2120N.m | 155kg | 21300N | 1.4 |
| RXF97DT132M4 | 37.13 | 7.5kw | 39rpm | 1840N.m | 155kg | 20700N | 1.65 |
| RXF97DT132M4 | 33.25 | 7.5kw | 43rpm | 1640N.m | 155kg | 20200N | 1.75 |
| RXF97DT132M4 | 27.58 | 7.5kw | 52rpm | 1360N.m | 155kg | 19300N | 1.95 |
| RXF97DT132M4 | 32.05 | 7.5kw | 45rpm | 1580N.m | 155kg | 20000N | 1.6 |
| RXF97DT132M4 | 27.19 | 7.5kw | 53rpm | 1340N.m | 155kg | 19200N | 1.9 |
| RXF97DT132M4 | 25.03 | 7.5kw | 58rpm | 1240N.m | 155kg | 19800N | 2.3 |
| RXF97DT132M4 | 22.37 | 7.5kw | 65rpm | 1100N.m | 155kg | 18300N | 2.4 |
| RXF97DT132M4 | 20.14 | 7.5kw | 72rpm | 990N.m | 155kg | 17900N | 2.6 |
| RXF97DT132M4 | 18.24 | 7.5kw | 79rpm | 900N.m | 155kg | 17400N | 2.8 |
Rxf97drs132m4 reduction motor parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| RXF97DRS132M4 | 59.92 | 7.5kw | 24rpm | 2970N.m | 155kg | 20900N | 1 |
| RXF97DRS132M4 | 53.21 | 7.5kw | 27rpm | 2630N.m | 155kg | 22200N | 1.15 |
| RXF97DRS132M4 | 47.58 | 7.5kw | 30rpm | 2350N.m | 155kg | 21700N | 1.25 |
| RXF97DRS132M4 | 42.78 | 7.5kw | 34rpm | 2120N.m | 155kg | 21300N | 1.4 |
| RXF97DRS132M4 | 37.13 | 7.5kw | 39rpm | 1840N.m | 155kg | 20700N | 1.65 |
| RXF97DRS132M4 | 33.25 | 7.5kw | 43rpm | 1640N.m | 155kg | 20200N | 1.75 |
| RXF97DRS132M4 | 27.58 | 7.5kw | 52rpm | 1360N.m | 155kg | 19300N | 1.95 |
| RXF97DRS132M4 | 32.05 | 7.5kw | 45rpm | 1580N.m | 155kg | 20000N | 1.6 |
| RXF97DRS132M4 | 27.19 | 7.5kw | 53rpm | 1340N.m | 155kg | 19200N | 1.9 |
| RXF97DRS132M4 | 25.03 | 7.5kw | 58rpm | 1240N.m | 155kg | 19800N | 2.3 |
| RXF97DRS132M4 | 22.37 | 7.5kw | 65rpm | 1100N.m | 155kg | 18300N | 2.4 |
| RXF97DRS132M4 | 20.14 | 7.5kw | 72rpm | 990N.m | 155kg | 17900N | 2.6 |
| RXF97DRS132M4 | 18.24 | 7.5kw | 79rpm | 900N.m | 155kg | 17400N | 2.8 |
RXF97DT132M4Speeding machine type:
Rx. Dr. single-stage bottom foot with tilt gear-reducing power
Rxf. Dr. single-level b5 franc installation tiltMotor geared reducer
R. Dr. bottom foot with slash gears
R. F. Dr. bottom foot, b5 flange, slash gear reduction
Rf. Dr. B5 franc installation of slash gear reduction power
Rz. Dr. B14frand installs slash gears for reduction

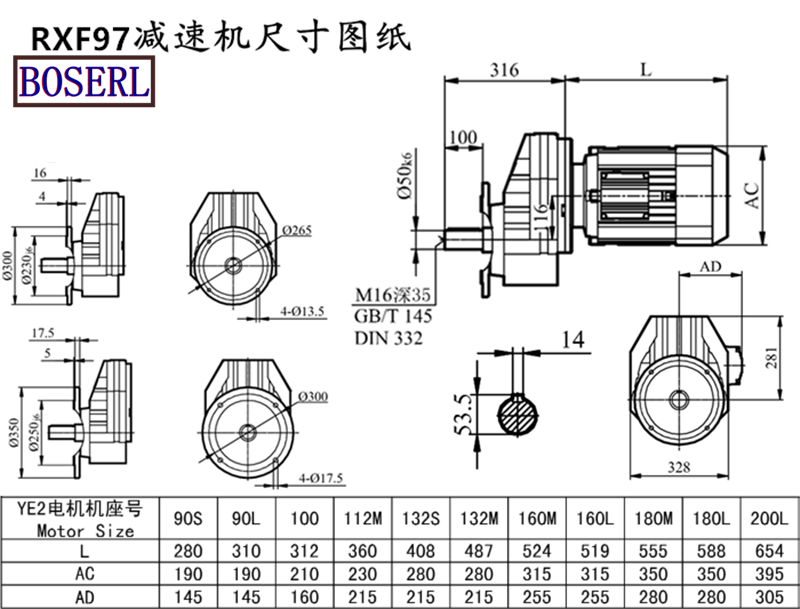

RXF97DT132M4Induction Motor 3Ph motors installed size drawings
RXF97DT132M4At thereducing plant: three days in advance
MotoreducteurPresentation of application cases:
Motoreducteur,Asynchronous electric motor,Gear box with motor Geared motor
RXF57 gear reducer, RXF67 Gear Reducer, RXF77 Gear Reducer, RXF87 Gear Reducer, RXF97 Gear Reducer, RXF107 Motor geared
The RXF series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 45KW.
