S37 gearboxDetailed Information
Keyword: s37 deviation gearbox_s37y80m4_s37y90m4_s37 gearbox_s37 gear deviation box manufacturer_s37 gearbox manufacturer
S37Y80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S37Y80M4 | 19.13 | 0.75KW | 75.0rpm | 78N.m | 23kg | 2260N | 0.90 |
| S37Y80M4 | 12.48 | 0.75KW | 115rpm | 55N.m | 23kg | 1930N | 0.85 |
| S37Y80M4 | 10.91 | 0.75KW | 132rpm | 48N.m | 23kg | 1910N | 1.00 |
| S37Y80M4 | 10.23 | 0.75KW | 140rpm | 46N.m | 23kg | 1900N | 1.05 |
| S37Y80M4 | 9.02 | 0.75KW | 159rpm | 40N.m | 23kg | 1880N | 1.15 |
| S37Y80M4 | 8.00 | 0.75KW | 179rpm | 36N.m | 23kg | 1850N | 1.25 |
| S37Y80M4 | 6.80 | 0.75KW | 211rpm | 31N.m | 23kg | 1800N | 1.40 |
S37Y90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S37Y90M4 | 9.02 | 1.5KW | 314rpm | 42N.m | 30kg | 1350N | 0.85 |
| S37Y90M4 | 8.00 | 1.5KW | 354rpm | 37N.m | 30kg | 1350N | 0.95 |
| S37Y90M4 | 6.80 | 1.5KW | 416rpm | 32N.m | 30kg | 1330N | 0.90 |

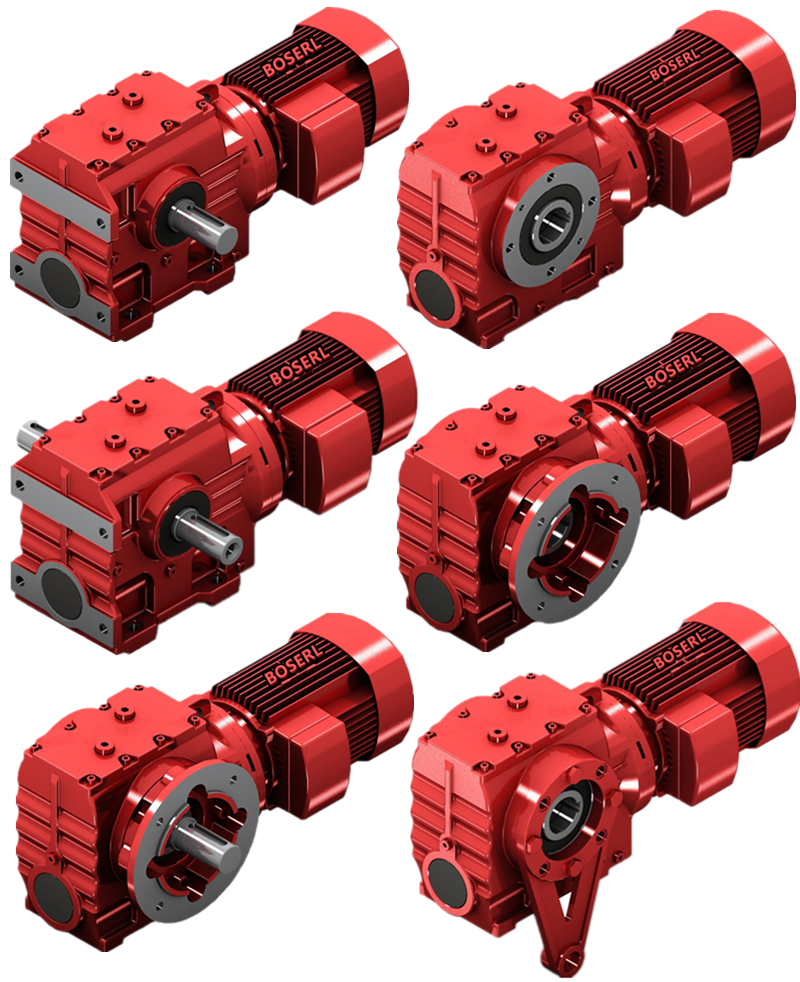

S37 gearboxType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

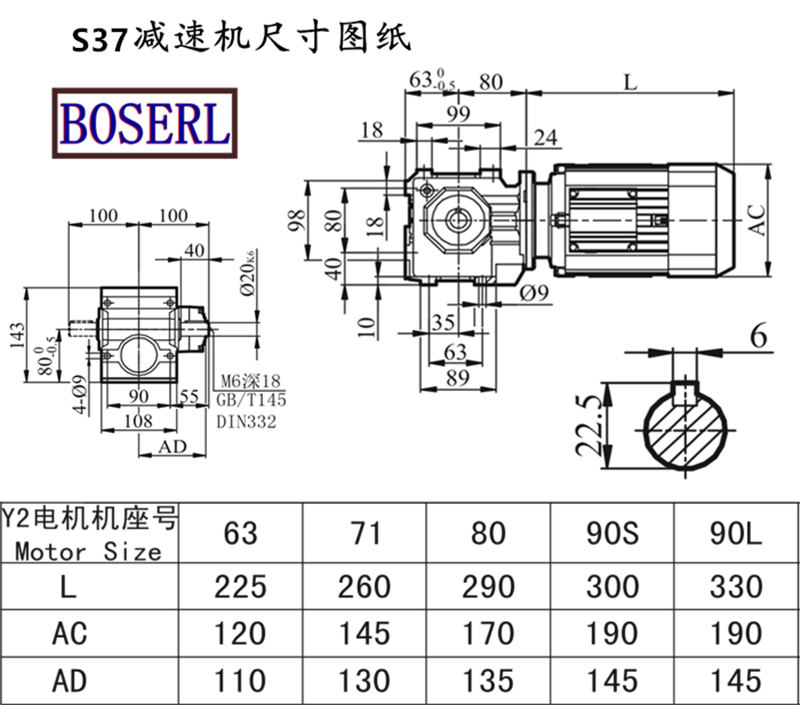

S37 gearboxInstall size drawings
S37 gearboxProduction plant display: three days' appointment for the factory
Helical-worm gearmotorPresentation of application cases:
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
