S47DRE90S4Detailed Information
Keyword: blending 21 tons of loader reduction machine_s47dre90s4_s47drn90s4
S47DRE90S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S47DRE90S4 | 29.00 | 1.1KW | 49.0rpm | 175N.m | 30kg | 3720N | 0.90 |
| S47DRE90S4 | 24.77 | 1.1KW | 57.0rpm | 151N.m | 30kg | 3660N | 1.05 |
| S47DRE90S4 | 23.20 | 1.1KW | 61.0rpm | 142N.m | 30kg | 3640N | 1.05 |
| S47DRE90S4 | 19.54 | 1.1KW | 73.0rpm | 120N.m | 30kg | 3560N | 1.20 |
| S47DRE90S4 | 17.62 | 1.1KW | 81.0rpm | 115N.m | 30kg | 3070N | 0.95 |
| S47DRE90S4 | 16.47 | 1.1KW | 86.0rpm | 108N.m | 30kg | 3060N | 1.00 |
| S47DRE90S4 | 14.24 | 1.1KW | 100rpm | 94N.m | 30kg | 3030N | 1.15 |
| S47DRE90S4 | 12.10 | 1.1KW | 117rpm | 80N.m | 30kg | 2980N | 1.35 |
| S47DRE90S4 | 10.80 | 1.1KW | 131rpm | 72N.m | 30kg | 2930N | 1.50 |
| S47DRE90S4 | 9.23 | 1.1KW | 154rpm | 62N.m | 30kg | 2860N | 1.75 |
| S47DRE90S4 | 8.64 | 1.1KW | 164rpm | 58N.m | 30kg | 2830N | 1.90 |
| S47DRE90S4 | 7.28 | 1.1KW | 195rpm | 49N.m | 30kg | 2740N | 2.10 |
S47DRN90S4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S47DRN90S4 | 29.00 | 1.1KW | 49.0rpm | 175N.m | 30kg | 3720N | 0.90 |
| S47DRN90S4 | 24.77 | 1.1KW | 57.0rpm | 151N.m | 30kg | 3660N | 1.05 |
| S47DRN90S4 | 23.20 | 1.1KW | 61.0rpm | 142N.m | 30kg | 3640N | 1.05 |
| S47DRN90S4 | 19.54 | 1.1KW | 73.0rpm | 120N.m | 30kg | 3560N | 1.20 |
| S47DRN90S4 | 17.62 | 1.1KW | 81.0rpm | 115N.m | 30kg | 3070N | 0.95 |
| S47DRN90S4 | 16.47 | 1.1KW | 86.0rpm | 108N.m | 30kg | 3060N | 1.00 |
| S47DRN90S4 | 14.24 | 1.1KW | 100rpm | 94N.m | 30kg | 3030N | 1.15 |
| S47DRN90S4 | 12.10 | 1.1KW | 117rpm | 80N.m | 30kg | 2980N | 1.35 |
| S47DRN90S4 | 10.80 | 1.1KW | 131rpm | 72N.m | 30kg | 2930N | 1.50 |
| S47DRN90S4 | 9.23 | 1.1KW | 154rpm | 62N.m | 30kg | 2860N | 1.75 |
| S47DRN90S4 | 8.64 | 1.1KW | 164rpm | 58N.m | 30kg | 2830N | 1.90 |
| S47DRN90S4 | 7.28 | 1.1KW | 195rpm | 49N.m | 30kg | 2740N | 2.10 |
S47dr90s4 motor reduction machineType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

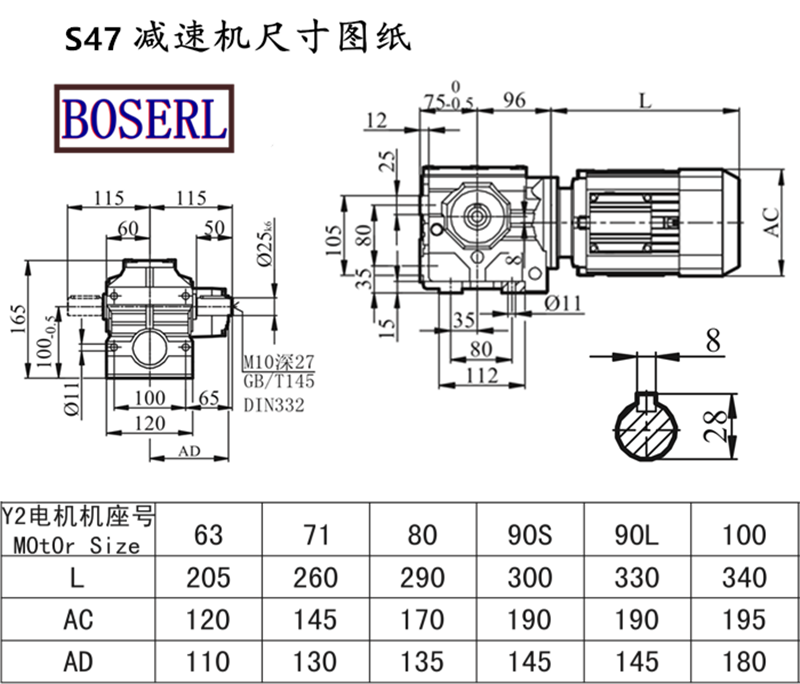

S47dr90s4 motor reduction machineInstall size drawings
S47dr90s4 motor reduction machineProduction plant display: three days' appointment for the factory
Helical-worm gearmotorPresentation of application cases:
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
