S57 gear speed reduction motorDetailed Information

S57 gear speed reduction motor
prevnext

S57 gear speed reduction motor

TEL：Email:[email protected]
  1. 详细信息

Keyword: s57 gear deviator motor_s57y0. 37kw_s57y0. 55kw_s57 gang deviator_s57 governer producer_s57 gover deviator

S57Y0.37KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
S57Y0.37KW201.000.37KW6.90rpm300N.m24.5kg7050N0.95
S57Y0.37KW184.800.37KW7.50rpm280N.m24.5kg7230N1.05
S57Y0.37KW158.120.37KW8.70rpm245N.m24.5kg7510N1.20
S57Y0.37KW137.050.37KW10.0rpm215N.m24.5kg7690N1.35
S57Y0.37KW128.100.37KW11.0rpm205N.m24.5kg7770N1.45
S57Y0.37KW110.730.37KW12.0rpm180N.m24.5kg7900N1.65
S57Y0.37KW94.080.37KW15.0rpm156N.m24.5kg8000N1.90
S57Y0.37KW84.000.37KW16.0rpm141N.m24.5kg8060N2.10
S57Y0.37KW71.750.37KW19.0rpm122N.m24.5kg8130N2.40
S57Y0.37KW69.390.37KW20.0rpm139N.m24.5kg8070N1.75
S57Y0.37KW67.200.37KW21.0rpm115N.m24.5kg8150N2.50
S57Y0.37KW63.800.37KW22.0rpm128N.m24.5kg8110N1.90

S57Y0.55KWGeared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
S57Y0.55KW158.120.55KW8.70rpm365N.m29kg6390N0.80
S57Y0.55KW137.050.55KW10.0rpm320N.m29kg6860N0.90
S57Y0.55KW128.100.55KW11.0rpm300N.m29kg7040N0.95
S57Y0.55KW110.730.55KW12.0rpm265N.m29kg7350N1.10
S57Y0.55KW94.080.55KW15.0rpm230N.m29kg7600N1.25
S57Y0.55KW84.000.55KW16.0rpm205N.m29kg7740N1.40
S57Y0.55KW71.750.55KW19.0rpm182N.m29kg7890N1.60
S57Y0.55KW67.200.55KW21.0rpm172N.m29kg7940N1.65
S57Y0.55KW54.490.55KW25.0rpm165N.m29kg7970N1.50
S57Y0.55KW47.320.55KW29.0rpm144N.m29kg8050N1.70
S57Y0.55KW44.220.55KW31.0rpm135N.m29kg8080N1.80
S57Y0.55KW38.230.55KW36.0rpm118N.m29kg8140N2.10
S57Y0.55KW32.480.55KW42.0rpm101N.m29kg7940N2.40
S57Y0.55KW29.000.55KW48.0rpm91N.m29kg7690N2.70
S57Y0.55KW24.770.55KW56.0rpm78N.m29kg7360N3.10
S57Y0.55KW23.200.55KW59.0rpm74N.m29kg7220N3.30
S57Y0.55KW20.330.55KW68.0rpm68N.m29kg6740N2.50

S57 gear reduction motor Type:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

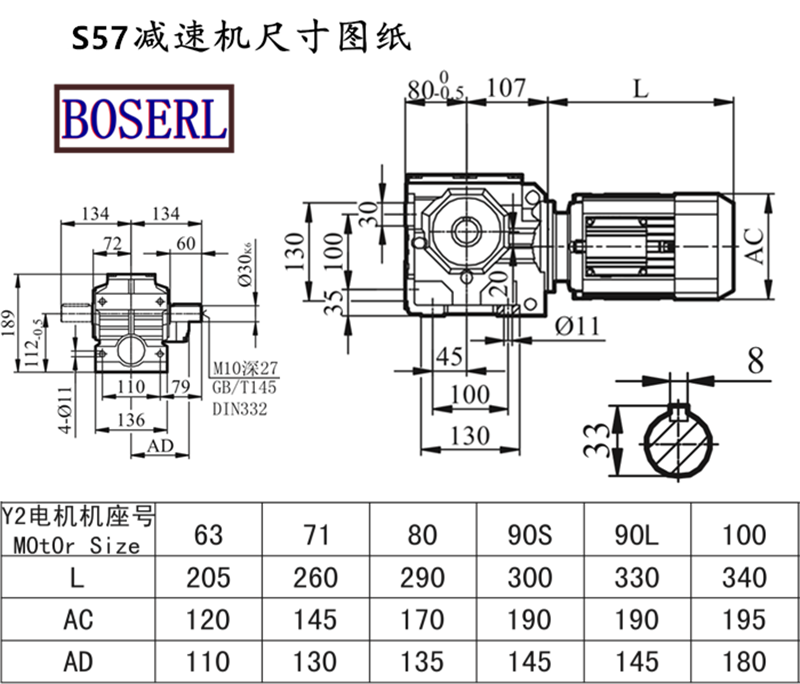

S57 gear reduction motor Install size drawings


wireless image_2020525095000.png

S57 gear reduction motor Production plant display: three days' appointment for the factory

Helical-worm gearmotorPresentation of application cases:


Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor

S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer

S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
