S57R17DM63MS4Detailed Information
Keywords: 0. 18 kw electrics with a flat slasher _ s57r17dm63ms4_s57r17drrs71ms4
S57R17DM63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S57R17DM63MS4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| S57R17DM63MS4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| S57R17DM63MS4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| S57R17DM63MS4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| S57R17DM63MS4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| S57R17DM63MS4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| S57R17DM63MS4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| S57R17DM63MS4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
S57R17DRS71MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S57R17DRS71MS4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| S57R17DRS71MS4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| S57R17DRS71MS4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| S57R17DRS71MS4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| S57R17DRS71MS4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| S57R17DRS71MS4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| S57R17DRS71MS4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
S57r17dm63ms4 deviatorsType:
S57r17dm63ms4 foot installation - slash gearServo motor reducer
Sa57r17dm63ms4 sky axis installation - tilt snail snail deviator
Saf57r17dm63ms4 is a flange b5 installation-slash snail brake
Saz57r17dm63ms4 is thereducing machine for the b14 aerocentric axle snail
Sf57r17dm63ms4 is thereducing machine for snail snails with a b5 solid core
Sh57r17dm63ms4 is an empty axle lock-drive installation -- a snail-slasher
Shf57r17dm63ms4 is a flang axle lock-drive installation of b5-slasher snails
Shz57r17dm63ms4 is a b14 flannel axle lock-drive installation - a snail-slasher
Sa57/tr17dm63ms4 rotating arm hollow axis installation - scalding snails
Sh57/tr17dm63ms4 is an axle lock-drive installation for a snail snail
Sa57br17dm63ms4 foot hollow axle installation - snail snail brake
Sh57br17dm63ms4 foot hollow axle lock-drive installation - snail-slasher
St57r17dm63ms4 solid axis export twirl arm installation - slashed gear snail stifler

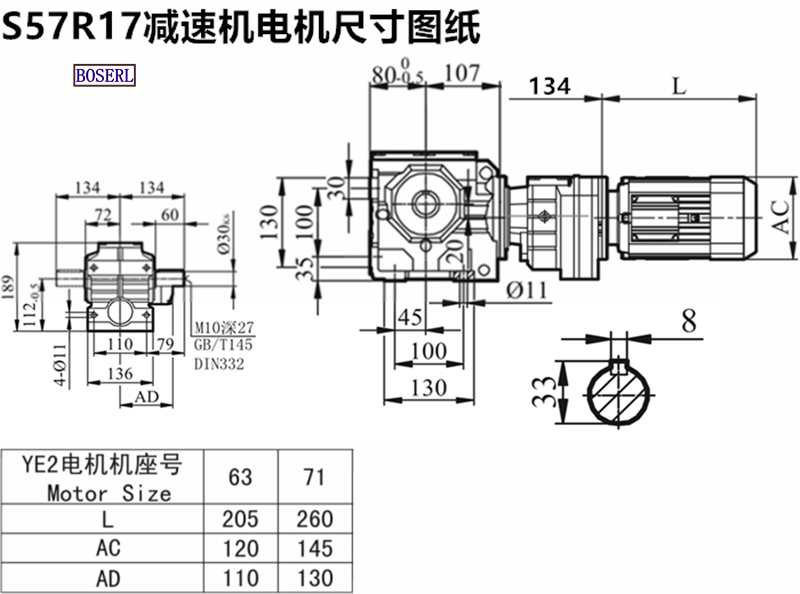

S57r17dm63ms4 deviatorsInstall size drawings
S57r17dm63ms4 deviatorsProduction plant display: three days' appointment for the factoryHelical-worm gearmotor
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
