S67R37DT80S4Detailed Information
Keyword: 0. 37 kw power sets with a gear-retard box _s67r37dt80s4_s67r37dr71d4
S67R37DT80S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S67R37DT80S4 | 246 | 0.55KW | 5.60r/min | 645N.m | 49.5kg | 6520N | 0.90 |
| S67R37DT80S4 | 221 | 0.55KW | 6.20r/min | 580N.m | 49.5kg | 8080N | 1.00 |
| S67R37DT80S4 | 198 | 0.55KW | 7.00r/min | 525N.m | 49.5kg | 8590N | 1.10 |
| S67R37DT80S4 | 168 | 0.55KW | 8.20r/min | 450N.m | 49.5kg | 9220N | 1.25 |
S67R37DR71D4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S67R37DR71D4 | 365 | 0.37KW | 3.80r/min | 620N.m | 45kg | 7560N | 0.90 |
| S67R37DR71D4 | 319 | 0.37KW | 4.30r/min | 540N.m | 45kg | 8450N | 1.05 |
| S67R37DR71D4 | 281 | 0.37KW | 4.90r/min | 475N.m | 45kg | 9030N | 1.20 |
| S67R37DR71D4 | 246 | 0.37KW | 5.60r/min | 430N.m | 45kg | 9380N | 1.30 |
S67r37dt80s4 motor deceleratorType:
S67r37dt80s4 foot installation -- slash gearServo motor reducer
Sa67r37dt80s4 hollow axle installation -- scalding snails
Saf67r37dt80s4 is a b5 installation-slash snail snail
Saz67r37dt80s4 is theretarding machine for the b14 aerocentric axle snail
Sf67r37dt80s4 is the b5-silver snail deviator
Sh67r37dt80s4 is an empty axle lock-board installation - a sledge snail brake
Shf67r37dt80s4 is a b5 franium axle locker installation - a snail brake
Shz67r37dt80s4 is a b14 franium axle locker installation - a snail braker
Sa67/tr37dt80s4 rotation arm hollow axis installation -- slough snail brake
Sh67/tr37dt80s4 is a scalding arm and hollow axle locker installation - a snail brake
Sa67br37dt80s bottom foot hollow axis installation -- scalding snail brake
Sh67br37dt80s bottom foot hollow axle lock-drive installation - snail-slasher
St67r37dt80s4 solid axis output twirl arm installation -- scalding snail brakes

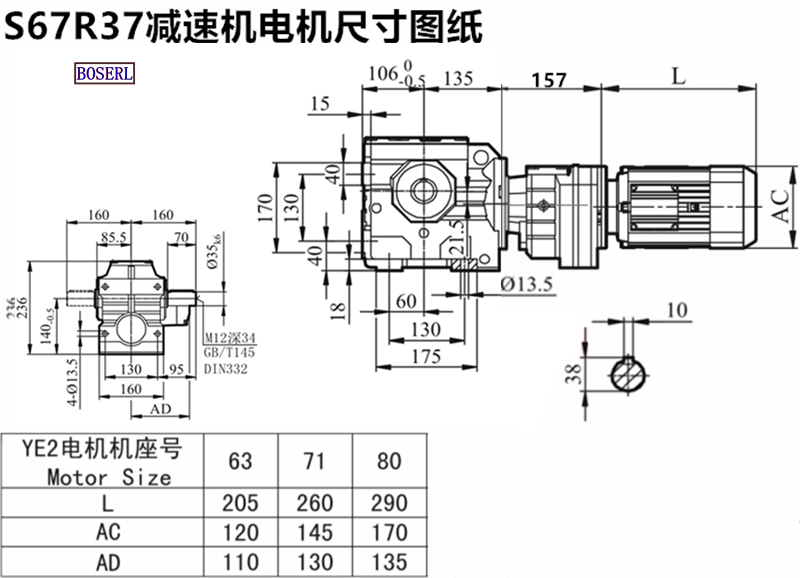

S67r37dt80s4 motor deceleratorInstall size drawings
S67r37dt80s4 motor deceleratorProduction plant display: three days' appointment for the factoryHelical-worm gearmotor
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: How 0. 37kw power is fitted with a standing gear reduction box s67r37dt80s4ss67r37dr71d4
- 上一条S67R37DT80MK4
- 下一条S67R37DT80K4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| S67R37DT80S4减速机样本 |
|
| S67R37DT80S4减速机三维图纸 |
|
