S77R37DV63M4Detailed Information
Keyword: how to fit a 15kw power with a standing gear-retarder _ s77r37dv63m4_s77r37dre71m4
S77R37DV63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S77R37DV63M4 | 3540 | 0.12KW | 0.39r/min | 1370N.m | 64kg | 7240N | 0.90 |
| S77R37DV63M4 | 3098 | 0.12KW | 0.45r/min | 1200N.m | 64kg | 12300N | 1.05 |
| S77R37DV63M4 | 2374 | 0.12KW | 0.58r/min | 1320N.m | 64kg | 10600N | 0.95 |
| S77R37DV63M4 | 2083 | 0.12KW | 0.66r/min | 1160N.m | 64kg | 12600N | 1.05 |
| S77R37DV63M4 | 1813 | 0.12KW | 0.76r/min | 980N.m | 64kg | 13900N | 1.25 |
| S77R37DV63M4 | 1745 | 0.12KW | 0.79r/min | 930N.m | 64kg | 14200N | 1.30 |
| S77R37DV63M4 | 1600 | 0.12KW | 0.86r/min | 860N.m | 64kg | 14600N | 1.45 |
| S77R37DV63M4 | 1404 | 0.12KW | 0.98r/min | 755N.m | 64kg | 15100N | 1.65 |
| S77R37DV63M4 | 1245 | 0.12KW | 1.10r/min | 660N.m | 64kg | 15500N | 1.90 |
S77R37DRE71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S77R37DRE71M4 | 714 | 0.37KW | 1.90r/min | 1310N.m | 69kg | 11300N | 0.95 |
| S77R37DRE71M4 | 637 | 0.37KW | 2.20r/min | 1160N.m | 69kg | 12600N | 1.05 |
| S77R37DRE71M4 | 574 | 0.37KW | 2.40r/min | 1050N.m | 69kg | 13400N | 1.15 |
| S77R37DRE71M4 | 499 | 0.37KW | 2.80r/min | 900N.m | 69kg | 14300N | 1.35 |
| S77R37DRE71M4 | 438 | 0.37KW | 3.20r/min | 795N.m | 69kg | 14900N | 1.55 |
| S77R37DRE71M4 | 389 | 0.37KW | 3.60r/min | 705N.m | 69kg | 15300N | 1.75 |
S77r37dv63m4 motor deceleratorType:
S77r37dv63m4 foot installation -- slash gearServo motor reducer
Sa77r37dv63m4 hollow axle installation -- snail snail brakes
Saf77r37dv63m4 is a franium b5 installation-slash snail snail
Saz77r37dv63m4 is thereducing machine for b14 aerocentric axle snails
Sf77r37dv63m4 is thereducing machine for the b5 solid core snail
Sh77r37dv63m4 is an empty axle lock-board installation - a snail-slasher
Shf77r37dv63m4 is a b5 franium axle locker installation - a sledge snail decelerator
Shz77r37dv63m4 is a b14 franium axle locker installation - a snail brake
Sa77/tr37dv63m4 rotation arm hollow axis installation -- slough snail brakes
Sh77/tr37dv63m4 is an axle locker installation for a scalding snail
Sa77br37dv63m4 foot hollow axle installation -- snail snail brakes
Sh77br37dv63m4 foot hollow axle lock-drive installation - snail brakes
St77r37dv63m4 solid axis export shaft arm installation - tilt snail snail stifler

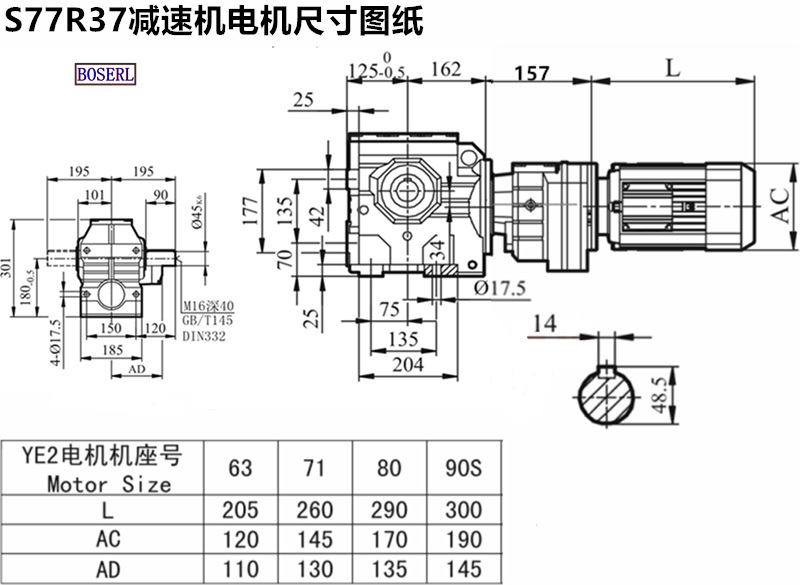

S77r37dv63m4 motor deceleratorInstall size drawings
S77r37dv63m4 motor deceleratorProduction plant display: three days' appointment for the factoryHelical-worm gearmotor
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
