S87 speed reduction motorDetailed Information
Keyword: s87 reduction motor _s87y0. 55kw_s87y0. 75kw_s87 reduction machine_s87 reduction machine
S87Y0.55KWGeared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S87Y0.55KW | 288.00 | 0.55KW | 3.20rpm | 1110N.m | 115kg | 29600N | 2.20 |
| S87Y0.55KW | 258.18 | 0.55KW | 3.50rpm | 1000N.m | 115kg | 29700N | 2.40 |
| S87Y0.55KW | 222.40 | 0.55KW | 4.10rpm | 880N.m | 115kg | 29800N | 2.70 |
| S87Y0.55KW | 202.96 | 0.55KW | 4.50rpm | 810N.m | 115kg | 29800N | 2.90 |
S87Y0.75KWGeared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S87Y0.75KW | 288.00 | 0.75KW | 5.00rpm | 1010N.m | 116kg | 29700N | 2.20 |
| S87Y0.75KW | 258.18 | 0.75KW | 5.60rpm | 910N.m | 116kg | 29800N | 2.50 |
| S87Y0.75KW | 222.40 | 0.75KW | 6.40rpm | 800N.m | 116kg | 29800N | 2.80 |
| S87Y0.75KW | 202.96 | 0.75KW | 7.10rpm | 735N.m | 116kg | 29900N | 3.10 |
S87 reduction motor Type:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

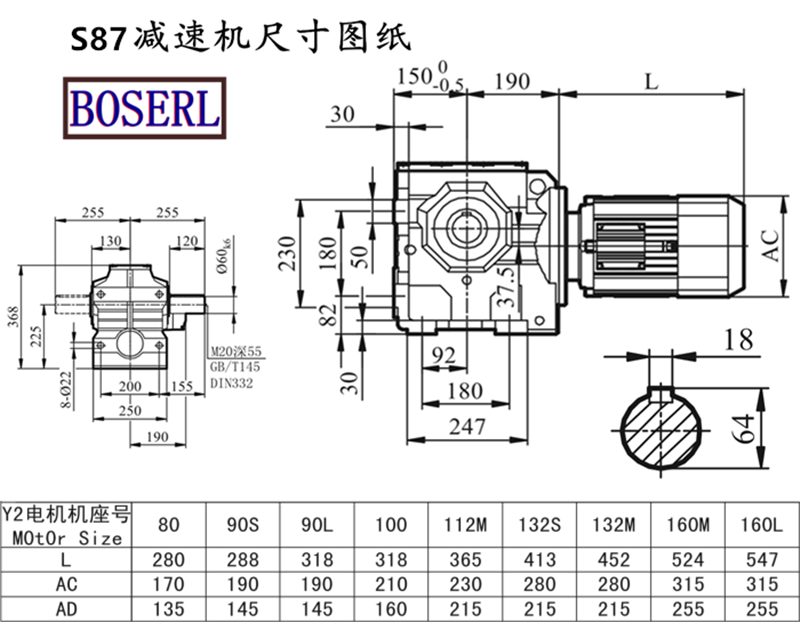

S87 reduction motor Install size drawings
S87 reduction motor Production plant display: three days' appointment for the factory
Helical-worm gearmotorPresentation of application cases:
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: S87 speed deviation power motion s87y0. 55 kw s87y0. 75 kw s87 speed deviation s87 speed deviation factory s87 speed deviation
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| S87减速机电动机样本 |
|
| S87减速机电动机三维图纸 |
|
