S87R57DT80M4Detailed Information
Keywords: 7. 5 kw power sets up a vertical brake _s87r57dt80m4_s87r57dr71m4
S87R57DT80M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S87R57DT80M4 | 1032 | 0.75KW | 1.40r/min | 2940N.m | 134kg | 21700N | 0.85 |
| S87R57DT80M4 | 930 | 0.75KW | 1.50r/min | 2710N.m | 134kg | 27000N | 0.90 |
| S87R57DT80M4 | 831 | 0.75KW | 1.70r/min | 2450N.m | 134kg | 27600N | 1 .00 |
| S87R57DT80M4 | 719 | 0.75KW | 2.00r/min | 2130N.m | 134kg | 28200N | 1.15 |
| S87R57DT80M4 | 624 | 0.75KW | 2.30r/min | 1860N.m | 134kg | 28700N | 1.35 |
| S87R57DT80M4 | 558 | 0.75KW | 2.60r/min | 1680N.m | 134kg | 28900N | 1.50 |
| S87R57DT80M4 | 435 | 0.75KW | 3.30r/min | 1340N.m | 134kg | 29300N | 1.80 |
| S87R57DT80M4 | 323 | 0.75KW | 4.40r/min | 1030N.m | 134kg | 29700N | 2.30 |
S87R57DR71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| S87R57DR71M4 | 2054 | 0.37KW | 0.67r/min | 2850N.m | 128.5kg | 24500N | 0.90 |
| S87R57DR71M4 | 1824 | 0.37KW | 0.76r/min | 2530N.m | 128.5kg | 27400N | 1.00 |
| S87R57DR71M4 | 1631 | 0.37KW | 0.85r/min | 2260N.m | 128.5kg | 28000N | 1.10 |
| S87R57DR71M4 | 930 | 0.37KW | 1.50r/min | 1340N.m | 128.5kg | 29400N | 1.85 |
| S87R57DR71M4 | 831 | 0.37KW | 1.70r/min | 1210N.m | 128.5kg | 29500N | 2.10 |
S87r57dt80m4 deviatorsType:
S87r57dt80m4 foot installation -- slash gearServo motor reducer
Sa87r57dt80m4 hollow axle installation -- snail snail brake
Saf87r57dt80m4 is a flange b5 installation-slash snail snail
Saz87r57dt80m4 is thereducing machine for the b14 aerocentric axle snail
Sf87r57dt80m4 is thereducing machine for the b5 solid core snail
Sh87r57dt80m4 is an empty axle lock-drive installation - a snail brake machine
Shf87r57dt80m4 is a b5 franium axle locker installation - a snail braker
Shz87r57dt80m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa87/tr57dt80m4 rotation arm hollow axis installation -- scalding snails
Sh87/tr57dt80m4 is an axle locker for the twister arm - a snail braker
Sa87br57dt80m4 foot hollow axis installation -- snail snail snail brake
Sh87br57dt80m4 foot hollow axle lock-drive installation - snail brake
St87r57dt80m4 solid axis export twirl arm installation - slashed snail snail stifler

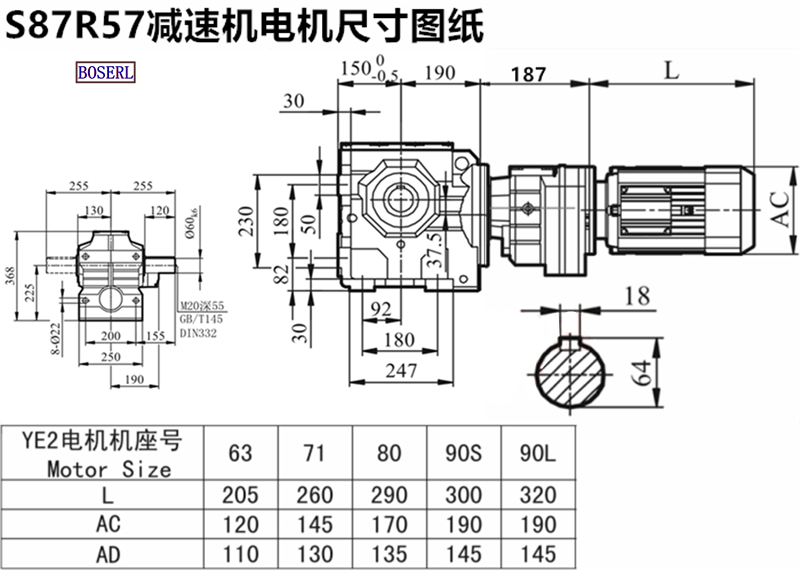

S87r57dt80m4 deviatorsInstall size drawings
S87r57dt80m4 deviatorsProduction plant display: three days' appointment for the factoryHelical-worm gearmotor
Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor
S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer
S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
