S97DRS132ML4Detailed Information

S97DRS132ML4
prevnext

S97DRS132ML4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 253hp deviator_s97drs132ml4_s97dt132l4

S97DRS132ML4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
S97DRS132ML4105.71
7.5KW14.0rpm4050N.m
243kg33100N0.85
S97DRS132ML489.607.5KW16.0rpm3460N.m243kg34200N0.95
S97DRS132ML478.267.5KW19.0rpm3040N.m243kg34900N1.00
S97DRS132ML465.457.5KW22.0rpm2560N.m243kg35500N1.15
S97DRS132ML471.437.5KW21.0rpm3110N.m243kg34800N1.05
S97DRS132ML460.597.5KW24.0rpm2650N.m243kg35400N1.25
S97DRS132ML455.797.5KW26.0rpm2450N.m243kg35700N1.35
S97DRS132ML449.877.5KW29.0rpm2190N.m243kg36000N
1.50
S97DRS132ML444.897.5KW33.0rpm1980N.m243kg36200N1.65
S97DRS132ML440.657.5KW36.0rpm1800N.m243kg36300N1.85
S97DRS132ML436.057.5KW41.0rpm1600N.m243kg36000N2.10
S97DRS132ML432.607.5KW45.0rpm1450N.m243kg35300N2.20
S97DRS132ML426.397.5KW56.0rpm1200N.m243kg31900N2.20
S97DRS132ML423.597.5KW62.0rpm1080N.m243kg31200N2.40
S97DRS132ML421.237.5KW69.0rpm970N.m243kg30600N2.70
S97DRS132ML419.237.5KW76.0rpm880N.m243kg30000N2.90

S97DT132L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
S97DT132L4105.71
7.5KW14.0rpm4050N.m
243kg33100N0.85
S97DT132L489.607.5KW16.0rpm3460N.m243kg34200N0.95
S97DT132L478.267.5KW19.0rpm3040N.m243kg34900N1.00
S97DT132L465.457.5KW22.0rpm2560N.m243kg35500N1.15
S97DT132L471.437.5KW21.0rpm3110N.m243kg34800N1.05
S97DT132L460.597.5KW24.0rpm2650N.m243kg35400N1.25
S97DT132L455.797.5KW26.0rpm2450N.m243kg35700N1.35
S97DT132L449.877.5KW29.0rpm2190N.m243kg36000N
1.50
S97DT132L444.897.5KW33.0rpm1980N.m243kg36200N1.65
S97DT132L440.657.5KW36.0rpm1800N.m243kg36300N1.85
S97DT132L436.057.5KW41.0rpm1600N.m243kg36000N2.10
S97DT132L432.607.5KW45.0rpm1450N.m243kg35300N2.20
S97DT132L426.397.5KW56.0rpm1200N.m243kg31900N2.20
S97DT132L423.597.5KW62.0rpm1080N.m243kg31200N2.40
S97DT132L421.237.5KW69.0rpm970N.m243kg30600N2.70
S97DT132L419.237.5KW76.0rpm880N.m243kg30000N2.90

S97drs132ml4 motor reduction machineType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

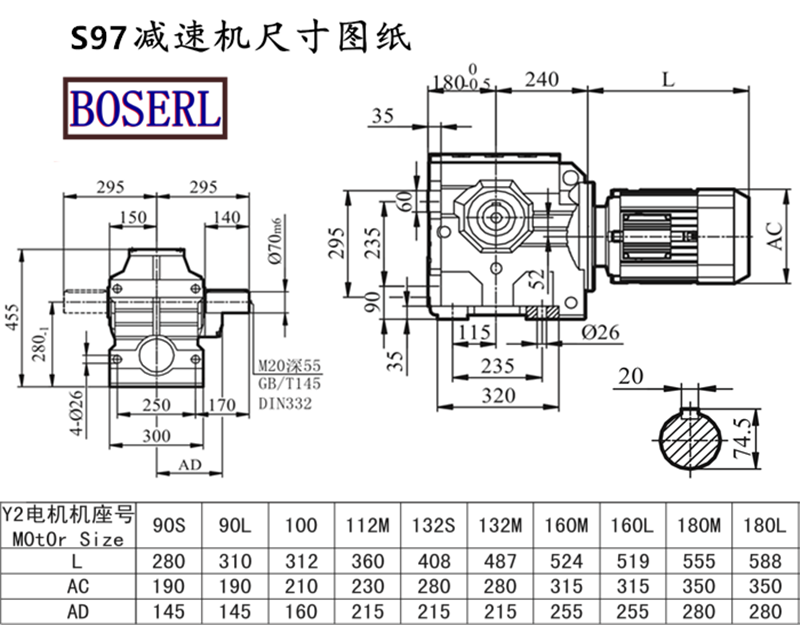

S97drs132ml4 motor reduction machineInstall size drawings


wireless image_2020525095000.png

S97drs132ml4 motor reduction machineProduction plant display: three days' appointment for the factory

Helical-worm gearmotorPresentation of application cases:

Helical-worm gearmotor,Helical worm gearMotor,Worm gear reducer motor Geared motor

S37 Gearbox, S47 Gearbox, S57 Gearbox, S67 Gearbox, S77 Gearbox, S87 Gearbox, S97 Gearbox Servo motor reducer

S Series gearboxes can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW


标签:   253hp  s97drs132ml4 s97dt132l4
tags：    253hp    s97drs132ml4   s97dt132l4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
S97DRS132ML4减速机样本 Click to download
S97DRS132ML4减速机三维图纸 Click to download
