SA47/TDRN80S4

TEL：Email:[email protected]

详细信息

Keyword: how much to mix 128 formulas withreducing motors_sa47/tdrn80s4_sa47/tdt80s4

SA47/TDRN80S4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SA47/TDRN80S4	84.00	0.55KW	16.0rpm	200N.m	25kg	5160N	0.80
SA47/TDRN80S4	71.75	0.55KW	19.0rpm	177N.m	25kg	5310N	0.95
SA47/TDRN80S4	67.20	0.55KW	21.0rpm	167N.m	25kg	5360N	1.00
SA47/TDRN80S4	54.59	0.55KW	25.0rpm	162N.m	25kg	5120N	0.95
SA47/TDRN80S4	47.32	0.55KW	29.0rpm	142N.m	25kg	5000N	1.10
SA47/TDRN80S4	44.22	0.55KW	31.0rpm	133N.m	25kg	4940N	1.15
SA47/TDRN80S4	38.23	0.55KW	36.0rpm	116N.m	25kg	4800N	1.35
SA47/TDRN80S4	32.48	0.55KW	42.0rpm	100N.m	25kg	4640N	1.55
SA47/TDRN80S4	29.00	0.55KW	48.0rpm	90N.m	25kg	4530N	1.75
SA47/TDRN80S4	24.77	0.55KW	56.0rpm	77N.m	25kg	4360N	2.00
SA47/TDRN80S4	23.20	0.55KW	59.0rpm	73N.m	25kg	4300N	2.10
SA47/TDRN80S4	20.33	0.55KW	68.0rpm	68N.m	25kg	3910N	1.60
SA47/TDRN80S4	17.62	0.55KW	78.0rpm	59N.m	25kg	3790N	1.85
SA47/TDRN80S4	16.47	0.55KW	84.0rpm	56N.m	25kg	3740N	2.00
SA47/TDRN80S4	14.24	0.55KW	97.0rpm	48N.m	25kg	3620N	2.30
SA47/TDRN80S4	12.10	0.55KW	114rpm	41N.m	25kg	3480N	2.60
SA47/TDRN80S4	10.80	0.55KW	128rpm	37N.m	25kg	3390N	3.00
SA47/TDRN80S4	9.23	0.55KW	150rpm	32N.m	25kg	3260N	3.40

SA47/TDT80S4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SA47/TDT80S4	84.00	0.55KW	16.0rpm	200N.m	25kg	5160N	0.80
SA47/TDT80S4	71.75	0.55KW	19.0rpm	177N.m	25kg	5310N	0.95
SA47/TDT80S4	67.20	0.55KW	21.0rpm	167N.m	25kg	5360N	1.00
SA47/TDT80S4	54.59	0.55KW	25.0rpm	162N.m	25kg	5120N	0.95
SA47/TDT80S4	47.32	0.55KW	29.0rpm	142N.m	25kg	5000N	1.10
SA47/TDT80S4	44.22	0.55KW	31.0rpm	133N.m	25kg	4940N	1.15
SA47/TDT80S4	38.23	0.55KW	36.0rpm	116N.m	25kg	4800N	1.35
SA47/TDT80S4	32.48	0.55KW	42.0rpm	100N.m	25kg	4640N	1.55
SA47/TDT80S4	29.00	0.55KW	48.0rpm	90N.m	25kg	4530N	1.75
SA47/TDT80S4	24.77	0.55KW	56.0rpm	77N.m	25kg	4360N	2.00
SA47/TDT80S4	23.20	0.55KW	59.0rpm	73N.m	25kg	4300N	2.10
SA47/TDT80S4	20.33	0.55KW	68.0rpm	68N.m	25kg	3910N	1.60
SA47/TDT80S4	17.62	0.55KW	78.0rpm	59N.m	25kg	3790N	1.85
SA47/TDT80S4	16.47	0.55KW	84.0rpm	56N.m	25kg	3740N	2.00
SA47/TDT80S4	14.24	0.55KW	97.0rpm	48N.m	25kg	3620N	2.30
SA47/TDT80S4	12.10	0.55KW	114rpm	41N.m	25kg	3480N	2.60
SA47/TDT80S4	10.80	0.55KW	128rpm	37N.m	25kg	3390N	3.00
SA47/TDT80S4	9.23	0.55KW	150rpm	32N.m	25kg	3260N	3.40

Sa47/tdrn80s4 deviatorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

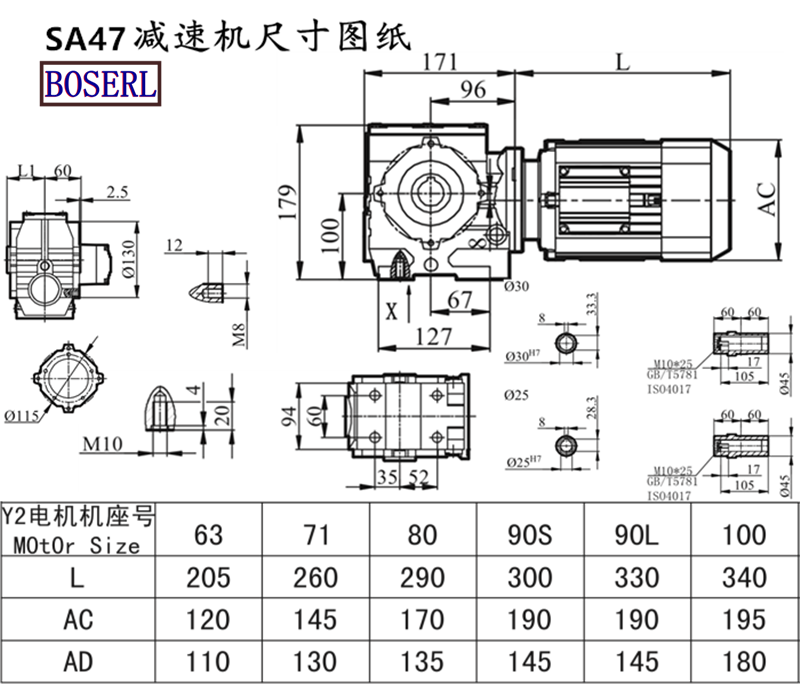

Sa47/tdrn80s4 deviatorInstall size drawings

wireless image_2020525095000.png

Sa47/tdrn80s4 deviatorProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
