SA57R17DT63MS4Detailed Information
Keywords: 0. 73 kw for power gearsreduction box_sa57r17dt63ms4_sa57r17dr71s4
SA57R17DT63MS4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57R17DT63MS4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SA57R17DT63MS4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SA57R17DT63MS4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SA57R17DT63MS4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SA57R17DT63MS4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SA57R17DT63MS4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SA57R17DT63MS4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SA57R17DT63MS4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SA57R17DR71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57R17DR71S4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SA57R17DR71S4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SA57R17DR71S4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SA57R17DR71S4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SA57R17DR71S4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SA57R17DR71S4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SA57R17DR71S4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Sa57r17dt63ms4 motor deceleratorType:
S57r17dt63ms4 foot installation - slash gearServo motor reducer
Sa57r17dt63ms4 sky axis installation - tilt snail snail deviator
Saf57r17dt63ms4 is a franium b5 installation-slash snail snail
Saz57r17dt63ms4 is theretarding machine for the b14 aerocentric axle snail
Sf57r17dt63ms4 is thereducing machine for the b5 solid core
Sh57r17dt63ms4 is an empty axle lock-drive installation - a snail-slasher
Shf57r17dt63ms4 is the b5-farland axle lockboard installation - tilt snail snail deviator
Shz57r17dt63ms4 is a b14 flannel axle lock-drive installation - a snail-slasher
Sa57/tr17dt63ms4 rotation arm hollow axis installation -- slough snail brakes
Sh57/tr17dt63ms4 is an axle locker for a sledgeal snail
Sa57br17dt63ms4 foot hollow axle installation -- snail snail brakes
Sh57br17dt63ms4 foot hollow axle lock-drive installation -- snail brakes
St57r17dt63ms4 solid axis output twirl arm installation - sledge snail brakes

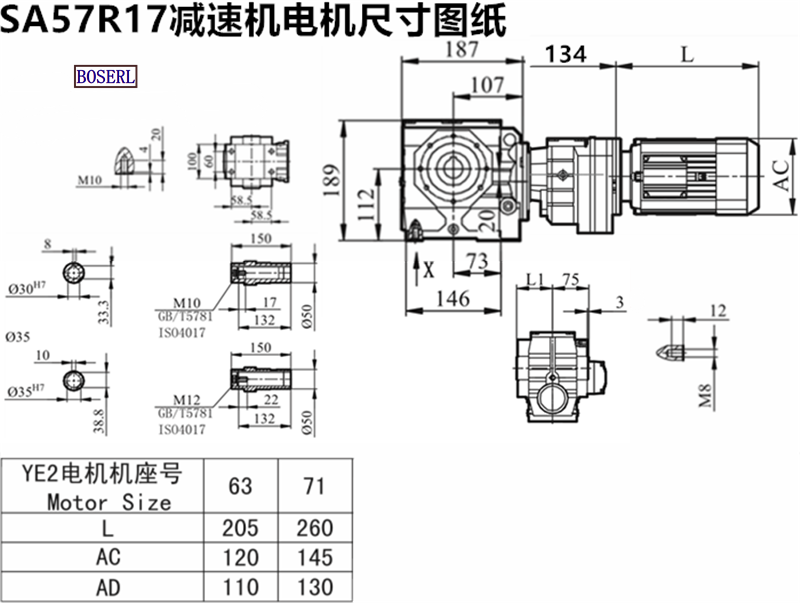

Sa57r17dt63ms4 motor deceleratorInstall size drawings
Sa57r17dt63ms4 motor deceleratorProduction plant display: three days' appointment for the factoryLevel-IIreducing machine
Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor
SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer
SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
