Sa57t power deceleratorDetailed Information
Keywords: sa57t power retrenchor_sa57 ty90m4_sa57 ty100m4_sa57t retrenchor electric generator _sa57t retrencher generator
SA57/TY90M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57/TY90M4 | 71.75 | 1.1KW | 20.0rpm | 350N.m | 34kg | 6530N | 0.80 |
| SA57/TY90M4 | 67.20 | 1.1KW | 21.0rpm | 330N.m | 34kg | 6750N | 0.85 |
| SA57/TY90M4 | 56.61 | 1.1KW | 25.0rpm | 285N.m | 34kg | 7210N | 0.95 |
| SA57/TY90M4 | 47.32 | 1.1KW | 30.0rpm | 280N.m | 34kg | 7250N | 0.85 |
| SA57/TY90M4 | 44.22 | 1.1KW | 32.0rpm | 260N.m | 34kg | 7390N | 0.95 |
| SA57/TY90M4 | 38.23 | 1.1KW | 37.0rpm | 225N.m | 34kg | 7390N | 1.05 |
| SA57/TY90M4 | 32.48 | 1.1KW | 44.0rpm | 197N.m | 34kg | 7150N | 1.25 |
| SA57/TY90M4 | 29.00 | 1.1KW | 49.0rpm | 177N.m | 34kg | 6980N | 1.40 |
| SA57/TY90M4 | 24.77 | 1.1KW | 57.0rpm | 152N.m | 34kg | 6740N | 1.60 |
| SA57/TY90M4 | 23.20 | 1.1KW | 61.0rpm | 143N.m | 34kg | 6640N | 1.70 |
| SA57/TY90M4 | 19.54 | 1.1KW | 73.0rpm | 121N.m | 34kg | 6370N | 1.75 |
| SA57/TY90M4 | 17.62 | 1.1KW | 81.0rpm | 116N.m | 34kg | 5850N | 1.45 |
| SA57/TY90M4 | 16.47 | 1.1KW | 86.0rpm | 108N.m | 34kg | 5770N | 1.55 |
| SA57/TY90M4 | 14.24 | 1.1KW | 100rpm | 94N.m | 34kg | 5590N | 1.80 |
| SA57/TY90M4 | 12.10 | 1.1KW | 117rpm | 80N.m | 34kg | 5380N | 2.10 |
| SA57/TY90M4 | 10.80 | 1.1KW | 131rpm | 72N.m | 34kg | 5240N | 2.40 |
| SA57/TY90M4 | 9.23 | 1.1KW | 154rpm | 62N.m | 34kg | 5040N | 2.70 |
SA57/TY100M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57/TY100M4 | 14.24 | 2.2KW | 100rpm | 188N.m | 46kg | 4640N | 0.90 |
| SA57/TY100M4 | 12.10 | 2.2KW | 118rpm | 160N.m | 46kg | 4570N | 1.05 |
| SA57/TY100M4 | 10.80 | 2.2KW | 132rpm | 144N.m | 46kg | 4520N | 1.20 |
| SA57/TY100M4 | 9.23 | 2.2KW | 154rpm | 123N.m | 46kg | 4420N | 1.35 |
| SA57/TY100M4 | 8.64 | 2.2KW | 165rpm | 116N.m | 46kg | 4370N | 1.45 |
| SA57/TY100M4 | 7.28 | 2.2KW | 196rpm | 98N.m | 46kg | 4240N | 1.50 |
Sa57t power deceleratorType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

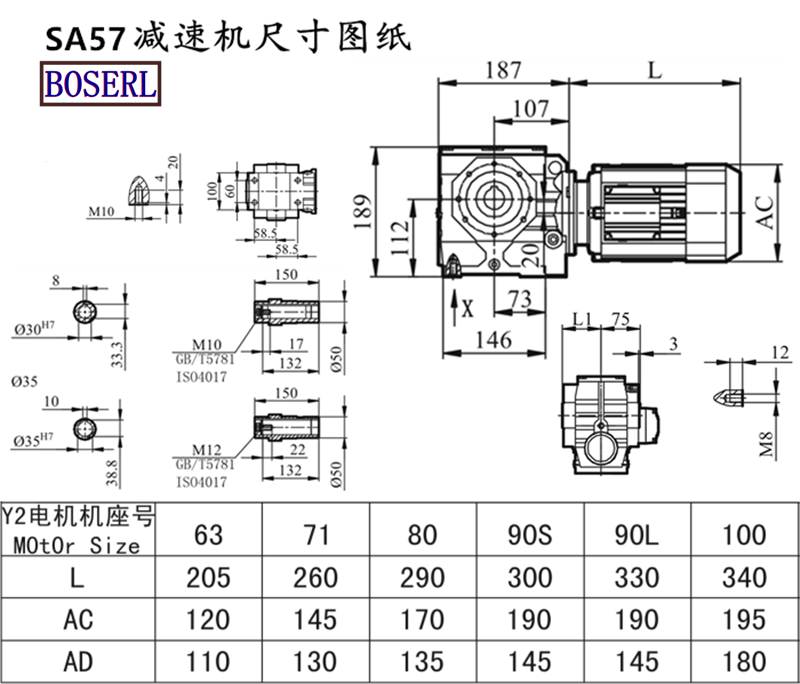

Sa57t power deceleratorInstall size drawings
Sa57t power deceleratorProduction plant display: three days' appointment for the factory
Level-IIreducing machinePresentation of application cases:
Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor
SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer
SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: sa57t speed-reducing machine sa57 ty90m4sasa57ty100m4 sa57t speed-reducing machine sa57t speed-reducing power plant
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SA57/T电机减速器样本 |
|
| SA57/T电机减速器三维图纸 |
|
