SA57/TDVE100M4Detailed Information
Keyword: how muchreducing machine can mix 28 formulas _sa57/tdve100m4_sa57/tdre100m4
SA57/TDVE100M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57/TDVE100M4 | 14.24 | 2.2KW | 100rpm | 188N.m | 46kg | 4640N | 0.90 |
| SA57/TDVE100M4 | 12.10 | 2.2KW | 118rpm | 160N.m | 46kg | 4570N | 1.05 |
| SA57/TDVE100M4 | 10.80 | 2.2KW | 132rpm | 144N.m | 46kg | 4520N | 1.20 |
| SA57/TDVE100M4 | 9.23 | 2.2KW | 154rpm | 123N.m | 46kg | 4420N | 1.35 |
| SA57/TDVE100M4 | 8.64 | 2.2KW | 165rpm | 116N.m | 46kg | 4370N | 1.45 |
| SA57/TDVE100M4 | 7.28 | 2.2KW | 196rpm | 98N.m | 46kg | 4240N | 1.50 |
SA57/TDRE100M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA57/TDRE100M4 | 14.24 | 2.2KW | 100rpm | 188N.m | 46kg | 4640N | 0.90 |
| SA57/TDRE100M4 | 12.10 | 2.2KW | 118rpm | 160N.m | 46kg | 4570N | 1.05 |
| SA57/TDRE100M4 | 10.80 | 2.2KW | 132rpm | 144N.m | 46kg | 4520N | 1.20 |
| SA57/TDRE100M4 | 9.23 | 2.2KW | 154rpm | 123N.m | 46kg | 4420N | 1.35 |
| SA57/TDRE100M4 | 8.64 | 2.2KW | 165rpm | 116N.m | 46kg | 4370N | 1.45 |
| SA57/TDRE100M4 | 7.28 | 2.2KW | 196rpm | 98N.m | 46kg | 4240N | 1.50 |
Sa57/tdve100m4 deviatorsType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

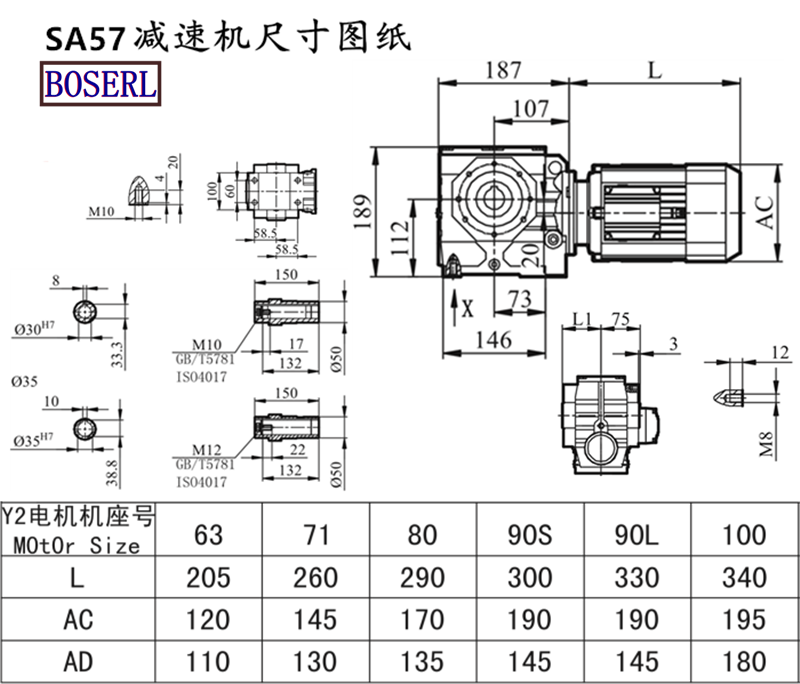

Sa57/tdve100m4 deviatorsInstall size drawings
S57/tdve100m4 deviatorsProduction plant display: three days' appointment for the factory
Helical-worm gearmotorPresentation of application cases:
Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor
SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer
SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: How much power can you mix with 28 formulas
- 上一条SA57/TDVE80M4
- 下一条SA57/TDRS80N4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SA57/TDVE100M4减速机样本 |
|
| SA57/TDVE100M4减速机三维图纸 |
|
