SA77DRN90L4Detailed Information

SA77DRN90L4
prevnext

SA77DRN90L4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 0. 12 kw brake deviator unit _sa77drn90l4_sa77dt90l4

SA77DRN90L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA77DRN90L4189.091.5KW7.60rpm1310N.m73kg11300N0.95
SA77DRN90L4161.601.5KW8.80rpm1130N.m73kg12800N1.10
SA77DRN90L4148.151.5KW9.60rpm1050N.m73kg13500N1.20
SA77DRN90L4130.001.5KW11.0rpm930N.m73kg14200N1.30
SA77DRN90L4123.201.5KW12.0rpm880N.m73kg14500N1.35
SA77DRN90L4107.831.5KW13.0rpm785N.m73kg15000N1.50
SA77DRN90L497.141.5KW15.0rpm710N.m73kg15300N1.60
SA77DRN90L485.221.5KW17.0rpm630N.m73kg15400N1.75
SA77DRN90L475.091.5KW19.0rpm635N.m73kg14100N1.70
SA77DRN90L471.331.5KW20.0rpm605N.m73kg14000N1.80
SA77DRN90L466.671.5KW21.0rpm500N.m73kg14500N2.10
SA77DRN90L463.031.5KW23.0rpm540N.m73kg13600N2.00
SA77DRN90L456.921.5KW25.0rpm430N.m73kg14000N2.30
SA77DRN90L453.871.5KW27.0rpm465N.m73kg13200N2.40
SA77DRN90L449.381.5KW29.0rpm425N.m73kg12900N2.60
SA77DRN90L443.331.5KW33.0rpm375N.m73kg12500N2.90

SA77DT90L4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA77DT90L4189.091.5KW7.60rpm1310N.m73kg11300N0.95
SA77DT90L4161.601.5KW8.80rpm1130N.m73kg12800N1.10
SA77DT90L4148.151.5KW9.60rpm1050N.m73kg13500N1.20
SA77DT90L4130.001.5KW11.0rpm930N.m73kg14200N1.30
SA77DT90L4123.201.5KW12.0rpm880N.m73kg14500N1.35
SA77DT90L4107.831.5KW13.0rpm785N.m73kg15000N1.50
SA77DT90L497.141.5KW15.0rpm710N.m73kg15300N1.60
SA77DT90L485.221.5KW17.0rpm630N.m73kg15400N1.75
SA77DT90L475.091.5KW19.0rpm635N.m73kg14100N1.70
SA77DT90L471.331.5KW20.0rpm605N.m73kg14000N1.80
SA77DT90L466.671.5KW21.0rpm500N.m73kg14500N2.10
SA77DT90L463.031.5KW23.0rpm540N.m73kg13600N2.00
SA77DT90L456.921.5KW25.0rpm430N.m73kg14000N2.30
SA77DT90L453.871.5KW27.0rpm465N.m73kg13200N2.40
SA77DT90L449.381.5KW29.0rpm425N.m73kg12900N2.60
SA77DT90L443.331.5KW33.0rpm375N.m73kg12500N2.90

Sa77drn90l4 deviatorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

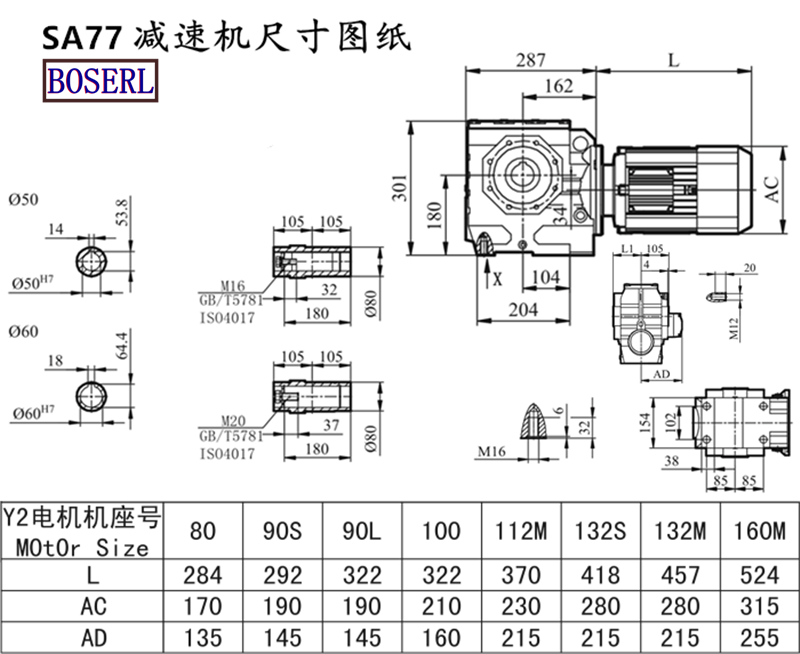

Sa77drn90l4 deviatorInstall size drawings


wireless image_2020525095000.png

Sa77drn90l4 deviatorProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
