SA77DRS112M4Detailed Information

SA77DRS112M4
prevnext

SA77DRS112M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 4kw brakes, power-retarding one plane _sa77drs112m4_sa77dm112m4

SA77DRS112M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA77DRS112M456.924KW26.0rpm1130N.m96kg10800N0.85
SA77DRS112M453.874KW27.0rpm1210N.m96kg9280N0.90
SA77DRS112M449.384KW30.0rpm1120N.m96kg9330N1.00
SA77DRS112M443.334KW34.0rpm980N.m96kg9370N1.10
SA77DRS112M441.074KW36.0rpm930N.m96kg9370N1.15
SA77DRS112M435.944KW41.0rpm820N.m96kg9330N1.35
SA77DRS112M432.384KW45.0rpm745N.m96kg9270N1.45
SA77DRS112M428.414KW51.0rpm655N.m96kg9160N1.60
SA77DRS112M425.074KW58.0rpm580N.m96kg9040N1.75
SA77DRS112M422.894KW64.0rpm545N.m96kg7650N1.30
SA77DRS112M420.994KW70.0rpm500N.m96kg7640N1.40
SA77DRS112M418.424KW79.0rpm440N.m96kg7600N1.60
SA77DRS112M417.454KW84.0rpm420N.m96kg7580N1.70
SA77DRS112M415.284KW96.0rpm365N.m96kg7490N1.90
SA77DRS112M413.764KW106rpm330N.m96kg7400N2.10
SA77DRS112M412.074KW121rpm290N.m96kg7280N2.40

SA77DM112M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA77DM112M456.924KW26.0rpm1130N.m96kg10800N0.85
SA77DM112M453.874KW27.0rpm1210N.m96kg9280N0.90
SA77DM112M449.384KW30.0rpm1120N.m96kg9330N1.00
SA77DM112M443.334KW34.0rpm980N.m96kg9370N1.10
SA77DM112M441.074KW36.0rpm930N.m96kg9370N1.15
SA77DM112M435.944KW41.0rpm820N.m96kg9330N1.35
SA77DM112M432.384KW45.0rpm745N.m96kg9270N1.45
SA77DM112M428.414KW51.0rpm655N.m96kg9160N1.60
SA77DM112M425.074KW58.0rpm580N.m96kg9040N1.75
SA77DM112M422.894KW64.0rpm545N.m96kg7650N1.30
SA77DM112M420.994KW70.0rpm500N.m96kg7640N1.40
SA77DM112M418.424KW79.0rpm440N.m96kg7600N1.60
SA77DM112M417.454KW84.0rpm420N.m96kg7580N1.70
SA77DM112M415.284KW96.0rpm365N.m96kg7490N1.90
SA77DM112M413.764KW106rpm330N.m96kg7400N2.10
SA77DM112M412.074KW121rpm290N.m96kg7280N2.40

Sa77drs112m4reducing motorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

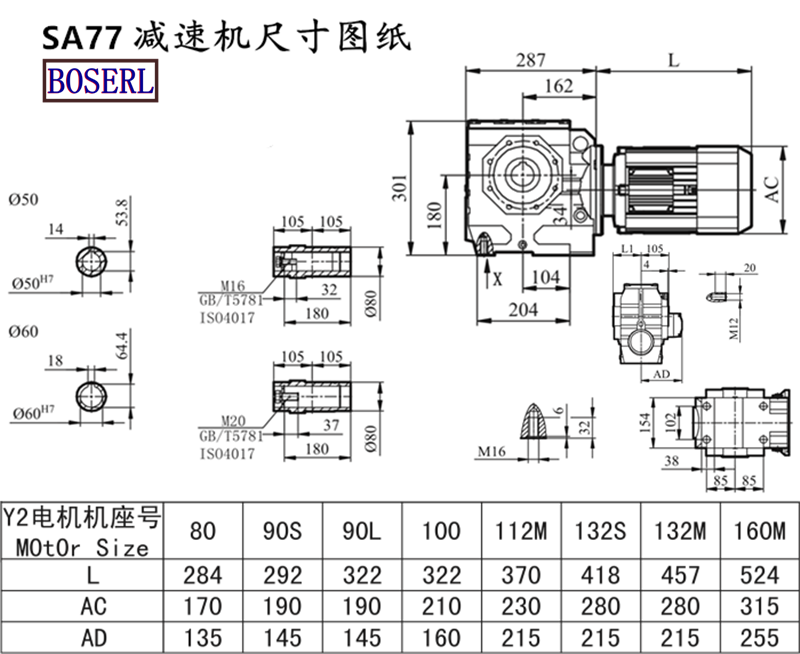

Sa77drs112m4reducing motorInstall size drawings


wireless image_2020525095000.png

Sa77drs112m4reducing motorProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
