SA77DRS71S4Detailed Information
Keywords: 200kw mod-frequency-retarder oner_sa77drs71s4_sa77dr71s4
SA77DRS71S4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA77DRS71S4 | 256.47 | 0.37KW | 3.50rpm | 635N.m | 60.5kg | 15600N | 2.00 |
| SA77DRS71S4 | 225.26 | 0.37KW | 4.00rpm | 565N.m | 60.5kg | 15800N | 2.20 |
| SA77DRS71S4 | 214.00 | 0.37KW | 4.20rpm | 540N.m | 60.5kg | 15900N | 2.30 |
SA77DR71S4_Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SA77DR71S4_ | 256.47 | 0.37KW | 3.50rpm | 635N.m | 60.5kg | 15600N | 2.00 |
| SA77DR71S4_ | 225.26 | 0.37KW | 4.00rpm | 565N.m | 60.5kg | 15800N | 2.20 |
| SA77DR71S4_ | 214.00 | 0.37KW | 4.20rpm | 540N.m | 60.5kg | 15900N | 2.30 |
Sa77drs71s4 gearboxType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

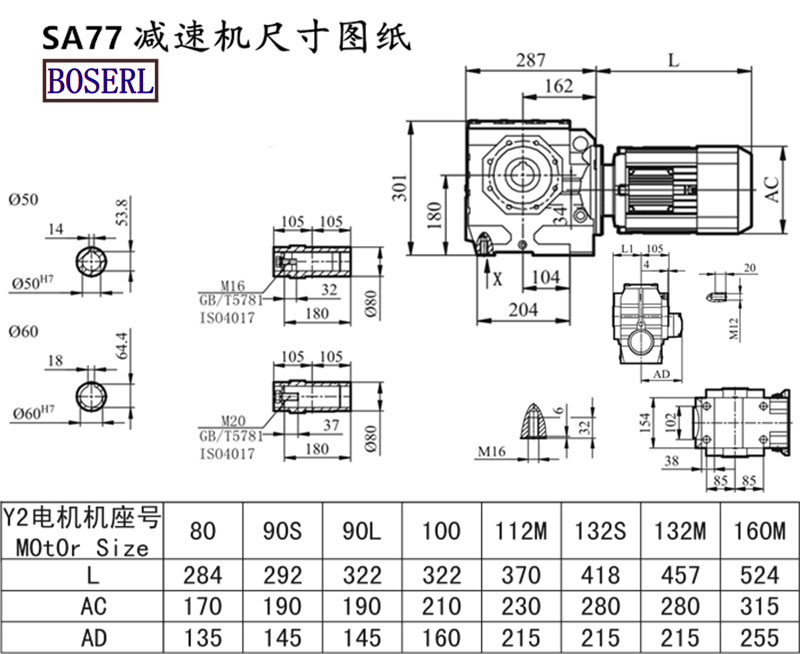

Sa77drs71s4 gearboxInstall size drawings
Sa77drs71s4 gearboxProduction plant display: three days' appointment for the factory
Level-IIreducing machinePresentation of application cases:
Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor
SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer
SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
标签: 200kw frf retrenchor unit sa77drs71s4 sa77dr71s4
- 上一条SA77DM71D4
- 下一条SA77DV71M4
Documentation related to this product / Related DownLoad
| Product Document Name | Click to download |
| SA77DRS71S4减速机样本 |
|
| SA77DRS71S4减速机三维图纸 |
|
