SA87DVE100LC4Detailed Information

prevnext

SA87DVE100LC4

TEL：Email:[email protected]

详细信息

Keywords: 1. 5 kilowatt-band-reducing motor unit _sa87dve100lc4_sa87dve100ls4

SA87DVE100LC4Geared motor reducer parameters：

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SA87DVE100LC4	180.00	3KW	8.10rpm	2600N.m	135kg	27300N	0.85
SA87DVE100LC4	151.30	3KW	9.60rpm	2210N.m	135kg	28100N	0.95
SA87DVE100LC4	139.05	3KW	10.0rpm	2050N.m	135kg	28400N	1.00
SA87DVE100LC4	123.48	3KW	12.0rpm	1830N.m	135kg	28700N	1.10
SA87DVE100LC4	110.40	3KW	13.0rpm	1650N.m	135kg	29000N	1.20
SA87DVE100LC4	99.26	3KW	15.0rpm	1490N.m	135kg	29200N	1.30
SA87DVE100LC4	86.15	3KW	17.0rpm	1310N.m	135kg	29400N	1.45
SA87DVE100LC4	81.76	3KW	18.0rpm	1400N.m	135kg	29300N	1.15
SA87DVE100LC4	77.14	3KW	19.0rpm	1180N.m	135kg	29500N	1.55
SA87DVE100LC4	70.43	3KW	21.0rpm	1210N.m	135kg	29500N	1.30
SA87DVE100LC4	64.27	3KW	23.0rpm	1110N.m	135kg	29600N	1.45
SA87DVE100LC4	57.00	3KW	26.0rpm	990N.m	135kg	29700N	1.60
SA87DVE100LC4	47.91	3KW	30.0rpm	830N.m	135kg	29800N	1.90
SA87DVE100LC4	44.03	3KW	33.0rpm	770N.m	135kg	29900N	2.10
SA87DVE100LC4	39.10	3KW	37.0rpm	685N.m	135kg	29900N	2.30
SA87DVE100LC4	34.96	3KW	42.0rpm	615N.m	135kg	29900N	2.60

SA87DVE100LS4Geared motor reducer parameters:

Model	Slowdown ratio	Power	Transfers	Twisting	Weight	Strength	Safety factor
SA87DVE100LS4	258.18	2.2KW	5.50rpm	2700N.m	132kg	27000N	0.85
SA87DVE100LS4	222.40	2.2KW	6.40rpm	2360N.m	132kg	27800N	0.95
SA87DVE100LS4	202.96	2.2KW	7.00rpm	2170N.m	132kg	28100N	1.05
SA87DVE100LS4	180.00	2.2KW	7.90rpm	1940N.m	132kg	28500N	1.15
SA87DVE100LS4	151.30	2.2KW	9.40rpm	1650N.m	132kg	29000N	1.30
SA87DVE100LS4	139.05	2.2KW	10.0rpm	1530N.m	132kg	29100N	1.35
SA87DVE100LS4	123.48	2.2KW	12.0rpm	1370N.m	132kg	29300N	1.50
SA87DVE100LS4	110.40	2.2KW	13.0rpm	1230N.m	132kg	29500N	1.60
SA87DVE100LS4	99.26	2.2KW	14.0rpm	1120N.m	132kg	29600N	1.75
SA87DVE100LS4	86.15	2.2KW	17.0rpm	1050N.m	132kg	29700N	1.90
SA87DVE100LS4	81.76	2.2KW	17.0rpm	980N.m	132kg	29600N	1.50
SA87DVE100LS4	77.14	2.2KW	18.0rpm	910N.m	132kg	29800N	2.10
SA87DVE100LS4	70.43	2.2KW	20.0rpm	880N.m	132kg	29800N	1.75
SA87DVE100LS4	64.27	2.2KW	22.0rpm	830N.m	132kg	29800N	1.90
SA87DVE100LS4	57.00	2.2KW	25.0rpm	740N.m	132kg	29900N	2.20

Sa87dve100lc4 deviatorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

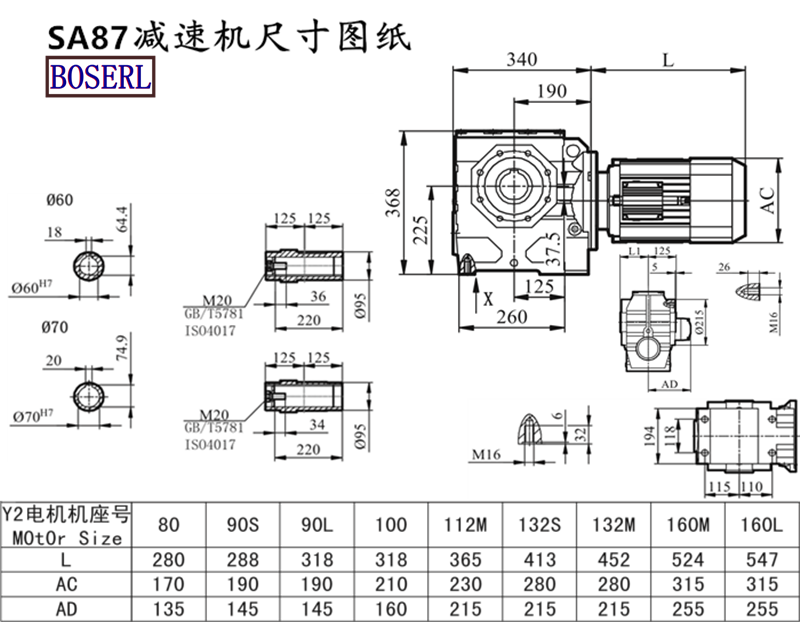

Sa87dve100lc4 deviatorInstall size drawings

wireless image_2020525095000.png

Sa87dve100lc4 deviatorProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
