SA97DR132MC4Detailed Information

SA97DR132MC4
prevnext

SA97DR132MC4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 1. 1 kw camera-reducing power unit _sa97dr132mc4_ sa97dr132ml4

SA97DR132MC4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA97DR132MC4105.71
7.5KW14.0rpm4050N.m
243kg33100N0.85
SA97DR132MC489.607.5KW16.0rpm3460N.m243kg34200N0.95
SA97DR132MC478.267.5KW19.0rpm3040N.m243kg34900N1.00
SA97DR132MC465.457.5KW22.0rpm2560N.m243kg35500N1.15
SA97DR132MC471.437.5KW21.0rpm3110N.m243kg34800N1.05
SA97DR132MC460.597.5KW24.0rpm2650N.m243kg35400N1.25
SA97DR132MC455.797.5KW26.0rpm2450N.m243kg35700N1.35
SA97DR132MC449.877.5KW29.0rpm2190N.m243kg36000N
1.50
SA97DR132MC444.897.5KW33.0rpm1980N.m243kg36200N1.65
SA97DR132MC440.657.5KW36.0rpm1800N.m243kg36300N1.85
SA97DR132MC436.057.5KW41.0rpm1600N.m243kg36000N2.10
SA97DR132MC432.607.5KW45.0rpm1450N.m243kg35300N2.20
SA97DR132MC426.397.5KW56.0rpm1200N.m243kg31900N2.20
SA97DR132MC423.597.5KW62.0rpm1080N.m243kg31200N2.40
SA97DR132MC421.237.5KW69.0rpm970N.m243kg30600N2.70
SA97DR132MC419.237.5KW76.0rpm880N.m243kg30000N2.90

SA97DR132ML4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA97DR132ML4105.71
7.5KW14.0rpm4050N.m
243kg33100N0.85
SA97DR132ML489.607.5KW16.0rpm3460N.m243kg34200N0.95
SA97DR132ML478.267.5KW19.0rpm3040N.m243kg34900N1.00
SA97DR132ML465.457.5KW22.0rpm2560N.m243kg35500N1.15
SA97DR132ML471.437.5KW21.0rpm3110N.m243kg34800N1.05
SA97DR132ML460.597.5KW24.0rpm2650N.m243kg35400N1.25
SA97DR132ML455.797.5KW26.0rpm2450N.m243kg35700N1.35
SA97DR132ML449.877.5KW29.0rpm2190N.m243kg36000N
1.50
SA97DR132ML444.897.5KW33.0rpm1980N.m243kg36200N1.65
SA97DR132ML440.657.5KW36.0rpm1800N.m243kg36300N1.85
SA97DR132ML436.057.5KW41.0rpm1600N.m243kg36000N2.10
SA97DR132ML432.607.5KW45.0rpm1450N.m243kg35300N2.20
SA97DR132ML426.397.5KW56.0rpm1200N.m243kg31900N2.20
SA97DR132ML423.597.5KW62.0rpm1080N.m243kg31200N2.40
SA97DR132ML421.237.5KW69.0rpm970N.m243kg30600N2.70
SA97DR132ML419.237.5KW76.0rpm880N.m243kg30000N2.90

Sa97dr132mc4 motor reduction machineType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

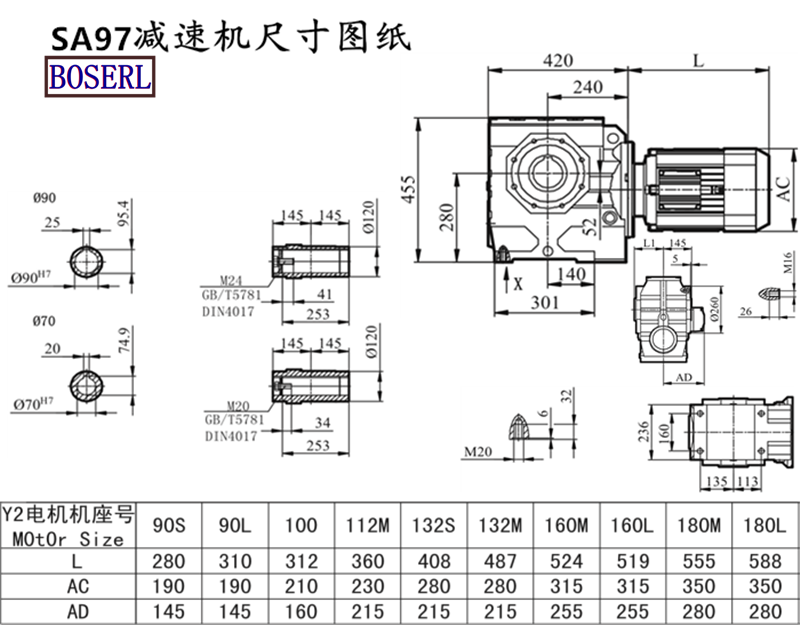

Sa97dr132mc4 motor reduction machineInstall size drawings


wireless image_2020525095000.png

Sa97dr132mc4 motor reduction machineProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:  1. 1 kw-bed-down power unit sa97dr132mc4sasa97dr132ml4
tags： 1. 1 kw-bed-down power unit sa97dr132mc4sasa97dr132ml4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
SA97DR132MC4减速机样本 Click to download
SA97DR132MC4减速机三维图纸 Click to download
