SA97DT100M4Detailed Information

SA97DT100M4
prevnext

SA97DT100M4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 55 kilowatt-reducing motor unit _sa97dt100m4_sa97dve100m4

SA97DT100M4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA97DT100M4286.402.2KW5.00rpm3090N.m202Kg34800N1.30
SA97DT100M4262.222.2KW5.40rpm2850N.m202Kg35200N1.40
SA97DT100M4231.672.2KW6.20rpm2540N.m202Kg35600N1.55
SA97DT100M4196.522.2KW7.20rpm2180N.m202Kg36000N1.85
SA97DT100M4180.952.2KW7.90rpm2020N.m202Kg36100N1.95
SA97DT100M4161.742.2KW8.80rpm1820N.m202Kg36300N2.10
SA97DT100M4145.602.2KW9.80rpm1650N.m202Kg36500N2.20
SA97DT100M4131.852.2KW11.0rpm1500N.m202Kg36600N2.40
SA97DT100M4116.922.2KW12.0rpm1340N.m202Kg36700N2.60
SA97DT100M4105.712.2KW13.0rpm1220N.m202Kg36800N2.80
SA97DT100M489.602.2KW16.0rpm1040N.m202Kg36900N3.10

SA97DVE100M4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SA97DVE100M4286.402.2KW5.00rpm3090N.m202Kg34800N1.30
SA97DVE100M4262.222.2KW5.40rpm2850N.m202Kg35200N1.40
SA97DVE100M4231.672.2KW6.20rpm2540N.m202Kg35600N1.55
SA97DVE100M4196.522.2KW7.20rpm2180N.m202Kg36000N1.85
SA97DVE100M4180.952.2KW7.90rpm2020N.m202Kg36100N1.95
SA97DVE100M4161.742.2KW8.80rpm1820N.m202Kg36300N2.10
SA97DVE100M4145.602.2KW9.80rpm1650N.m202Kg36500N2.20
SA97DVE100M4131.852.2KW11.0rpm1500N.m202Kg36600N2.40
SA97DVE100M4116.922.2KW12.0rpm1340N.m202Kg36700N2.60
SA97DVE100M4105.712.2KW13.0rpm1220N.m202Kg36800N2.80
SA97DVE100M489.602.2KW16.0rpm1040N.m202Kg36900N3.10

Sa97dt100m4 gear deviator motorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

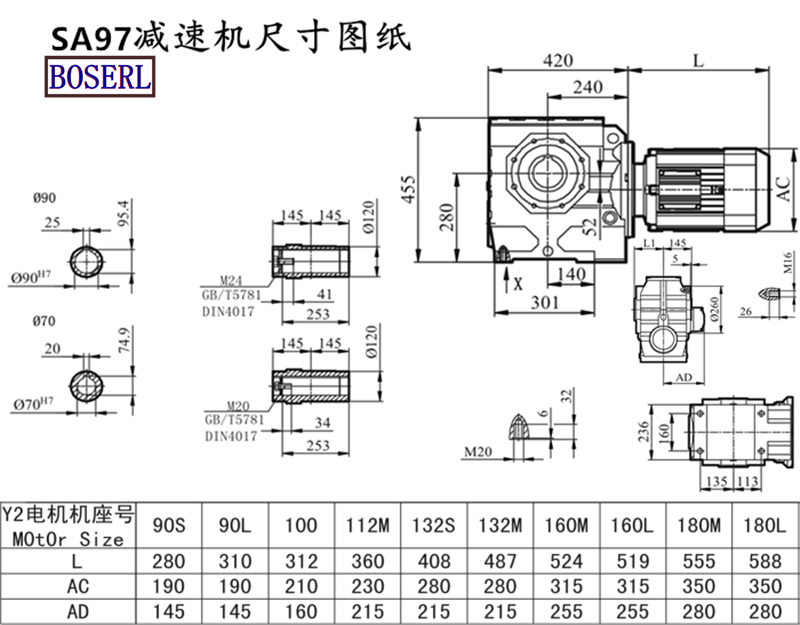

Sa97dt100m4 gear deviator motorInstall size drawings


wireless image_2020525095000.png

Sa97dt100m4 gear deviator motorProduction plant display: three days' appointment for the factory

Level-IIreducing machinePresentation of application cases:

Bevel gear reducer,Helical gear reducer,worm gear motor speed reducer Geared motor

SA37 gearbox, SA47 gearbox, SA57 gearbox, SA67 gearbox, SA77 gearbox, SA87 gearbox, SA97 Gear Reducer Servo motor reducer

SA Series gear reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:  55 kilowatt-lift-reducing power plant  sa97dt100m4 sa97dve100m4
tags： 55 kilowatt-lift-reducing power plant    sa97dt100m4   sa97dve100m4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
SA97DT100M4减速机样本 Click to download
SA97DT100M4减速机三维图纸 Click to download
