SAF37DM80MK4Detailed Information
Keyword: 30 kilowattreducing motor unit _saf37dm80mk4_saf37dr80n4
SAF37DM80MK4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF37DM80MK4 | 30.68 | 0.55KW | 45.0rpm | 93N.m | 22kg | 2680N | 0.80 |
| SAF37DM80MK4 | 28.76 | 0.55KW | 48.0rpm | 87N.m | 22kg | 2660N | 0.85 |
| SAF37DM80MK4 | 25.38 | 0.55KW | 54.0rpm | 78N.m | 22kg | 2630N | 0.95 |
| SAF37DM80MK4 | 22.50 | 0.55KW | 61.0rpm | 69N.m | 22kg | 2590N | 1.05 |
| SAF37DM80MK4 | 15.53 | 0.55KW | 89.0rpm | 52N.m | 22kg | 2230N | 0.95 |
| SAF37DM80MK4 | 13.39 | 0.55KW | 103rpm | 45N.m | 22kg | 2190N | 1.10 |
| SAF37DM80MK4 | 19.13 | 0.55KW | 72.0rpm | 60N.m | 22kg | 2530N | 1.20 |
| SAF37DM80MK4 | 12.48 | 0.55KW | 111rpm | 42N.m | 22kg | 2170N | 1.15 |
| SAF37DM80MK4 | 10.91 | 0.55KW | 126rpm | 37N.m | 22kg | 2130N | 1.30 |
| SAF37DM80MK4 | 10.23 | 0.55KW | 135rpm | 35N.m | 22kg | 2110N | 1.35 |
| SAF37DM80MK4 | 9.02 | 0.55KW | 153rpm | 31N.m | 22kg | 2060N | 1.50 |
| SAF37DM80MK4 | 8.00 | 0.55KW | 172rpm | 27N.m | 22kg | 2010N | 1.65 |
| SAF37DM80MK4 | 6.80 | 0.55KW | 203rpm | 23N.m | 22kg | 1950N | 1.85 |
SAF37DR80N4Geared motor reducer parameters:
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF37DR80N4 | 19.13 | 0.75KW | 75.0rpm | 78N.m | 23kg | 2260N | 0.90 |
| SAF37DR80N4 | 12.48 | 0.75KW | 115rpm | 55N.m | 23kg | 1930N | 0.85 |
| SAF37DR80N4 | 10.91 | 0.75KW | 132rpm | 48N.m | 23kg | 1910N | 1.00 |
| SAF37DR80N4 | 10.23 | 0.75KW | 140rpm | 46N.m | 23kg | 1900N | 1.05 |
| SAF37DR80N4 | 9.02 | 0.75KW | 159rpm | 40N.m | 23kg | 1880N | 1.15 |
| SAF37DR80N4 | 8.00 | 0.75KW | 179rpm | 36N.m | 23kg | 1850N | 1.25 |
| SAF37DR80N4 | 6.80 | 0.75KW | 211rpm | 31N.m | 23kg | 1800N | 1.40 |
Saf37dm80mk4 deviatorType:
S. Dr. bottom foot, slash gearServo motor reducer
Sa. Dr. installation of a sledge snail brake on the hollow axle
Saf. Dr. b5 installation snail
Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails
S. F. Dr. is thereducing machine for b5 snail snails
Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock
Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle
Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

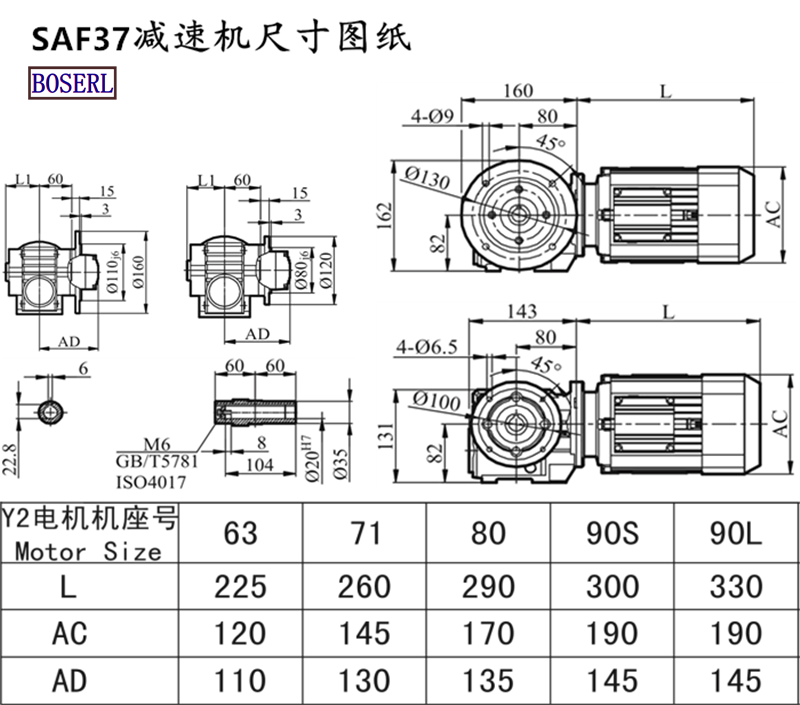

Saf37dm80mk4 deviatorInstall size drawings
Saf37dm80mk4 deviatorProduction plant display: three days' appointment for the factory
Gearbox motorPresentation of application cases:
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
