SAF37DRN63S4Detailed Information

SAF37DRN63S4
prevnext

SAF37DRN63S4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 75kw retrenchor unit

SAF37DRN63S4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DRN63S4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
SAF37DRN63S4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
SAF37DRN63S4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
SAF37DRN63S4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
SAF37DRN63S498.800.12KW14.0rpm49N.m12.5kg3000N1.75
SAF37DRN63S486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
SAF37DRN63S480.960.12KW17.0rpm41N.m12.5kg3000N2.10
SAF37DRN63S471.440.12KW19.0rpm37N.m12.5kg3000N2.30
SAF37DRN63S463.330.12KW22.0rpm35N.m12.5kg3000N2.30
SAF37DRN63S455.930.12KW25.0rpm33N.m12.5kg3000N2.50
SAF37DRN63S451.300.12KW27.0rpm33N.m12.5kg3000N2.50
SAF37DRN63S443.680.12KW32.0rpm28N.m12.5kg3000N2.90
SAF37DRN63S437.660.12KW37.0rpm24N.m12.5kg3000N3.20
SAF37DRN63S435.100.12KW39.0rpm23N.m12.5kg3000N3.40
SAF37DRN63S430.680.12KW45.0rpm20N.m12.5kg3000N3.70
SAF37DRN63S428.760.12KW48.0rpm19N.m12.5kg3000N3.90
SAF37DRN63S425.380.12KW54.0rpm17N.m12.5kg3000N4.40
SAF37DRN63S422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
SAF37DRN63S419.890.12KW69.0rpm14N.m12.5kg3000N3.60
SAF37DRN63S418.240.12KW76.0rpm13N.m12.5kg3000N3.90
SAF37DRN63S415.530.12KW89.0rpm11N.m12.5kg2870N4.40

SAF37DT63S4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DT63S4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
SAF37DT63S4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
SAF37DT63S4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
SAF37DT63S4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
SAF37DT63S498.800.12KW14.0rpm49N.m12.5kg3000N1.75
SAF37DT63S486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
SAF37DT63S480.960.12KW17.0rpm41N.m12.5kg3000N2.10
SAF37DT63S471.440.12KW19.0rpm37N.m12.5kg3000N2.30
SAF37DT63S463.330.12KW22.0rpm35N.m12.5kg3000N2.30
SAF37DT63S455.930.12KW25.0rpm33N.m12.5kg3000N2.50
SAF37DT63S451.300.12KW27.0rpm33N.m12.5kg3000N2.50
SAF37DT63S443.680.12KW32.0rpm28N.m12.5kg3000N2.90
SAF37DT63S437.660.12KW37.0rpm24N.m12.5kg3000N3.20
SAF37DT63S435.100.12KW39.0rpm23N.m12.5kg3000N3.40
SAF37DT63S430.680.12KW45.0rpm20N.m12.5kg3000N3.70
SAF37DT63S428.760.12KW48.0rpm19N.m12.5kg3000N3.90
SAF37DT63S425.380.12KW54.0rpm17N.m12.5kg3000N4.40
SAF37DT63S422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
SAF37DT63S419.890.12KW69.0rpm14N.m12.5kg3000N3.60
SAF37DT63S418.240.12KW76.0rpm13N.m12.5kg3000N3.90
SAF37DT63S415.530.12KW89.0rpm11N.m12.5kg2870N4.40

Saf37drn63s4reducing motorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

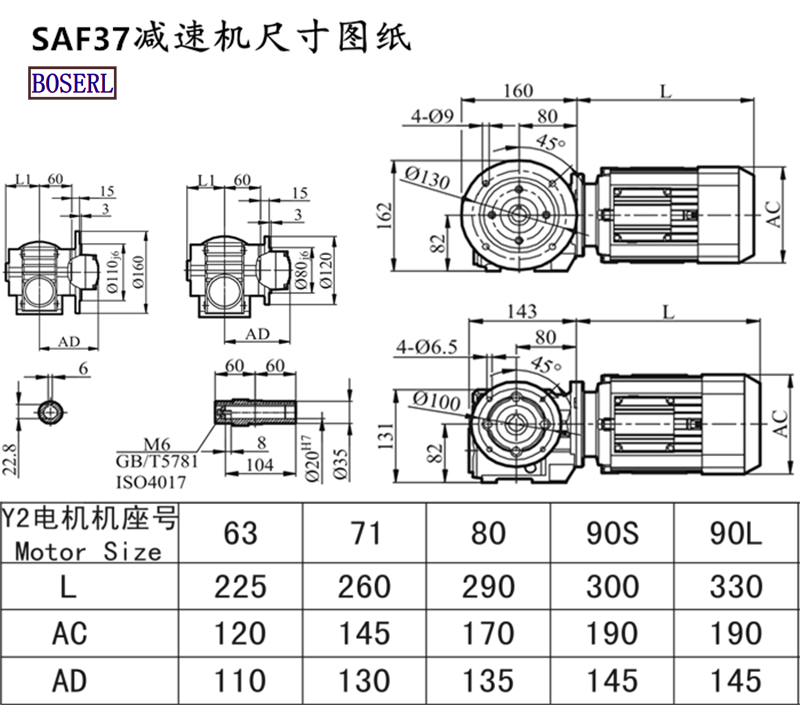

Saf37drn63s4reducing motorInstall size drawings


wireless image_2020525095000.png

Saf37drn63s4reducing motorProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:  75kw speed retort power detort one unit  saf37drn63s4 saf37dt63s4
tags： 75kw speed retort power detort one unit    saf37drn63s4   saf37dt63s4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
SAF37DRN63S4减速机样本 Click to download
SAF37DRN63S4减速机三维图纸 Click to download
