SAF37DRS63L4Detailed Information

SAF37DRS63L4
prevnext

SAF37DRS63L4

TEL：Email:[email protected]
  1. 详细信息

Keywords: 90 kwhreducing unit _ saf37drs63l4_saf37dr63l4

SAF37DRS63L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DRS63L4157.430.18KW8.40rpm115N.m13kg3000N0.80
SAF37DRS63L4144.400.18KW9.10rpm107N.m13kg3000N0.85
SAF37DRS63L4122.940.18KW11.0rpm93N.m13kg3000N1.00
SAF37DRS63L4106.000.18KW12.0rpm82N.m13kg3000N1.10
SAF37DRS63L498.800.18KW13.0rpm77N.m13kg3000N1.15
SAF37DRS63L486.36
0.18KW15.0rpm68N.m13kg3000N1.25
SAF37DRS63L480.960.18KW16.0rpm64N.m13kg3000N1.30
SAF37DRS63L471.440.18KW18.0rpm58N.m13kg3000N1.45
SAF37DRS63L463.330.18KW21.0rpm55N.m13kg3000N1.45
SAF37DRS63L455.930.18KW24.0rpm52N.m13kg3000N1.60
SAF37DRS63L451.300.18KW26.0rpm51N.m13kg3000N1.60
SAF37DRS63L443.680.18KW30.0rpm44N.m13kg3000N1.85
SAF37DRS63L437.660.18KW35.0rpm38N.m13kg3000N2.10
SAF37DRS63L435.100.18KW38.0rpm36N.m13kg3000N2.20
SAF37DRS63L430.680.18KW43.0rpm32N.m13kg3000N2.40
SAF37DRS63L428.760.18KW46.0rpm30N.m13kg3000N2.50
SAF37DRS63L425.380.18KW52.0rpm26N.m13kg3000N2.80
SAF37DRS63L422.50
0.18KW59.0rpm24N.m13kg3000N3.10
SAF37DRS63L419.890.18KW66.0rpm22N.m13kg3000N2.30
SAF37DRS63L418.240.18KW72.0rpm21N.m13kg2940N2.50
SAF37DRS63L415.530.18KW85.0rpm18N.m13kg2810N
2.80
SAF37DRS63L413.390.18KW99.0rpm15N.m13kg2700N3.20
SAF37DRS63L412.480.18KW106rpm14N.m13kg2650N3.40
SAF37DRS63L410.910.18KW121rpm13N.m13kg2550N3.80
SAF37DRS63L410.230.18KW129rpm12N.m13kg2500N4.00

SAF37DR63L4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DR63L4157.430.18KW8.40rpm115N.m13kg3000N0.80
SAF37DR63L4144.400.18KW9.10rpm107N.m13kg3000N0.85
SAF37DR63L4122.940.18KW11.0rpm93N.m13kg3000N1.00
SAF37DR63L4106.000.18KW12.0rpm82N.m13kg3000N1.10
SAF37DR63L498.800.18KW13.0rpm77N.m13kg3000N1.15
SAF37DR63L486.36
0.18KW15.0rpm68N.m13kg3000N1.25
SAF37DR63L480.960.18KW16.0rpm64N.m13kg3000N1.30
SAF37DR63L471.440.18KW18.0rpm58N.m13kg3000N1.45
SAF37DR63L463.330.18KW21.0rpm55N.m13kg3000N1.45
SAF37DR63L455.930.18KW24.0rpm52N.m13kg3000N1.60
SAF37DR63L451.300.18KW26.0rpm51N.m13kg3000N1.60
SAF37DR63L443.680.18KW30.0rpm44N.m13kg3000N1.85
SAF37DR63L437.660.18KW35.0rpm38N.m13kg3000N2.10
SAF37DR63L435.100.18KW38.0rpm36N.m13kg3000N2.20
SAF37DR63L430.680.18KW43.0rpm32N.m13kg3000N2.40
SAF37DR63L428.760.18KW46.0rpm30N.m13kg3000N2.50
SAF37DR63L425.380.18KW52.0rpm26N.m13kg3000N2.80
SAF37DR63L422.50
0.18KW59.0rpm24N.m13kg3000N3.10
SAF37DR63L419.890.18KW66.0rpm22N.m13kg3000N2.30
SAF37DR63L418.240.18KW72.0rpm21N.m13kg2940N2.50
SAF37DR63L415.530.18KW85.0rpm18N.m13kg2810N
2.80
SAF37DR63L413.390.18KW99.0rpm15N.m13kg2700N3.20
SAF37DR63L412.480.18KW106rpm14N.m13kg2650N3.40
SAF37DR63L410.910.18KW121rpm13N.m13kg2550N3.80
SAF37DR63L410.230.18KW129rpm12N.m13kg2500N4.00

Saf37drrs63l4 motor forreducing devicesType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

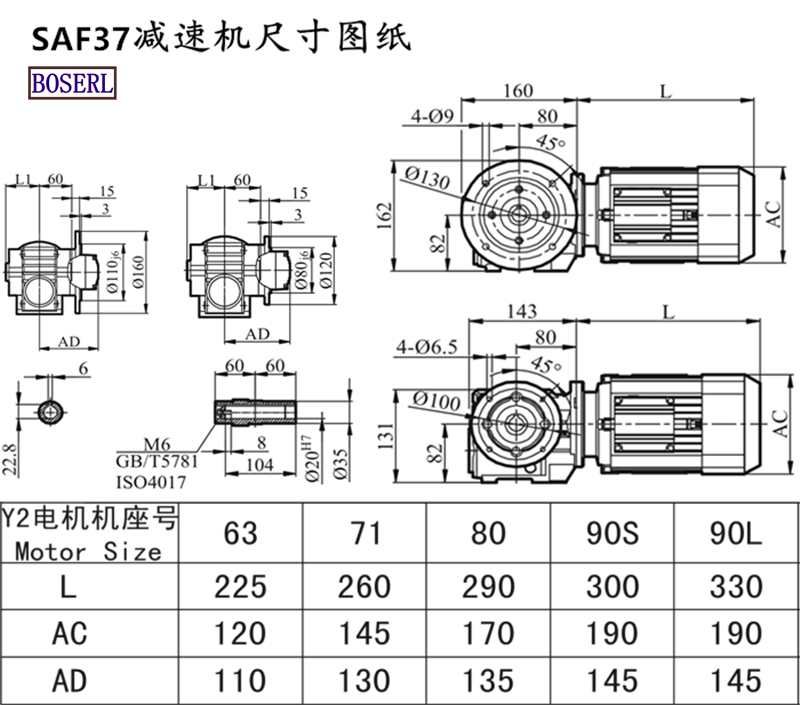

Saf37drrs63l4 motor forreducing devicesInstall size drawings


wireless image_2020525095000.png

Saf37drrs63l4 motor forreducing devicesProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:  90 kilowatts of speed-reducing motor unit  saf37drs63l4 saf37dr63l4
tags： 90 kilowatts of speed-reducing motor unit    saf37drs63l4   saf37dr63l4

Documentation related to this product / Related DownLoad

Product Document Name Click to download
SAF37DRS63L4减速机样本 Click to download
SAF37DRS63L4减速机三维图纸 Click to download
