SAF37DT63MS4Detailed Information

SAF37DT63MS4
prevnext

SAF37DT63MS4

TEL：Email:[email protected]
  1. 详细信息

Keyword: 37 kwhreducing unit _ saf37dt63ms4_saf37dv63ms4

SAF37DT63MS4Geared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DT63MS4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
SAF37DT63MS4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
SAF37DT63MS4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
SAF37DT63MS4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
SAF37DT63MS498.800.12KW14.0rpm49N.m12.5kg3000N1.75
SAF37DT63MS486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
SAF37DT63MS480.960.12KW17.0rpm41N.m12.5kg3000N2.10
SAF37DT63MS471.440.12KW19.0rpm37N.m12.5kg3000N2.30
SAF37DT63MS463.330.12KW22.0rpm35N.m12.5kg3000N2.30
SAF37DT63MS455.930.12KW25.0rpm33N.m12.5kg3000N2.50
SAF37DT63MS451.300.12KW27.0rpm33N.m12.5kg3000N2.50
SAF37DT63MS443.680.12KW32.0rpm28N.m12.5kg3000N2.90
SAF37DT63MS437.660.12KW37.0rpm24N.m12.5kg3000N3.20
SAF37DT63MS435.100.12KW39.0rpm23N.m12.5kg3000N3.40
SAF37DT63MS430.680.12KW45.0rpm20N.m12.5kg3000N3.70
SAF37DT63MS428.760.12KW48.0rpm19N.m12.5kg3000N3.90
SAF37DT63MS425.380.12KW54.0rpm17N.m12.5kg3000N4.40
SAF37DT63MS422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
SAF37DT63MS419.890.12KW69.0rpm14N.m12.5kg3000N3.60
SAF37DT63MS418.240.12KW76.0rpm13N.m12.5kg3000N3.90
SAF37DT63MS415.530.12KW89.0rpm11N.m12.5kg2870N4.40

SAF37DV63MS4Geared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37DV63MS4157.430.12KW8.80rpm74N.m12.5kg3000N1.25
SAF37DV63MS4144.400.12KW9.60rpm68N.m12.5kg3000N1.35
SAF37DV63MS4122.940.12KW11.0rpm60N.m12.5kg3000N1.55
SAF37DV63MS4106.000.12KW13.0rpm52N.m12.5kg3000N1.70
SAF37DV63MS498.800.12KW14.0rpm49N.m12.5kg3000N1.75
SAF37DV63MS486.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
SAF37DV63MS480.960.12KW17.0rpm41N.m12.5kg3000N2.10
SAF37DV63MS471.440.12KW19.0rpm37N.m12.5kg3000N2.30
SAF37DV63MS463.330.12KW22.0rpm35N.m12.5kg3000N2.30
SAF37DV63MS455.930.12KW25.0rpm33N.m12.5kg3000N2.50
SAF37DV63MS451.300.12KW27.0rpm33N.m12.5kg3000N2.50
SAF37DV63MS443.680.12KW32.0rpm28N.m12.5kg3000N2.90
SAF37DV63MS437.660.12KW37.0rpm24N.m12.5kg3000N3.20
SAF37DV63MS435.100.12KW39.0rpm23N.m12.5kg3000N3.40
SAF37DV63MS430.680.12KW45.0rpm20N.m12.5kg3000N3.70
SAF37DV63MS428.760.12KW48.0rpm19N.m12.5kg3000N3.90
SAF37DV63MS425.380.12KW54.0rpm17N.m12.5kg3000N4.40
SAF37DV63MS422.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
SAF37DV63MS419.890.12KW69.0rpm14N.m12.5kg3000N3.60
SAF37DV63MS418.240.12KW76.0rpm13N.m12.5kg3000N3.90
SAF37DV63MS415.530.12KW89.0rpm11N.m12.5kg2870N4.40

Saf37dt63ms4 deviation motorType:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

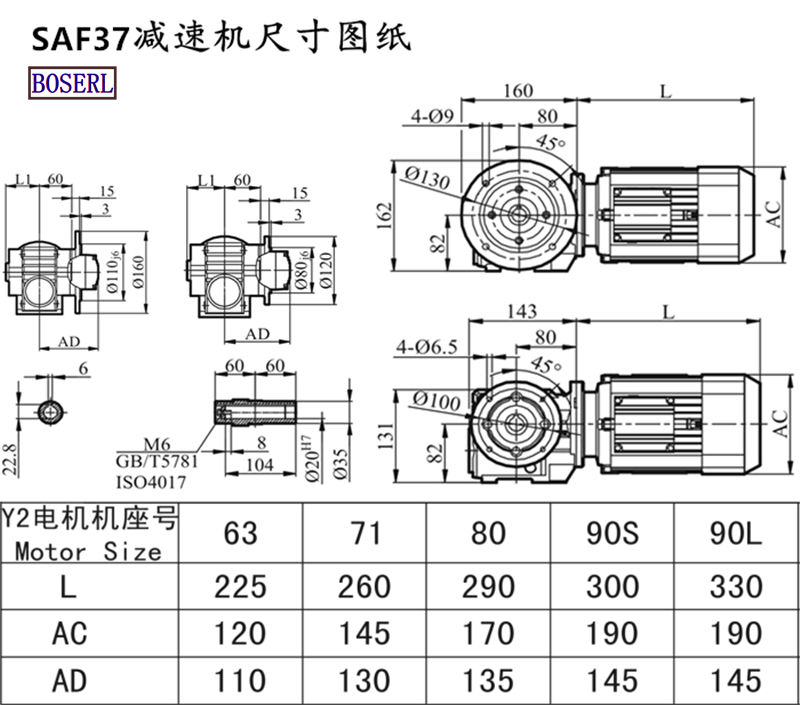

Saf37dt63ms4 deviation motorInstall size drawings


wireless image_2020525095000.png

Saf37dt63ms4 deviation motorProduction plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
