Saf37 speed reduction motorDetailed Information

Saf37 speed reduction motor
prevnext

Saf37 speed reduction motor

TEL：Email:[email protected]
  1. 详细信息

Keyword: saf37 deviation engine_saf37y012kw_saf37y0. 18kw_saf37 deviation machine_saf37 deviation plant

SAF37Y0.12KWGeared motor reducer parameters：

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37Y0.12KW157.430.12KW8.80rpm74N.m12.5kg3000N1.25
SAF37Y0.12KW144.400.12KW9.60rpm68N.m12.5kg3000N1.35
SAF37Y0.12KW122.940.12KW11.0rpm60N.m12.5kg3000N1.55
SAF37Y0.12KW106.000.12KW13.0rpm52N.m12.5kg3000N1.70
SAF37Y0.12KW98.800.12KW14.0rpm49N.m12.5kg3000N1.75
SAF37Y0.12KW86.36
0.12KW16.0rpm44N.m12.5kg3000N1.95
SAF37Y0.12KW80.960.12KW17.0rpm41N.m12.5kg3000N2.10
SAF37Y0.12KW71.440.12KW19.0rpm37N.m12.5kg3000N2.30
SAF37Y0.12KW63.330.12KW22.0rpm35N.m12.5kg3000N2.30
SAF37Y0.12KW55.930.12KW25.0rpm33N.m12.5kg3000N2.50
SAF37Y0.12KW51.300.12KW27.0rpm33N.m12.5kg3000N2.50
SAF37Y0.12KW43.680.12KW32.0rpm28N.m12.5kg3000N2.90
SAF37Y0.12KW37.660.12KW37.0rpm24N.m12.5kg3000N3.20
SAF37Y0.12KW35.100.12KW39.0rpm23N.m12.5kg3000N3.40
SAF37Y0.12KW30.680.12KW45.0rpm20N.m12.5kg3000N3.70
SAF37Y0.12KW28.760.12KW48.0rpm19N.m12.5kg3000N3.90
SAF37Y0.12KW25.380.12KW54.0rpm17N.m12.5kg3000N4.40
SAF37Y0.12KW22.50
0.12KW61.0rpm15N.m12.5kg3000N4.80
SAF37Y0.12KW19.890.12KW69.0rpm14N.m12.5kg3000N3.60
SAF37Y0.12KW18.240.12KW76.0rpm13N.m12.5kg3000N3.90
SAF37Y0.12KW15.530.12KW89.0rpm11N.m12.5kg2870N4.40

SAF37Y0.18KWGeared motor reducer parameters:

ModelSlowdown ratioPowerTransfersTwistingWeightStrengthSafety factor
SAF37Y0.18KW157.430.18KW8.40rpm115N.m13kg3000N0.80
SAF37Y0.18KW144.400.18KW9.10rpm107N.m13kg3000N0.85
SAF37Y0.18KW122.940.18KW11.0rpm93N.m13kg3000N1.00
SAF37Y0.18KW106.000.18KW12.0rpm82N.m13kg3000N1.10
SAF37Y0.18KW98.800.18KW13.0rpm77N.m13kg3000N1.15
SAF37Y0.18KW86.36
0.18KW15.0rpm68N.m13kg3000N1.25
SAF37Y0.18KW80.960.18KW16.0rpm64N.m13kg3000N1.30
SAF37Y0.18KW71.440.18KW18.0rpm58N.m13kg3000N1.45
SAF37Y0.18KW63.330.18KW21.0rpm55N.m13kg3000N1.45
SAF37Y0.18KW55.930.18KW24.0rpm52N.m13kg3000N1.60
SAF37Y0.18KW51.300.18KW26.0rpm51N.m13kg3000N1.60
SAF37Y0.18KW43.680.18KW30.0rpm44N.m13kg3000N1.85
SAF37Y0.18KW37.660.18KW35.0rpm38N.m13kg3000N2.10
SAF37Y0.18KW35.100.18KW38.0rpm36N.m13kg3000N2.20
SAF37Y0.18KW30.680.18KW43.0rpm32N.m13kg3000N2.40
SAF37Y0.18KW28.760.18KW46.0rpm30N.m13kg3000N2.50
SAF37Y0.18KW25.380.18KW52.0rpm26N.m13kg3000N2.80
SAF37Y0.18KW22.50
0.18KW59.0rpm24N.m13kg3000N3.10
SAF37Y0.18KW19.890.18KW66.0rpm22N.m13kg3000N2.30
SAF37Y0.18KW18.240.18KW72.0rpm21N.m13kg2940N2.50
SAF37Y0.18KW15.530.18KW85.0rpm18N.m13kg2810N
2.80
SAF37Y0.18KW13.390.18KW99.0rpm15N.m13kg2700N3.20
SAF37Y0.18KW12.480.18KW106rpm14N.m13kg2650N3.40
SAF37Y0.18KW10.910.18KW121rpm13N.m13kg2550N3.80
SAF37Y0.18KW10.230.18KW129rpm12N.m13kg2500N4.00

Saf37 reduction motor Type:

S. Dr. bottom foot, slash gearServo motor reducer

Sa. Dr. installation of a sledge snail brake on the hollow axle

Saf. Dr. b5 installation snail

Saz. Dr. is thereducing machine for the b14-franco-axis with snail snails snails

S. F. Dr. is thereducing machine for b5 snail snails

Sh. Dr. Is areducing machine with an oscillated colar snail on an empty axle lock

Shf. Dr. Is areducing machine with a slashed snail snail on the b5 axle

Shz. Dr. is theretarder for the b14 axle locker with a sledge snail snail

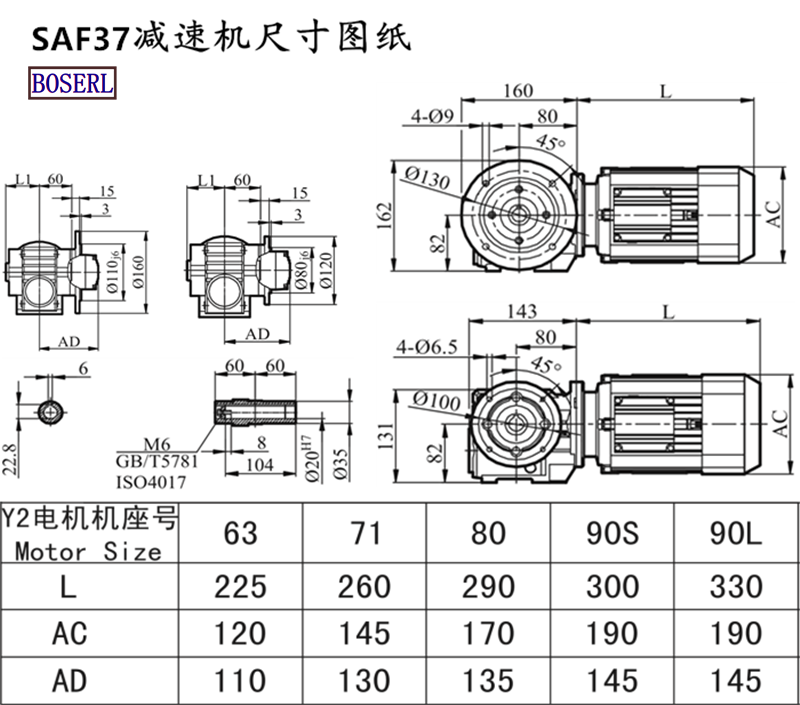

Saf37 reduction motor Install size drawings


wireless image_2020525095000.png

Saf37 reduction motor Production plant display: three days' appointment for the factory

Gearbox motorPresentation of application cases:

Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor

SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer

SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW



标签:  Saf37 speed reduction engine  saf37y 0. 12 kw saf37y 0. 18 kw saf37 speed reduction machine  saf37 speed reduction factory
tags： Saf37 speed reduction engine    saf37y 0. 12 kw   saf37y 0. 18 kw   saf37 speed reduction machine    saf37 speed reduction factory

Documentation related to this product / Related DownLoad

Product Document Name Click to download
SAF37减速机电动机样本 Click to download
SAF37减速机电动机三维图纸 Click to download
