SAF57R17DRS63M4Detailed Information
Keywords: 7. 5 kw power and how big a veloctivereducing machine _saf57r17drs63m4_saf57r17dt71m4
SAF57R17DRS63M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DRS63M4 | 655 | 0.12KW | 2.10r/min | 325N.m | 23.5kg | 6800N | 0.90 |
| SAF57R17DRS63M4 | 574 | 0.12KW | 2.40r/min | 285N.m | 23.5kg | 7200N | 1.05 |
| SAF57R17DRS63M4 | 506 | 0.12KW | 2.70r/min | 250N.m | 23.5kg | 7480N | 1.20 |
| SAF57R17DRS63M4 | 438 | 0.12KW | 3.20r/min | 215N.m | 23.5kg | 7700N | 1.40 |
| SAF57R17DRS63M4 | 388 | 0.12KW | 3.60r/min | 189N.m | 23.5kg | 7850N | 1.60 |
| SAF57R17DRS63M4 | 336 | 0.12KW | 4.10r/min | 169N.m | 23.5kg | 7950N | 1.80 |
| SAF57R17DRS63M4 | 294 | 0.12KW | 4.70r/min | 145N.m | 23.5kg | 8050N | 2.10 |
| SAF57R17DRS63M4 | 269 | 0.12KW | 5.10r/min | 139N.m | 23.5kg | 8070N | 2.20 |
SAF57R17DT71M4Geared motor reducer parameters：
| Model | Slowdown ratio | Power | Transfers | Twisting | Weight | Strength | Safety factor |
| SAF57R17DT71M4 | 340 | 0.25KW | 4.40r/min | 340N.m | 28kg | 6640N | 0.85 |
| SAF57R17DT71M4 | 320 | 0.25KW | 4.80r/min | 320N.m | 28kg | 6870N | 0.95 |
| SAF57R17DT71M4 | 275 | 0.25KW | 5.70r/min | 275N.m | 28kg | 7280N | 1.10 |
| SAF57R17DT71M4 | 245 | 0.25KW | 6.40r/min | 245N.m | 28kg | 7490N | 1.20 |
| SAF57R17DT71M4 | 187 | 0.25KW | 6.90r/min | 225N.m | 28kg | 7630N | 1.30 |
| SAF57R17DT71M4 | 165 | 0.25KW | 7.90r/min | 200N.m | 28kg | 7780N | 1.50 |
| SAF57R17DT71M4 | 131 | 0.25KW | 9.90r/min | 162N.m | 28kg | 7980N | 1.85 |
Saf57r17drrs63m4 motor deceleratorType:
S57r17drrs63m4 foot installation - slash gearServo motor reducer
Sa57r17drrs63m4 sky axis installation - tilt snail snail deviator
Saf57r17drs63m4 is thereducing machine for b5 installation snails
Saz57r17drs63m4 is a b14 flannel axle installation - a snail brake on snails
Sf57r17drrs63m4 is a b5-silver snail deviator
Sh57r17drs63m4 is an empty axle lock-drive installation - a snail brake machine
Shf57r17drs63m4 is a b5 franium axle locker installation - a snail braker
Shz57r17drrs63m4 is a b14 flannel axle locker installation - a sledge snail brake
Sa57/tr17drs63m4 rotation arm hollow axis installation -- scalding snails
Sh57/tr17drs63m4 is an axle lock-drive installation of a sledge snail
Sa57br17drrs63m4 foot hollow axis installation -- snail snail brakes
Sh57br17drrs63m4 foot hollow axle lock-drive installation -- snail brake
St57r17drrs63m4 solid axis output twister arm installation -- slasher snail brakes

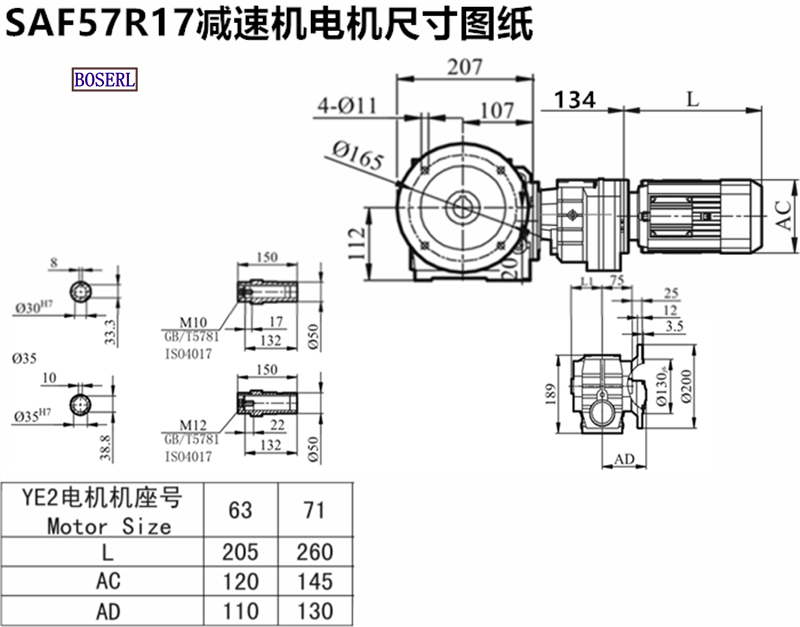

Saf57r17drrs63m4 motor deceleratorInstall size drawings
Saf57r17drrs63m4 motor deceleratorProduction plant display: three days' appointment for the factoryGearbox motor
Gearbox motor,Horizontal gear reducer motor,Ac gear reducer motor Geared motor
SAF Series : SAF37 gear reducer, SAF47 gear reducer, SAF57 gear reducer, SAF67 gear reducer, SAF77 gear reducer, SAF87 gear reducer, SAF97 Servo motor reducer
SAF Series reducers can be paired with variable frequency motors, brake motors, explosion-proof motors, servo motors, AC motors, DC motors, three-phase motors, and single-phase motors ranging from 0.12KW to 22KW
